HALF WAVE, FULL WAVE & BRIDGE RECTIFIER APPARATUS WITH ALUMINUM PANEL & SQUARE METERS

Name: HALF WAVE, FULL WAVE & BRIDGE RECTIFIER APPARATUS WITH ALUMINUM PANEL & SQUARE METERS
Brand: EDUTEK INSTRUMENTATION
Price: 1200.0 INR
Availability: InStock

Price 1200.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

HALF WAVE, FULL WAVE & BRIDGE RECTIFIER APPARATUS WITH ALUMINUM PANEL & SQUARE METERS Specification

Components
Inbuilt inductor having value of 200 MH on board. Load Resistance.

Usage
ENGINEERING ELECTRONICS INSTRUMENTS

Product Type
HALF WAVE, FULL WAVE & BRIDGE RECTIFIER APPARATUS WITH ALUMINUM PANEL & SQUARE METERS

Application
ENGINEERING ELECTRONICS INSTRUMENTS

Function
HALF WAVE, FULL WAVE & BRIDGE RECTIFIER APPARATUS WITH ALUMINUM PANEL & SQUARE METERS

Warranty
1 Year

Features
Current 4 PN Junction Diodes Filter Circuit Kit with Switch Selectable.

HALF WAVE, FULL WAVE & BRIDGE RECTIFIER APPARATUS WITH ALUMINUM PANEL & SQUARE METERS Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash on Delivery (COD), Cash Advance (CA), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C)

Packaging Details
Carton Box, Export Quality also Available

Main Export Market(s)
Asia, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001, 14001, CE

About HALF WAVE, FULL WAVE & BRIDGE RECTIFIER APPARATUS WITH ALUMINUM PANEL & SQUARE METERS

Specification:

HALF WAVE, FULL WAVE & BRIDGE RECTIFIER APPARATUS WITH ALUMINUM PANEL & SQUARE METERS

Instrument comprises inbuilt AC Power Supply 15-0-15V 2 meters Square MR65 to measure Output Voltage & Output

Current 4 PN Junction Diodes Filter Circuit Kit with Switch Selectable.

Inbuilt inductor having value of 200 MH on board. Load Resistance.

Versatile Rectifier Learning Kit

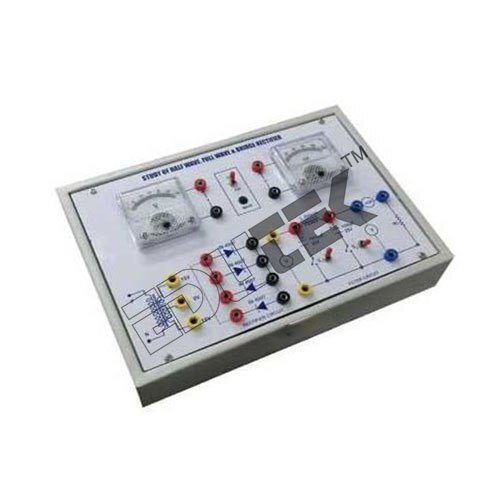

This apparatus is tailored for engineering education, enabling learners to study and compare half wave, full wave, and bridge rectifier circuits. With robust construction and clearly labeled components, it provides a conducive environment for understanding electronics fundamentals.

Key Features and Functionality

Equipped with an inbuilt 200 mH inductor and replaceable load resistance, this apparatus incorporates a 4 PN junction diodes filter circuit. The function selector switch allows users to effortlessly switch between different rectification modes, enhancing practical learning experiences.

Ideal for Electronics Labs

Engineered for academic and professional laboratories, this rectifier apparatus is designed for reliability and safety. The aluminum panel and square meters facilitate accurate measurement and observations during experiments, making it a trusted equipment for practical training.

FAQ's of HALF WAVE, FULL WAVE & BRIDGE RECTIFIER APPARATUS WITH ALUMINUM PANEL & SQUARE METERS:

Q: How does the switch-selectable feature improve learning with this rectifier apparatus?

A: The switch-selectable feature allows users to easily toggle between half wave, full wave, and bridge rectifier configurations. This facilitates comparison, practical experimentation, and a deeper understanding of rectification principles in real-time without needing to rewire the circuit.

Q: What components are included in the rectifier apparatus?

A: The apparatus includes an inbuilt 200 mH inductor, load resistance, current 4 PN junction diodes filter circuit, an aluminum panel, and square meters for current and voltage measurements. These components support a comprehensive study of rectification techniques.

Q: When should this rectifier apparatus be used in electronics education?

A: This apparatus should be used during laboratory sessions or demonstrations when teaching about AC to DC conversion, rectifier circuits, and filter circuits in engineering electronics courses. It supports both theoretical and practical aspects of the curriculum.

Q: Where is this rectifier apparatus typically utilized?

A: This device is commonly used in engineering colleges, universities, vocational training centers, and research laboratories across India. It is designed for educational and instructional usage in electronics labs.

Q: What is the benefit of the inbuilt 200 mH inductor in the kit?

A: The inbuilt 200 mH inductor functions as a filter, helping to smooth out ripples in the rectified output. This enables students to observe the improvement in DC quality when inductive filtering is applied, illustrating key concepts of power electronics.

Q: How does this apparatus assist in the practical learning process?

A: By offering a hands-on platform to construct and analyze different rectifier circuits, students gain practical experience, develop troubleshooting skills, and reinforce theoretical knowledge through direct measurement and observation.
