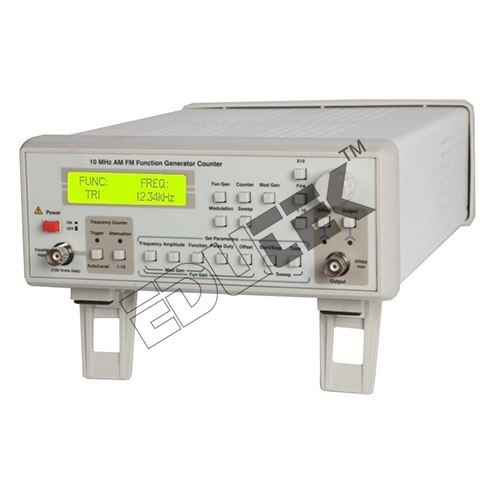

FUNCTION GENERATOR 0.1HZ-10MHZ WITH AM/FM & FREQUENCY COUNTER

Price 12000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

FUNCTION GENERATOR 0.1HZ-10MHZ WITH AM/FM & FREQUENCY COUNTER Specification

Components
Modulationof any signal by AM, FM and internal sweep

Usage
ENGINEERING ELECTRONICS EQUIPMENTS

Product Type
FUNCTION GENERATOR 0.1HZ-10MHZ WITH AM/FM & FREQUENCY COUNTER

Application
ENGINEERING ELECTRONICS EQUIPMENTS

Dimension (L*W*H)
Dimension: W-205H-95 D-292 mm Millimeter (mm)

Function
FUNCTIONGENERATOR 0.1HZ-10MHZ WITH AM/FM & FREQUENCY COUNTER

Weight
Weight: 2.4kg approx. Kilograms (kg)

Warranty
1 Year

Display Type
Digital

Features
Auto ranging40 MHz Frequency Counter 50 mVrms sensitivity for stable display of externalsignal frequency

FUNCTION GENERATOR 0.1HZ-10MHZ WITH AM/FM & FREQUENCY COUNTER Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash on Delivery (COD), Cash Advance (CA), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C)

Packaging Details
Carton Box, Export Quality also Available

Main Export Market(s)
Asia, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001, 14001, CE

About FUNCTION GENERATOR 0.1HZ-10MHZ WITH AM/FM & FREQUENCY COUNTER

Specification:

FUNCTIONGENERATOR 0.1HZ-10MHZ WITH AM/FM & FREQUENCY COUNTER

Frequency: 0.1Hz to 10 MHz

Type: Digital

Dimension: W-205H-95 D-292 mm

Weight: 2.4kg approx.

Modulationof any signal by AM, FM and internal sweep

Directdisplay of amplitude

Single pushfor selection functions

Variablepulse duty cycle adjustment

High signalpurity and constant amplitude flatness throughout the entire range

Auto ranging40 MHz Frequency Counter 50 mVrms sensitivity for stable display of externalsignal frequency

InternalModulation Generator

Backlit LCDfor display of frequency, mode, amplitude simultaneously

Square waverise time better than 70 ns

Versatile Signal Generation

This function generator covers a broad frequency range from 0.1Hz to 10MHz, making it suitable for a myriad of engineering and electronics experiments. It features AM and FM modulation, along with an internal sweep function, to fully support audio, RF, and communication engineering labs. The robust build and digital display ensure accurate and consistent results during rigorous usage.

Precision with Digital Display & Frequency Counter

The product is enhanced by a digital display and an autoranging frequency counter capable of measuring up to 40MHz. With a sensitivity of 50mVrms, the counter facilitates precise monitoring of external signals, ensuring reliable data acquisition. This device simplifies complex signal measurements, making it indispensable in both educational and professional environments.

Designed for Laboratory and Industrial Applications

With compact dimensions (W-205 mm, H-95 mm, D-292 mm) and weighing about 2.4 kg, the function generator is portable and easy to integrate into different lab setups. Manufactured in India, it is trusted by universities, technical institutes, and industries alike. The included 1-year warranty underlines its durability and the manufacturer's commitment to quality.

FAQ's of FUNCTION GENERATOR 0.1HZ-10MHZ WITH AM/FM & FREQUENCY COUNTER:

Q: How can I utilize the function generator for engineering electronics experiments?

A: You can use the function generator to create accurate sine, square, or triangle waveforms across a frequency range of 0.1Hz to 10MHz. Its features support experiments involving modulation (AM, FM) and frequency analysis with the built-in counter, essential in communication and signal processing coursework.

Q: What makes the autoranging frequency counter beneficial for users?

A: The autoranging frequency counter measures frequencies up to 40 MHz with a 50 mVrms sensitivity, ensuring you get stable and accurate readings of external signals. This feature is especially valuable when analyzing signal sources or verifying the output frequency of various electronic circuits.

Q: When is it recommended to use the modulation capability of this equipment?

A: The AM and FM modulation features are ideal when you need to simulate or analyze real-world communication signals in the lab. Use these functions during projects that require signal mixing, modulation studies, or wireless communication prototyping.

Q: Where can this function generator be integrated for practical applications?

A: Thanks to its robust build and versatile features, the function generator can be deployed in university electronics laboratories, R&D centers, and industrial testing benches. Its portability and compact design make it suitable for both fixed and mobile setups.

Q: What is the process for measuring an external frequency using this generator?

A: To measure an external frequency, connect the external signal to the frequency counter input of the generator. Ensure the amplitude meets the 50 mVrms sensitivity threshold; the digital display will then show the precise frequency measurement.

Q: What warranty coverage does the product provide?

A: The function generator comes with a 1-year warranty against manufacturing defects, offering users assurance of quality and support for any technical issues that may arise during regular usage.
