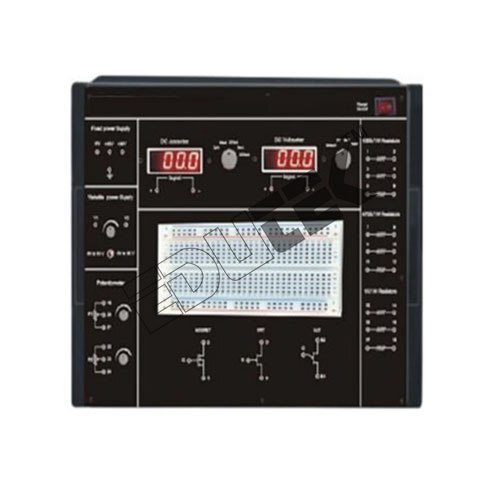

Send InquiryFET CHARACTERISITICS
Price 1400.0 INR/ Piece
MOQ : 1 Piece
FET CHARACTERISITICS Specification
- Response Time
- Immediate (analog display type)
- Display Type
- Analog Meters (Galvanometer/Voltmeter Permanent Magnet Moving Coil)
- Operating Temperature
- 0C to 50C (typical for laboratory equipment)
- IP Rating
- Not Rated (indoor, laboratory use)
- Components
- FET, voltmeter, ammeter, potentiometers, connecting terminals
- Output
- Visual display via analog/digital meters; connection terminals provide electrical output readings
- Input
- Variable voltage for FET gate and drain
- Features
- Replaceable FET socket, Built-in meters, Rugged construction, Educational labeling, Manual control knobs
- Interface
- Banana-type terminals, Reset/Control Knobs
- Power Source
- AC mains
- Power Supply
- External AC mains
- Usage
- ENGINEERING ELECTRONICS INSTRUMENTS
- Resolution
- Meter/Scale Resolution: 0.1V, 0.1mA (estimated from standard meter types)
- Product Type
- FET CHARACTERISITICS
- Application
- ENGINEERING ELECTRONICS INSTRUMENTS
- Rated Voltage
- 230 V AC, 50 Hz (mains powered)
- Supply Voltage
- 230 V AC, 50 Hz (mains)
- Size
- Standard desktop trainer size (approx. 320 x 220 mm as visually estimated)
- Dimension (L*W*H)
- 320 mm x 220 mm x 100 mm (approximated from image)
- Function
- To demonstrate and study the characteristics of Field Effect Transistors (FETs)
- Color
- Blue and Black (as per device housing in the image)
- Weight
- Approx. 2-3 kg (estimated from device type)
- Current Rating
- Milliamperes (range as per analog meter spec; typically 0-10 mA)
- Capacity
- Supports testing of standard FETs (ex: JFET, MOSFET as per socket provision)
- Frequency
- 50 Hz (mains for power supply)
- Test Points
- Clearly marked banana sockets for circuit access
- Control
- Fine potentiometer for gate and drain voltage adjustment
- Panel Markings
- Engraved/printed circuit schematic and instructions
- Included Accessories
- Connecting wires, instruction manual
- Safety Features
- Fuse protection, insulated terminals
- Cabinet Material
- High grade ABS plastic
- Applicable FET Types
- Compatible with JFET, MOSFET (technical sheet may specify exact model numbers supported)
- Build Quality
- Shock resistant, durable finish
- Internal Wiring
- Copper with PVC insulation
- Mounting
- Desktop, non-slip rubber feet
- Learning Outcomes
- Enable measurement of transfer and drain characteristics of FETs; understanding FET operation principles
- FET Socket Type
- Universal socket for TO-92 and similar transistor packages
- Meter Type
- Pivot and jewel meter movement
FET CHARACTERISITICS Trade Information
- Minimum Order Quantity
- 1 Piece
- Payment Terms
- Cash on Delivery (COD), Cash Advance (CA), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C)
- Packaging Details
- Carton Box, Export Quality also Available
- Main Export Market(s)
- Asia, Middle East, Africa
- Main Domestic Market
- All India
- Certifications
- ISO 9001, 14001, CE
About FET CHARACTERISITICS
Specification:
FET CHARACTERISITICS
FET Characteristics to demonstrate the operation of a Field Effect Transistor (FET) characteristics and testing methods.
To examine the relationship between the gate-to-source voltages (VGS), drain current (ID) and the drain-to-source voltage (VDS) in an N channel junction FET.
To measure and record correspondingly the VGS, ID and VDS values and then plot these values to form a set of drain characteristic curves.
To complete the experiment using these curves to determine the Trans conductance of the FET.
Comprehensive Learning Aid for FET Studies
This trainer enables detailed study and measurement of transfer and drain characteristics of FETs, significantly enhancing the understanding of FET operation. It comes with educational circuit schematics and instructions directly imprinted on the panel, simplifying complex topics and making learning accessible for electronics engineering students.
User-Friendly and Safe Operation
Equipped with intuitive control knobs for smooth voltage adjustments and clearly marked banana sockets, the device ensures ease of use in laboratory environments. Safety is paramount-fuse protection, insulated terminals, and a shock-resistant, high-grade ABS cabinet protect both the user and the instrument during hands-on experiments.
Flexible and Durable Design
Compatibility with a range of standard FET types (JFET, MOSFET) is ensured by a universal transistor socket, while rugged construction and non-slip rubber feet support frequent use. Built-in analog meters provide real-time readings, and replaceable parts promise longevity in active educational settings.
FAQ's of FET CHARACTERISITICS:
Q: How does the FET Characteristics Trainer help students understand FET principles?
A: The trainer allows students to directly measure and analyze transfer and drain characteristics of both JFETs and MOSFETs, giving practical insights into FET operation. The engraved schematic and live meter readings reinforce theoretical knowledge with hands-on experimentation.Q: What FET types can be tested with this instrument?
A: The trainer supports standard JFET and MOSFET types via its universal socket, typically for TO-92 and similar transistor packages. Exact supported models may be specified in the included technical sheet.Q: When is this instrument best used during an electronics course?
A: This trainer is ideal for laboratory sessions focused on semiconductor device characteristics, particularly when teaching the practical aspects of FET operation in engineering electronics curricula.Q: Where can the FET Characteristics Trainer be used?
A: Designed for indoor, laboratory use, the trainer's robust build and desktop mounting make it perfect for use in educational institutions, engineering training centers, and research labs.Q: What is the process for setting up and using the FET Characteristics Trainer?
A: Connect the desired FET to the universal socket, link measuring instruments via the banana sockets, and adjust the gate and drain voltages using the control potentiometers. Observe the analog meters to record the characteristics as described in the instruction manual.Q: How do the safety features protect users during operation?
A: Built-in fuse protection, insulated terminals, and a durable shock-resistant cabinet minimize the risk of electrical hazards, making it safe for students and instructors in a classroom environment.
