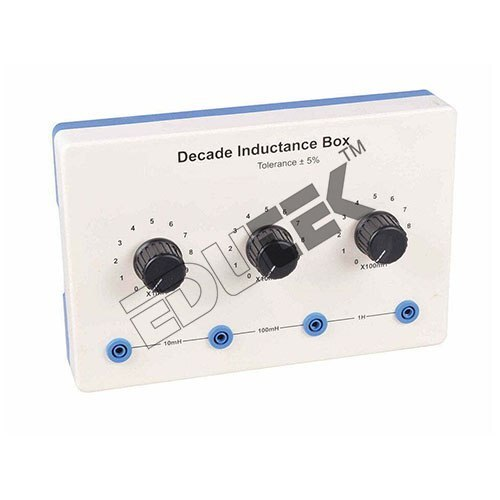

DECADE INDUCTANCE BOX THREE DIALS OF 1MH, 10MH, 100MH

Send Inquiry

Request To Call Back

DECADE INDUCTANCE BOX THREE DIALS OF 1MH, 10MH, 100MH

Get a Price/Quote

MOQ : 1 Piece

DECADE INDUCTANCE BOX THREE DIALS OF 1MH, 10MH, 100MH Specification

Power Source
Passive (no external power required)

Response Time
Immediate/manual setting

Usage
ENGINEERING ELECTRONICS EQUIPMENTS

IP Rating
IP20 (for indoor laboratory use)

Components
Inductors, rotary selector switches, banana plug terminals

Output
Variable inductance (selected by dials)

Display Type
Mechanical dial markings

Input
Manual selection via rotary switches

Operating Temperature
0C to 40C

Thermal Conductivity
Standard for laboratory plastic and inductor assemblies

Interface
Rotary dial, banana socket terminals

Features
Three dial decade arrangement, easy inductance selection, sturdy bench-top design, educational and calibration use

Power Supply
No external power supply required (passive device)

Resolution
1 mH per step (finest dial)

Product Type
DECADE INDUCTANCE BOX THREE DIALS OF 1MH, 10MH, 100MH

Application
ENGINEERING ELECTRONICS EQUIPMENTS

Rated Voltage
Max 500V (AC/DC, suitable for low power circuit testing)

Supply Voltage
N/A (passive component)

Size
Medium bench-top enclosure

Dimension (L*W*H)
215 x 110 x 70 mm (approx.)

Function
Provides selectable inductance values for circuit experiment and calibration

Color
Black with white markings

Weight
Approx. 900g

Capacity
Selectable inductance up to 1111 mH total

Current Rating
Max. 0.3A (typical for low power lab circuits)

Thickness
Approx. 70mm

Frequency
DC to 10kHz (typical operating range)

Contact Material
Brass/Nickel-plated contacts

Dial Ranges
1mH, 10mH, and 100mH per dial

Construction
Handwired precision inductors

Terminals
2 x 4mm banana plug sockets

Compliance
Meets typical laboratory educational standards

Accuracy
5% (typical laboratory accuracy)

Mounting
Bench-top, non-slip rubber feet

Enclosure Material
High grade plastic / Bakelite

Inductance Range
1 mH to 1111 mH (1.111 H) in 1 mH steps

DECADE INDUCTANCE BOX THREE DIALS OF 1MH, 10MH, 100MH Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash on Delivery (COD), Cash Advance (CA), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C)

Packaging Details
Carton Box, Export Quality also Available

Main Export Market(s)
Asia, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001, 14001, CE

About DECADE INDUCTANCE BOX THREE DIALS OF 1MH, 10MH, 100MH

Reduced prices await on the splendiferous DECADE INDUCTANCE BOX with three elite dials of 1mH, 10mH, and 100mH, offering unassailable precision from 1mH to 1111mH in 1mH steps. Grab yours now and jump on enhanced calibration for electronic engineering labs. Crafted with brass/nickel-plated contacts and a high-grade Bakelite enclosure, this box guarantees laboratory accuracy (5%), reliability, and robust performance up to 500V. Manual rotary selection, mechanical dial display, and elite banana plug terminals ensure versatile, passive operation for all your experimental needs. Exporter, manufacturer, and supplier: India.

Application & Use: Where Precision Meets Versatility

The DECADE INDUCTANCE BOX THREE DIALS is ideally suited for engineering electronics laboratories and research environments. Used as a calibration and educational tool, its selectable inductance values enable specific circuit experiments and general electronics testing. The box provides engineers, students, and technicians with elite flexibility and unassailable accuracy, making it indispensable for developing, calibrating, and troubleshooting low-power electronic circuits and systems.

Payment Logistics, Certification, and Supply Ability

Our DECADE INDUCTANCE BOX THREE DIALS comes with flexible payment terms suitable for market value transactions. Certified to meet typical laboratory educational standards, each unit is packed and dispatched with care to ensure optimal delivery. Logistics are streamlined for reliable export, with the capacity to supply large orders from India. Secure packing safeguards your investment, while prompt shipping guarantees swift fulfillment to maintain consistent educational and industrial workflows.

FAQs of DECADE INDUCTANCE BOX THREE DIALS OF 1MH, 10MH, 100MH:

Q: How is the inductance value selected on the DECADE INDUCTANCE BOX THREE DIALS?

A: Inductance values are chosen manually using three rotary dials representing 1mH, 10mH, and 100mH increments. Users adjust the dials to set the desired total inductance, indicated by mechanical markings on the enclosure.

Q: What are the primary applications of this decade inductance box in laboratory settings?

A: This inductance box is primarily used for calibration, experimentation, and educational demonstrations in engineering electronics laboratories, making it ideal for circuit testing and learning environments.

Q: When is the optimal time to utilize this decade inductance box in a circuit experiment?

A: The box is best used during the setup and calibration phase of electronic circuit experiments, allowing users to select and adjust inductance values as required for testing or validation.

Q: Where is the DECADE INDUCTANCE BOX typically installed or operated?

A: It is designed for bench-top use in indoor laboratory environments, featuring non-slip rubber feet and IP20 protection for safe and stable placement during operation.

Q: What is the process for connecting the box to a circuit under test?

A: Simply use the provided 4mm banana plug sockets to connect the box to your circuit. Select the inductance value via rotary dials before energizing your test circuit under controlled laboratory conditions.

Q: How does using this box benefit educational and research applications?

A: Its precise, selectable inductance and high reliability provide enhanced flexibility and accuracy for circuit calibration, enabling hands-on learning and reproducibility in laboratory experiments.
