DOUBLE EFFECT EVAPORATOR APPARATUS

Price 25000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

DOUBLE EFFECT EVAPORATOR APPARATUS Specification

Usage
Heat Transfer Laboratory Equipment

Material
Stainless Steel

Product Type
DOUBLE EFFECT EVAPORATOR APPARATUS

Application
Heat Transfer Laboratory Equipment

Core Components
Evaporators Shell Diameter: 70 mm Evaporators Length: 500 mm Evaporators Material: Stainless Steel Evaporators Tubes inner Diameter: 9.5 mm Evaporators out Diameter: 12.7 mm Feed Tank Material: Stainless Steel Digital Temperature Indicator: 0-199.9 deg C

Warranty
1 Year

Type
DOUBLE EFFECT EVAPORATOR APPARATUS

DOUBLE EFFECT EVAPORATOR APPARATUS Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash on Delivery (COD), Cash Advance (CA), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C)

Packaging Details
Carton Box, Export Quality also Available

Main Export Market(s)
Asia, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001, 14001, CE

About DOUBLE EFFECT EVAPORATOR APPARATUS

Specification:

DOUBLE EFFECT EVAPORATOR APPARATUS

Double Effect Evaporator deals withthe concentration of a non- volatile solute from a solution by the removal ofrequired amount of volatile solvent. Usually the solvent is water.

Long tube evaporators are usuallyused for the concentration of foamy liquids.

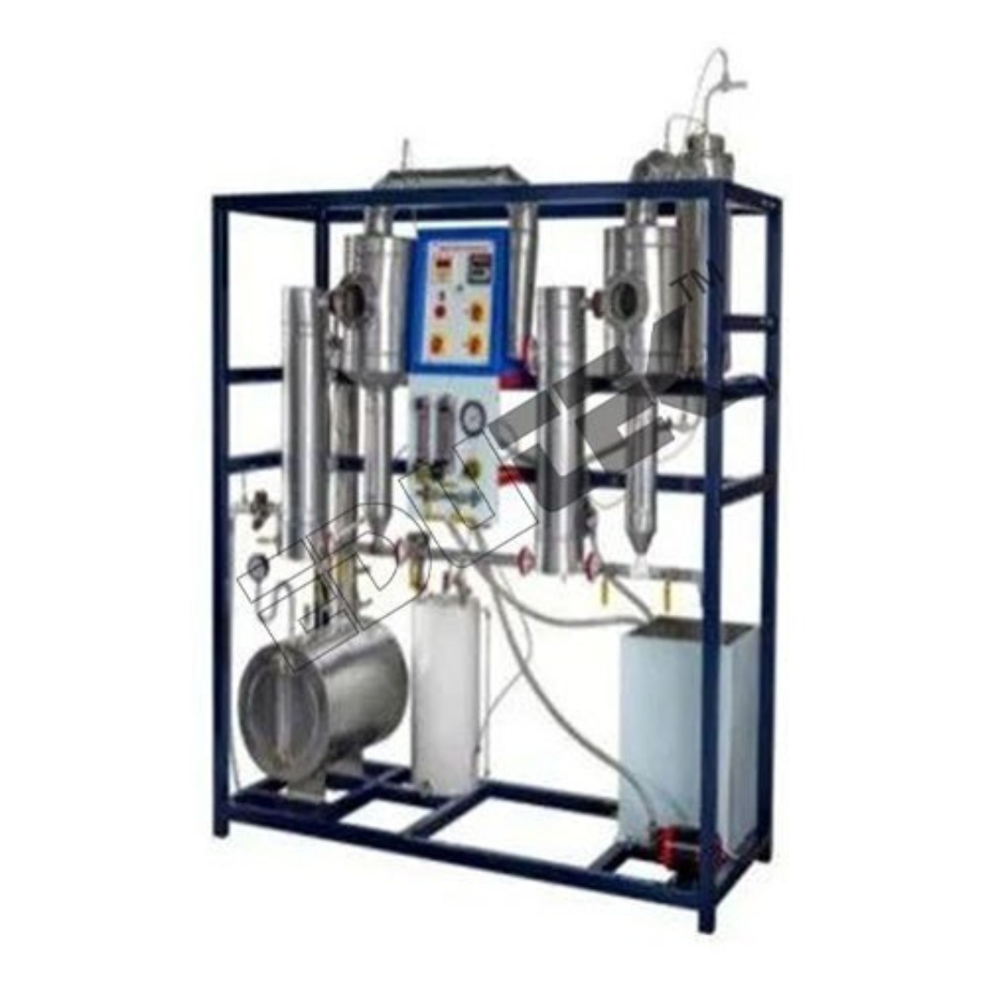

The set-up is consists of twoevaporators fitted in series. Each is made up of Stainless Steel tubessurrounded by a Stainless Steel jacket and fitted with accumulator.

Dilute solution is feed to the firstevaporator.

Steam from a steam generator issupplied to evaporator to concentrate the dilute feed solution to a desiredlevel. The jacket is fitted with a steam trap and the condensate is collectedat the end of trap.

The vapors of volatile solventproduced in first evaporator are supplied to the second evaporator.

The vapors of volatile solvent arecondensed in a shell & tube type condenser and the balance non-volatilesolute is collected in the accumulator.

Product Specification

Evaporators Shell Diameter: 70 mm

Evaporators Length: 500 mm

Evaporators Material: Stainless Steel

Evaporators Tubes inner Diameter: 9.5 mm

Evaporators out Diameter: 12.7 mm

Feed Tank Material: Stainless Steel

Digital Temperature Indicator: 0-199.9 deg C

Efficient Double Effect Evaporation

This apparatus utilizes a series configuration of two stainless steel evaporators to maximize solvent removal efficiency. It is especially effective for concentrating solutions where minimizing energy use is important, such as in food, chemical, or pharmaceutical labs. The long tube design is particularly suited to handle liquids prone to foaming.

High-Quality Stainless Steel Construction

All components in contact with the solution, including the evaporator shells, tubes, and feed tank, are manufactured from durable stainless steel. This ensures exceptional corrosion resistance, easy cleaning, and long service life. The apparatus is engineered for reliable, consistent performance in academic and industrial settings.

Precision & User-Friendly Controls

Equipped with a digital temperature indicator ranging from 0 to 199.9C, the system allows for precise monitoring and control during experiments. The intuitive setup makes it easy for students and technicians to observe the effects of temperature and process configuration on evaporation efficiency.

FAQ's of DOUBLE EFFECT EVAPORATOR APPARATUS:

Q: How does the Double Effect Evaporator Apparatus function in a laboratory setting?

A: The apparatus works by feeding a dilute solution into the first evaporator, where the solvent is partially removed. The vapor generated is then used to heat the second evaporator, making the process energy-efficient and ideal for hands-on study in heat transfer laboratories.

Q: What are the main benefits of using this double effect evaporator in experiments?

A: Key benefits include improved energy efficiency, effective concentration of foamy liquids, and the ability to study real-time heat transfer and mass transfer processes, thanks to its robust, corrosion-resistant stainless steel design.

Q: When should a double effect evaporator be used instead of a single effect system?

A: A double effect evaporator should be chosen when energy savings and higher concentration levels are required. It is particularly useful when dealing with large volumes of dilute solutions or when processing foamy substances.

Q: Where can the Double Effect Evaporator Apparatus be installed or used?

A: This apparatus is primarily intended for academic laboratories, research facilities, and industrial training centers that focus on heat transfer, chemical engineering, and process studies.

Q: What is the standard process for operating this equipment?

A: The process begins by filling the feed tank with a dilute solution, which is then introduced into the first evaporator. As heating begins, the solvent vaporizes, and the vapor is directed to the second evaporator, optimizing heat utilization and increasing concentration.

Q: How does the stainless steel construction enhance the apparatus's performance?

A: Stainless steel provides durability, resistance to corrosion, and easy maintenance, ensuring consistent performance and longevity even when handling aggressive or foamy solutions.
