Flow Through Helical Coil

Price 1000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Flow Through Helical Coil Specification

Measurement Range
0.1 to 5 LPH (as per flow meter specification)

Temperature Range
Ambient to 90 C Celsius (oC)

Power Source
Not Required (Passively operated by external circulating fluid)

Model No
FTHC-1000

Automation Grade
Manual Operation

Voltage
220 Volt (v)

Frequency
50 Hz Hertz (HZ)

Core Components
Helical Glass/Metal Coil, Inlet & Outlet Fittings, Mounting Stand

Feature
Corrosion Resistant, Leak-proof, Transparent Coil Observation, Uniform Heating/Cooling

Capacity
1 - 5 LPH (Customizable) Ltr/hr

Accuracy
1 C (with suitable temperature measurement device) C

Warranty
1 Year

Equipment Materials
Borosilicate Glass/SS316/SS304/PTFE (as per application)

Type
Flow Through Helical Coil

Usage
Laboratory Fluid Heating/Cooling, Educational Demonstrations

Dimension (L*W*H)
450 mm x 200 mm x 400 mm (Typical/customized) Millimeter (mm)

Weight
Approx. 5-18 kg (depending on size) Kilograms (kg)

Flow Through Helical Coil Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash Against Delivery (CAD), Cash on Delivery (COD), Cash Advance (CA), Cash in Advance (CID), Cheque, Days after Acceptance (DA), Delivery Point (DP), Letter of Credit at Sight (Sight L/C), Telegraphic Transfer (T/T), Letter of Credit (L/C)

Delivery Time
2 Week

Sample Available
Yes

Sample Policy
If order is confirmed we will reimburse the sample cost

Main Export Market(s)
Middle East, Central America, Eastern Europe, Western Europe, Africa, North America, Asia, Australia, South America

Main Domestic Market
South India, Central India, Gujarat, Karnataka, Kerala, Assam, Andaman and Nicobar Islands, Haryana, Himachal Pradesh, Jammu and Kashmir, Madhya Pradesh, Tripura, All India, West India, North India, East India, Lakshadweep, Mizoram, Meghalaya, Manipur, Andhra Pradesh, Bihar, Chandigarh, Daman and Diu, Goa, Jharkhand, Odisha, Punjab, Delhi, Dadra and Nagar Haveli, Arunachal Pradesh, Chhattisgarh, Maharashtra, Nagaland, Rajasthan, Sikkim, Tamil Nadu, Telangana, Pondicherry, Uttar Pradesh, Uttarakhand

About Flow Through Helical Coil

Flow Through Helical Coil:

Delivering a wide gamut of Flow Through Helical Coil. This coil is designed by our adroit professionals using high-grade raw materials and modish technology, who have in-depth knowledge about the industrial standards. Available with us in numerous specifications, to meet the varied demands of our respectable clients.

Features:

Rust proof.
Less maintenance.
Maximum strength.

Specifications:

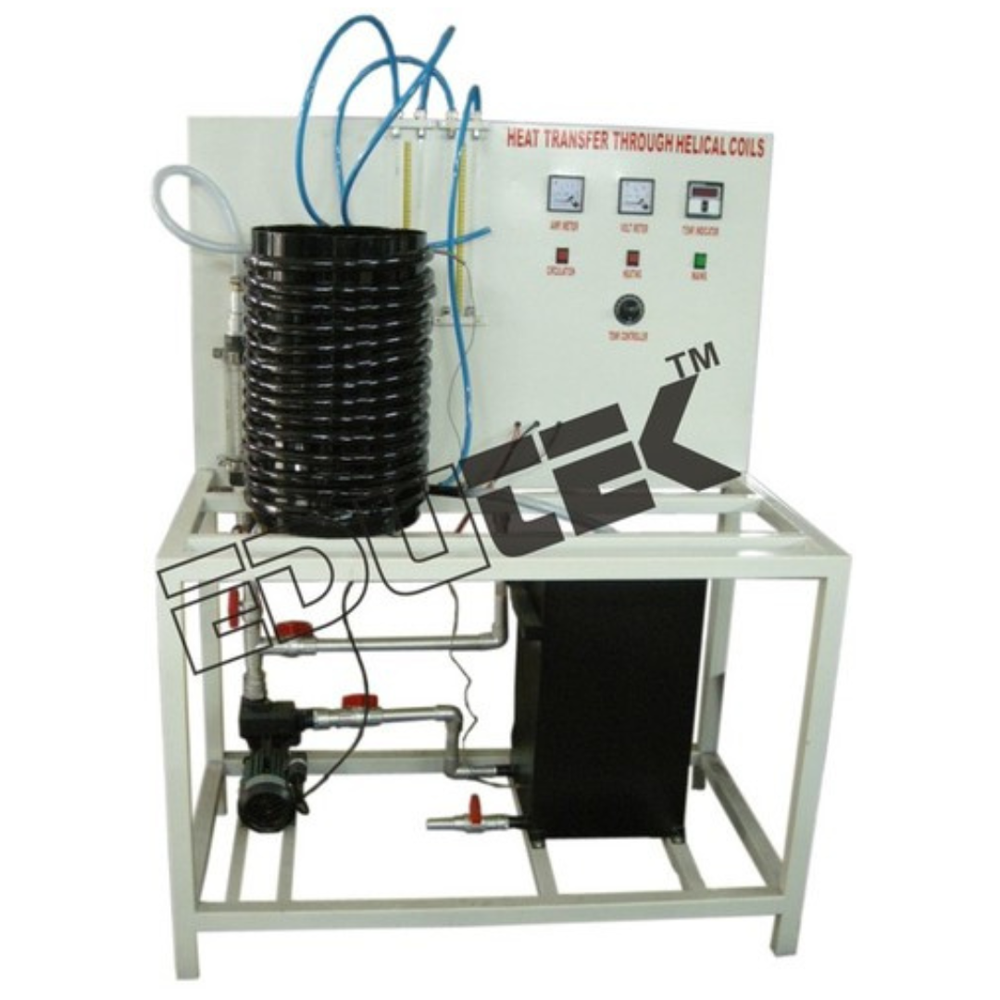

Helical Coil Material Stainless Steel Diameter 12.
No. of Turns 15.
Coil Tube Diameter OD 21mm, ID 17mm (Approx.).
Sump Tank Material Stainless Steel/PVC, Capacity 50 Ltrs.
Water Circulation FHP Pump, Crompton/Sharp.
Manometer 2 Nos.
Flow measurement Rota meter.
Piping GI and PVC.
Control panel comprising of Standard make on off switch, Mains Indicator etc.
The whole set-up is well designed and arranged in a good quality painted structure.

Flexible Design for Diverse Laboratory Needs

The flow through helical coil offers impressive adaptability, featuring customizable coil dimensions, material selections, and end connections. Whether youre working with aggressive chemicals or simply need varied flow capacities, this device can be tailored to suit each application. Its modular construction ensures it can be easily reconfigured or scaled as per the specific requirements of laboratory processes.

Simplified Operation and Maintenance

Engineered for straightforward use, this helical coil system operates passivelyno internal power source is necessary, as fluid circulation is externally supplied. Its robust yet accessible design allows for quick disassembly, making routine cleaning and maintenance simple and hassle-free. These features help ensure reliability and reduce downtime in busy laboratory settings.

Enhanced Safety and Performance

With a pressure rating up to 3 bar, high chemical resistance, and operating temperatures reaching 90C, the coil ensures safe and effective performance even under challenging laboratory conditions. Glass-coil models feature transparent construction, delivering real-time observation of internal flow for precise process monitoring and greater experimental control.

FAQs of Flow Through Helical Coil:

Q: How do I select the appropriate coil material for my application?

A: Choose from borosilicate glass, SS316, SS304, or PTFE based on fluid compatibility and required chemical resistance. For strong acids and high-corrosion environments, PTFE or glass is recommended; stainless steel is suited for water and most organic fluids.

Q: What is the procedure for cleaning and maintaining the helical coil?

A: The unit is designed for easy dismantling. Simply disconnect the end fittings, remove the coil from the mounting stand, and clean with appropriate solvents or brushes based on the material. Regular cleaning ensures consistent performance and extends equipment life.

Q: When should I opt for customized flow rates or coil sizes?

A: Select customized flow rates (15 LPH or as required) and coil dimensions when standard configurations do not meet your specific laboratory protocols or pilot-scale process requirements. Tailored options are available upon request.

Q: Where can I observe the fluid flow inside the coil?

A: Transparent borosilicate glass coil models allow direct visual monitoring of the flow, enabling precise control and observation during heating, cooling, or demonstration experiments.

Q: What are the main benefits of using a flow through helical coil in my laboratory?

A: Benefits include uniform heat transfer, corrosion resistance, leak-proof operation, and real-time observation of fluid dynamics. Its versatility and robust construction support a wide range of educational and research applications.

Q: How is the helical coil installed and connected to external systems?

A: Mount the coil onto a benchtop using the rubber feet for stability. Connect your fluid supply and return lines using the appropriate threaded, flared, or compression fittings as per your laboratory setup. No built-in power source is needed.
