Digital Osciloscope

Name: Digital Osciloscope
Brand: EDUTEK INSTRUMENTATION

Get a Price/Quote

MOQ : 1 Piece

Digital Osciloscope Specification

Accuracy
3% Typical %

Core Components
Main Processor, Display, Input Channel, Power Supply

Power Source
220V AC, 50/60 Hz

Capacity
2 Channels, 100 MHz Bandwidth Pcs/hr

Temperature Range
0 C to +50 C Celsius (oC)

Frequency
Up to 100 MHz Megahertz (MHZ)

Measurement Range
2 mV/div to 10 V/div

Automation Grade
Semi-Automatic

Voltage
CAT II 300V (Maximum Input) Volt (v)

Feature
Auto Set, Save/Recall, Digital Storage, USB Interface

Equipment Materials
ABS Plastic, Metal Chassis

Type
Digital Oscilloscope

Usage
Laboratory, Research, Industrial

Display Type
7-inch Color TFT (800 x 480 pixels)

Dimension (L*W*H)
340 x 177 x 104 mm Millimeter (mm)

Weight
Approx. 2.5 kg Kilograms (kg)

Input Impedance
1 M 2% || 20 pF 3 pF

Interface
USB Device/Host, LAN

Time Base Range
2 ns/div to 100 s/div

Operating Humidity
85% RH (non-condensing)

Storage Media
USB Flash Drive Support

Memory Depth
10Mpts

Vertical Resolution
8-bit

Trigger Types
Edge, Pulse, Video, Slope, Alternate

Math Functions
Add, Subtract, Multiply, FFT

Safety Standard
IEC61010-1

Sample Rate
Up to 1GS/s

Languages Supported
Multi-language Support (EN, CN, etc.)

Waveform Update Rate
20,000 wfms/s

About Digital Osciloscope

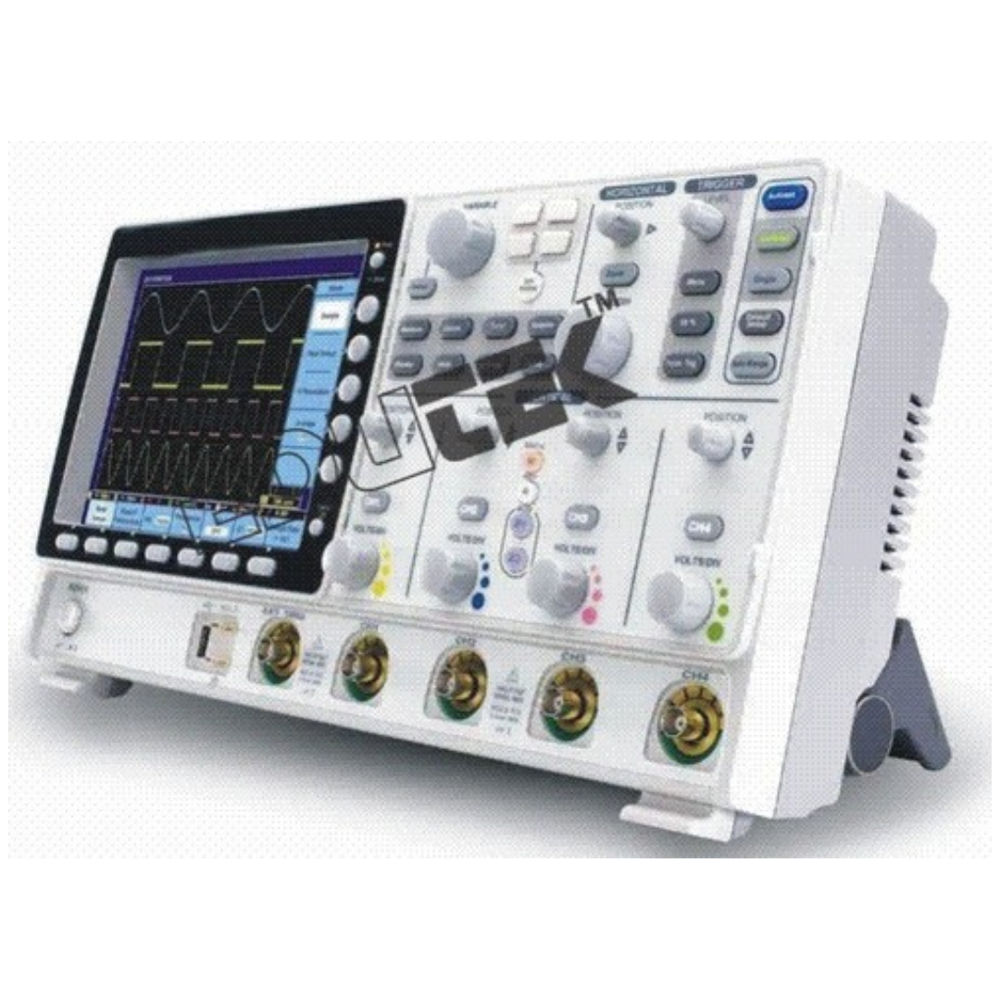

DIGITAL OSCILOSCOPE

Edutek Instrumentation are the Best Manufacturer and Exporter Company in India

SPECIFICATION:

High tech test screens
Scanner interface ability w/ printers and exhaust gasanalyzers
Simplified keyboard design
Expanded memory can save up to 32 screens
Can be operated w/ electricity or w/ battery forportability
DC operation: 9-16 VAC, 3.5 A, negative ground
Operating temp range: 35-100 deg F

High Performance and Versatility

The engineered for versatility, supporting up to 100 MHz bandwidth and a sampling rate up to 1GS/s. Its broad frequency and memory depth make it ideal for analyzing complex signals in both academic and industrial scenarios. Its dual-channel design supports multi-faceted analysis.

Intuitive Operation and Data Management

With a 7-inch color TFT screen and an ergonomic interface, navigation is smooth and clear. USB and LAN ports provide seamless connectivity for saving, recalling, and sharing waveform data, enhancing workflow efficiency across applications.

Advanced Measurement and Safety Features

This oscilloscope incorporates diverse trigger functionsEdge, Pulse, Video, Slope, and Alternatefor dynamic signal examination. Compliance with IEC61010-1 safety standards and auto set functionality improves both user safety and convenience during operation.

FAQs of DIGITAL OSCILOSCOPE:

Q: How can I store and transfer waveform data with the Digital Oscilloscope?

A: The oscilloscope supports USB flash drive connectivity and LAN interface, allowing users to save, recall, and transfer waveform data directly to external storage or network locations for further analysis or documentation.

Q: What applications are best suited for this digital oscilloscope?

A: This model is ideal for laboratory testing, research projects, and industrial measurements. It provides accurate signal capture for troubleshooting, development, and quality assurance tasks in electronics and electrical engineering.

Q: When should I use each trigger type available on this oscilloscope?

A: Edge triggers are useful for standard rising or falling signals, while pulse and video triggers cater to more complex waveforms or video signals. Slope and alternate triggers assist in isolating specific signal behaviors during detailed analysis.

Q: Where can this digital oscilloscope be safely used?

A: Its robust design and compliance with IEC61010-1 safety standards make it suitable for use in laboratories, research centers, and industrial sites across India and internationally, provided humidity remains below 85% RH (non-condensing) and temperature is between 0C and +50C.

Q: What is the process for setting up the Digital Oscilloscope for measurement?

A: To set up, connect the instrument to a 220V AC power supply, attach test probes to the input channels, and utilize the auto set feature to automatically configure optimal settings. Measurement ranges from 2 mV/div to 10 V/div allow flexibility for diverse test scenarios.

Q: How does using the math function features benefit signal analysis?

A: Built-in math functions such as Add, Subtract, Multiply, and FFT provide users with advanced analysis tools, enabling real-time computations and in-depth evaluation of complex waveform characteristics.
