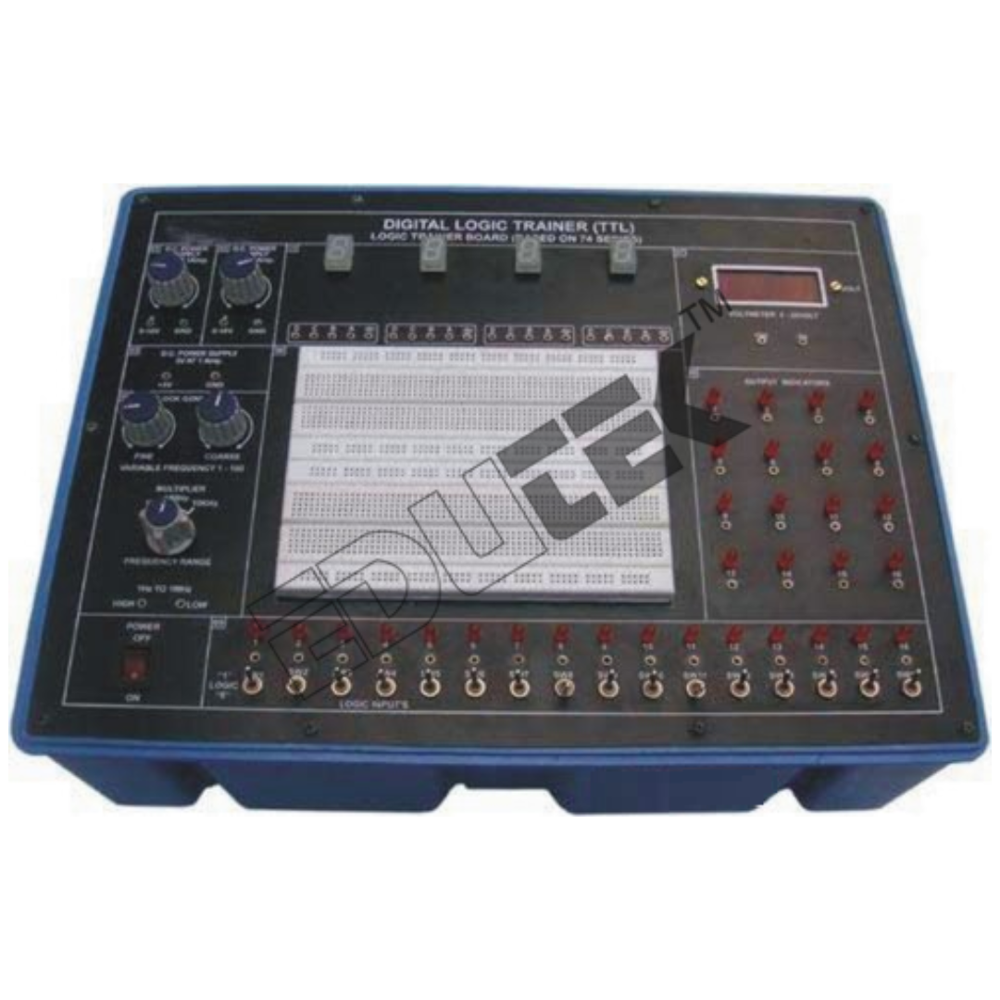

DIGITAL LOGIC TRAINER

Price 1000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

DIGITAL LOGIC TRAINER Specification

Core Components
Logic Gates, LEDs, Switches, IC Holders, Power Supply, Patch Cords

Measurement Range
Logic levels - 0V (logic LOW), 5V (logic HIGH)

Feature
Multiple logic gates, Debounced switches, Variable clock, Power supply with overload protection

Temperature Range
Ambient Celsius (oC)

Frequency
DC operation (for most ICs); Clock pulse generator 1 Hz to 100 kHz Hertz (HZ)

Automation Grade
Manual

Power Source
AC Mains 230V 10%, 50Hz

Voltage
5V Fixed Regulated DC for logic circuits Volt (v)

Accuracy
High accuracy circuit response (as per IC specs) %

Model No

Equipment Materials
MS Powder Coated/ABS front panel

Type
Digital Logic Trainer

Usage
Laboratory/Educational

Display Type
LED Indicators

Dimension (L*W*H)
Approx. 440 mm x 300 mm x 130 mm Millimeter (mm)

Weight
Approx. 4 kg Kilograms (kg)

DIGITAL LOGIC TRAINER Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C)

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Packaging Details
carton box, export quality also available

Main Export Market(s)
Africa, Western Europe, Middle East, Asia, Eastern Europe

Main Domestic Market
All India

Certifications
ISO 9001, 14001 ,CE

About DIGITAL LOGIC TRAINER

DIGITAL LOGIC TRAINER

Edutek Instrumentation are the Best Manufacturer and Exporter Company in India Digital Trainer is a modular course covering concepts, theory and

applications for digital electronics training. It should be designed start

the student with the basics of digital technology and goes onto

advanced digital topics. All necessary equipment for digital trainer

experiments such as multiple output power supply, clock generator, logic

indicator

Technical Specification: gate circuits.

Active high and active low inputs and outputs.
Product of sums circuits.
Sum of products circuits.
Pulse distortion and propagation delay.
Introduction to JK flip-flop.
Serial in shift register.
Parallel in shift register.
Fundamental of RS Lathes.

Comprehensive Learning Platform

This trainer supports hands-on experimentation with all major logic gates and digital circuits. With a robust set of core componentssuch as debounced switches, high-visibility LED indicators, and variable clock pulse generationit offers a broad platform for mastering digital logic fundamentals. Its ideally suited for classroom demonstrations, student labs, and vocational training programs.

User-Friendly and Durable Design

Engineered for frequent use, the DIGITAL LOGIC TRAINER features a powder-coated MS/ABS front panel and a sturdy, lightweight case for easy portability. Intuitive controls and clear layout ensure efficient user interaction, while overload and short circuit protections guarantee long-lasting service. Designed to withstand the rigors of educational environments, it combines reliability with ease of maintenance.

FAQs of DIGITAL LOGIC TRAINER:

Q: How do I use the toggle switches on the DIGITAL LOGIC TRAINER for logic input?

A: The trainer includes 8 toggle switches designed for setting logic inputs manually. By toggling each switch, you can assign a logic HIGH (5V) or LOW (0V) value to simulate different binary input combinations. These inputs can be fed directly into the desired logic circuits via the breadboard area.

Q: What types of experiments can I conduct with this digital logic trainer?

A: You can perform a wide variety of digital logic experiments, such as verifying the behavior of AND, OR, NOT, NAND, NOR, XOR, and XNOR gates, constructing combinational and sequential circuits, testing ICs, observing output states on LEDs, and exploring clock pulse responses using the variable generator.

Q: When should the variable clock generator be used during experiments?

A: The variable clock generator is especially useful when working with sequential circuits, like counters or flip-flops, that require a timing pulse. You can set the clock frequency between 1 Hz and 100 kHz to observe circuit behavior at different speeds and study timing-sensitive logic operations.

Q: Where can the DIGITAL LOGIC TRAINER be most effectively utilized?

A: This trainer is particularly effective in academic laboratories, vocational training centers, and technical institutions. Thanks to its portability and comprehensive feature set, its also a valuable demonstration tool for instructors who travel between labs or classrooms.

Q: What steps are involved in setting up an experiment on the trainer?

A: Begin by connecting your logic circuit components on the solderless breadboard. Assign logic inputs via the toggle switches and use the provided patch cords to route signals. Observe circuit responses through the LED indicators. Adjust the clock pulse, if needed, and rely on overload protection to safeguard your components.

Q: What benefits does the DIGITAL LOGIC TRAINER offer over standard circuit assembly?

A: It streamlines digital circuit testing by offering a reusable, solderless breadboard, instantly accessible logic gates, precise input selection, direct output visualization with LEDs, and built-in safety protections. This enhances learning, reduces errors, and saves time compared to traditional wired assemblies.
