Digital IC Trainer

Price 1000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Digital IC Trainer Specification

Automation Grade
Manual

Temperature Range
0C to 50C

Core Components
Digital ICs, Breadboard, Switches, LEDs, Patch Cords

Voltage
5V DC Regulated Output, 230V AC Input

Feature
Highly Efficient

Model No
Universal Digital IC Trainer

Capacity
Multiple ICs Supported

Frequency
50 Hz

Power Source
230V AC, 50Hz

Measurement Range
Digital Logic Levels (0 - 5V)

Accuracy
100 %

Equipment Materials
ABS Plastic, Metal

Type
Digital IC Trainer

Usage
Laboratory

Display Type
LED Display

Dimension (L*W*H)
355 x 230 x 90 mm

Weight
Approx. 2.5 kg

About Digital IC Trainer

Digital IC Trainer

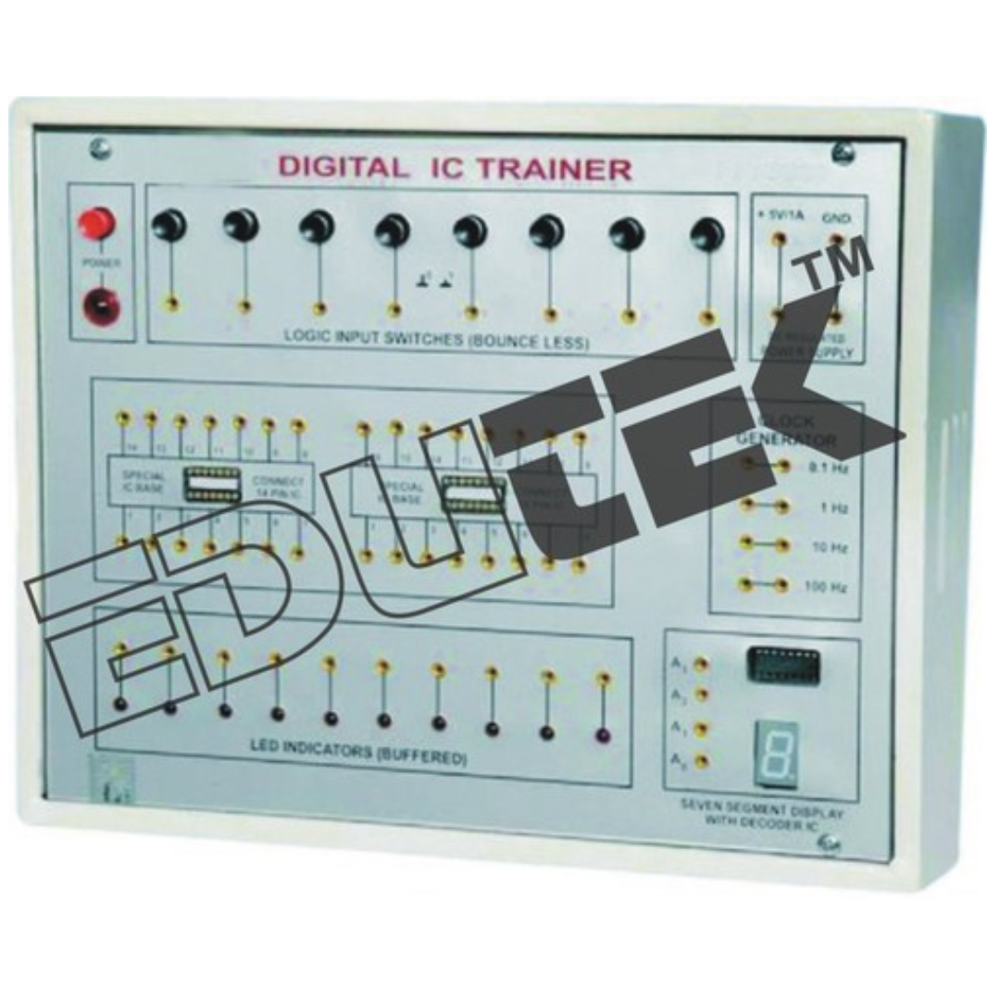

Students can be trained about the digital ICs by using this board. The fundamentals of the digital ICs can easily be understood by performing required experiments for verification of truth table of logic gates. Quite large area of the bread board has been provided on the panel for ICs . Students can make the circuits easily on the bread board with the help of other accessories which have been provided on the panel. Practical experience on this board carries great educative value for Science and Engineering Students.

It consists of specially designed brass sockets of 2mm inner diameter which are press fit by special techniques on bakelite panel. Specially designed patchcords (with spring action) of pin diameter 2mm are provided so that the students can make interconnections themselves and varify the truth table as mentioned in User's Manual. Various experiments on logic gates, Flip-Flop & Counters can be done.

Board Consists of following

DC Regulated Power Supply 5 V/1 Amps.
Special IC Base of 14 Pin for inserting any IC of 14 pins -1 No.
Special IC Base of 16 Pin for inserting any IC of 16 pins - 1 No.
Logic Input Switches (Bounceless) - 8 No.
LED Indicators (Buffered)- 10 No.
Clock Generator - 1 No.
(0.1, 1, 10 & 100 Hz)
7 Segment Display with Decoder IC 7447 - 1 No.
2mm Interconnection Leads. - 10 No.
74 LS 08 (AND), 74 LS 32 (OR), 74 LS 04 (NOT), 74 LS 00 (NAND) 74 LS 02 (NOR) & 74 LS 86 (EX-OR)-1 No. 7474 (D Flip Flop 74LS76(JK Flip-Flop) & 7490 (Decade Counter) can be mounted on 14 or 16 pin IC Base.
Comprehensive USER's Manual for doing experiments on Logic Gates, Flip-Flops & Decade Counter is provided.

User-Friendly Prototyping Platform

The Digital IC Trainer simplifies the process of building and testing digital circuits, making it ideal for students and professionals alike. Its solderless breadboard and clearly marked switches and LEDs ensure that users can quickly assemble and modify circuits without hassle. The included patch cords and multiple IC sockets extend flexibility for various experiments.

Reliable Testing and Logic Monitoring

With a built-in logic probe and multiple test points, this trainer provides comprehensive tools for logic verification. The overload protection system preserves both the trainer and components during rigorous operations. These features combine to deliver accurate and efficient circuit measurement and troubleshooting.

Sturdy and Efficient Design

Constructed from powder-coated metal and ABS plastic, the trainers chassis offers long-lasting durability. Designed for laboratories and classrooms, it maintains high accuracy and efficiency in a range of environments, supporting digital logic experimentation over the 0C to 50C operating range.

FAQs of Digital IC Trainer:

Q: How do I use the Digital IC Trainer to prototype digital circuits?

A: Begin by placing your ICs into the provided 14/16 pin IC sockets. Use the 840 tie-point solderless breadboard to lay out connecting wires and components. Input signals can be set using the 16 toggle switches, while output responses are visualized through 16 LED indicators. Multicolour patch cords are supplied for easy connections without the need for soldering.

Q: What safety features are included in this IC Trainer?

A: The trainer is equipped with built-in overload protection. This mechanism ensures that both the ICs and the equipment remain safe, even in the event of wiring errors or short circuits during experiments.

Q: When is this Digital IC Trainer most beneficial?

A: It is particularly useful during laboratory courses, classroom instruction, and industrial training sessions where hands-on, practical exposure to digital logic circuits is required. Its accuracy and reliability make it suitable for both educational and research applications.

Q: Where can the Digital IC Trainer be utilized?

A: This trainer is designed for use in various settings such as educational institutions, research labs, and industrial training centers. It is suitable whenever practical digital logic circuit training is needed.

Q: What is the process for monitoring logic states with this equipment?

A: Logic states can be monitored using the included logic probe and the multiple test points strategically placed throughout the trainer. Simply connect the probe to a test point to check the status of signals at different parts of your circuit, while visually observing LED output indicators.

Q: What components and tools are supplied with the equipment?

A: The set comes with a solderless breadboard, 16 toggle input switches, 16 LED output indicators, 8 IC sockets, a logic probe, multiple test points, and a selection of multicolour patch cords, ensuring comprehensive support for digital circuit prototyping and analysis.

Q: What are the main benefits of using this Digital IC Trainer?

A: Key benefits include its accuracy (100%), ease of use, protection features, and the ability to quickly build and test multiple digital logic circuits. It fosters both theoretical learning and practical skill development in digital electronics.
