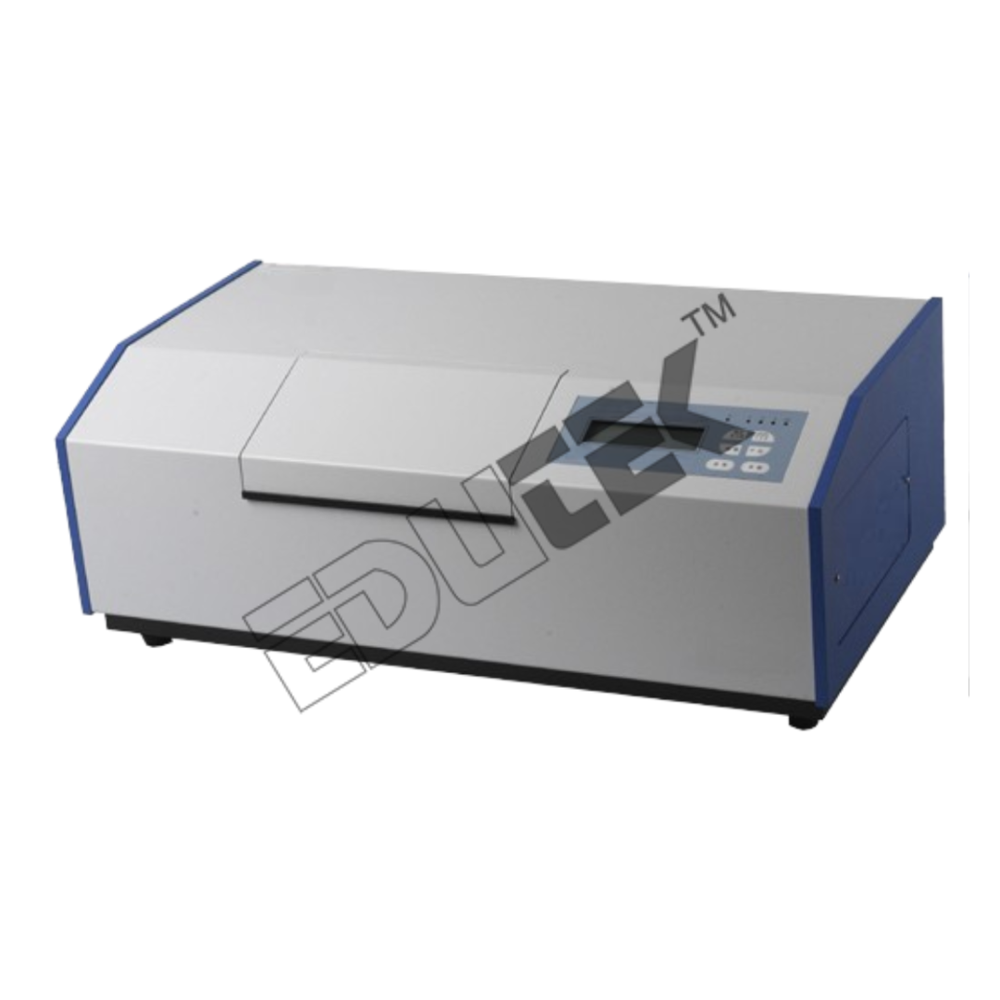

Digital Automatic Polarimeter

Price 100.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Digital Automatic Polarimeter Specification

Color
White & Blue

Usage
Measurement of optical rotation

Dimension (L*W*H)
430 x 320 x 270 mm

Capacity
Sample Tube Length: 200 mm

Power
60 W

Classification
Analytical Instrument

Operate Method
Automatic, Digital with Touch Keypad

Voltage
220 V / 110 V AC

Material
ABS Body with Glass Chamber

Product Type
Digital Automatic Polarimeter

Weight
12 kg

Application
Pharmaceuticals, Chemical Analysis, Food Testing, Sugar Industries

Resolution
0.001°

Interface
RS-232 Data Output

Safety Features
Overload and Short Circuit Protection

Measurement Range
-45° to +45° optical rotation

Compliance
ISO & CE Marked

Lamp Type
LED with Sodium Filter

Calibration
Automatic and Manual Calibration

Sample Chamber
Standard and Jacketed Sample Holders

Operating Environment
Humidity <85% RH

Accuracy
±0.01°

Temperature Range
10°C to 40°C

Data Storage
Internal Memory for Multiple Readings

Wavelength
589 nm (Sodium D-Line)

Display
Large LCD Digital Display

Digital Automatic Polarimeter Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C)

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Packaging Details
carton box, export quality also available

Main Export Market(s)
Asia, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001, 14001 ,CE

About Digital Automatic Polarimeter

Digital Automatic Polarimeter ETA-28

Our precisely designed to perfection Automatic Polarimeter is highly valued in the national and international markets. Use of modern equipments in the Digital Automatic Polarimeter ensures excellent performance with high precision. Today, we are well reckoned as one of the distinguished Fully Automatic Polarimeter Manufacturers based in India.

Specification of Digital Automatic Polarimeter

Measurement Range -45° - +45°, -120 °Z + 120 °Z
Minimum Reading 0.001 Z and 0.01 Z

Accuracy : +(0.01 °Z + Measurement value 0.05 %)

+(0.03 °Z+ Measurement value 0.05 %)

Repeatability (Standard Deviation) : < 0.00
Minimum sample transmittance 1 %

Features of Digital Automatic Polarimeter

Highly Stable & Accurate.
Domestic Advanced digital circuit and microcomputer control.
LCD Display.
Storage of three times results for Re-M (Repetition
measurement) and calculation of average value.

High-Precision Optical Rotation Measurement

With a finely tuned measurement range from -45 to +45, an impressive accuracy of 0.01, and a high resolution of 0.001, this polarimeter ensures exceptionally precise readings for diverse laboratory and industrial applications. Its automatic and manual calibration settings help maintain consistent accuracy over time.

User-Friendly Digital Interface and Versatile Features

Equipped with a large LCD digital display and touch keypad, this instrument offers an intuitive user experience. Data output is simplified via the RS-232 interface, while internal memory allows storage and recall of multiple readings, streamlining workflows in high-volume environments.

Designed for Rigorous Laboratory Demands

Constructed with a sturdy ABS body and glass chamber, the polarimeter supports standard and jacketed sample holders, accommodating varying experimental requirements. Engineered with comprehensive safety features and compliant with ISO and CE regulations, it operates reliably under temperatures from 10C to 40C and humidity below 85% RH.

FAQs of Digital Automatic Polarimeter:

Q: How does the digital automatic polarimeter measure optical rotation?

A: The polarimeter uses polarized light at a specific wavelength (589 nm, Sodium D-Line) passing through a sample. The device detects the angle of rotation caused by optically active substances, providing highly accurate results with automated digital processing.

Q: What steps are involved in calibrating the polarimeter?

A: Calibration can be performed either automatically or manually, following system prompts on the large LCD display. The process typically involves using standard solutions to ensure measurement accuracy, as outlined in the user manual.

Q: When should I use the standard versus the jacketed sample holder?

A: The standard sample holder is ideal for measurements at ambient temperature, while the jacketed holder is recommended when temperature control is required, such as for substances sensitive to temperature variations.

Q: Where can the digital automatic polarimeter be applied?

A: This instrument is suited for use in pharmaceutical labs, chemical analysis, food testing, and sugar industriesanywhere precise measurement of optical rotation is needed for quality control or research purposes.

Q: What are the primary benefits of the digital automatic polarimeter for laboratories?

A: The instrument offers precise, repeatable results, intuitive operation via a digital interface, robust data management options, and compliance with international standards. Its durable design and safety features also enhance workflow reliability.

Q: How does the instrument ensure safety during operation?

A: The polarimeter includes overload and short circuit protection mechanisms, helping to safeguard both the instrument and users during routine operation.

Q: What is the process for exporting or recording measurement data from the device?

A: Readings can be stored in the internal memory for future reference or exported to external systems through the RS-232 interface, enabling seamless data management and analysis.
