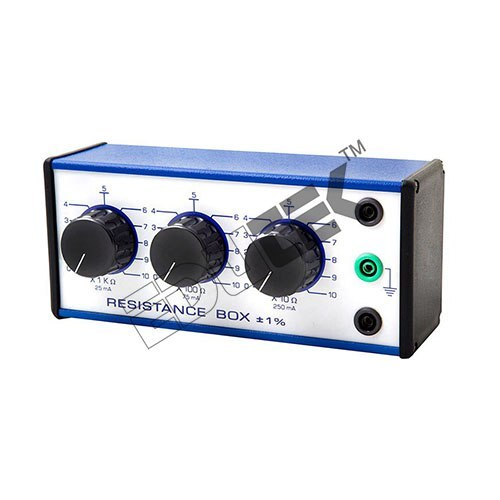

DECADE RESISTANCE BOX THREE DIALS OF 10 OHMS, 100 OHMS, 1000 OHMS

Send Inquiry

Request To Call Back

DECADE RESISTANCE BOX THREE DIALS OF 10 OHMS, 100 OHMS, 1000 OHMS

Get a Price/Quote

MOQ : 1 Piece

DECADE RESISTANCE BOX THREE DIALS OF 10 OHMS, 100 OHMS, 1000 OHMS Specification

Input
Manual rotary dial/resistance selection

Operating Temperature
0°C to 50°C

Power Source
Not required (passive device)

Display Type
Mechanical rotary dials

Output
Selectable resistance value

Usage
ENGINEERING ELECTRONICS EQUIPMENTS

Components
Precision resistors, rotary selector switches, terminals

Power Supply
Not required (passive component)

Resolution
Smallest step: 1 Ohm (via dials)

IP Rating
IP20 (typical for indoor laboratory equipment)

Features
3 dials for decade selection; sturdy enclosure; clear labeling; high accuracy precision resistors.

Interface
4 mm banana sockets

Thermal Conductivity
Standard bakelite enclosure

Response Time
Immediate, dependent on mechanical switching

Product Type
DECADE RESISTANCE BOX THREE DIALS OF 10 OHMS, 100 OHMS, 1000 OHMS

Application
ENGINEERING ELECTRONICS EQUIPMENTS

Rated Voltage
250V MAX (typical for such units)

Supply Voltage
N/A (passive device)

Size
Compact desktop type

Dimension (L*W*H)
Approx. 200 mm x 100 mm x 90 mm

Function
Provides selectable resistance values for calibration and circuit testing.

Color
Black/White panel (as per shown image)

Weight
Approx. 700g

Current Rating
Up to 1A (typical for such boxes, confirm with manufacturer)

Thickness
Panel thickness approx. 3 mm

Capacity
Resistance range selection

Frequency
DC and low frequency AC applications

Terminals
Brass posts with protective nuts

Accuracy
1% (typical for standard boxes)

Safety Compliance
Conforms to IS/IEC standard for laboratory equipment

Enclosure Material
Bakelite or impact-resistant plastic

Markings
Scale clearly marked for easy readability

Contact Material
Copper alloy with nickel plating

Resistance Ranges
0-9,990 Ohms (10 Ohms, 100 Ohms, 1000 Ohms dials)

Application Area
Educational laboratories, calibration, testing, prototyping

Step Value
10 Ohms per step (1st dial), 100 Ohms per step (2nd dial), 1000 Ohms per step (3rd dial)

Insulation Resistance
>100M at 500V DC

Dial Type
Smooth rotary dials with click-stop positions

DECADE RESISTANCE BOX THREE DIALS OF 10 OHMS, 100 OHMS, 1000 OHMS Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash on Delivery (COD), Cash Advance (CA), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C)

Packaging Details
Carton Box, Export Quality also Available

Main Export Market(s)
Asia, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001, 14001, CE

About DECADE RESISTANCE BOX THREE DIALS OF 10 OHMS, 100 OHMS, 1000 OHMS

Explore the top-tier precision of the DECADE RESISTANCE BOX THREE DIALS OF 10 OHMS, 100 OHMS, 1000 OHMScommanding accuracy, valiant performance, and splendiferous reliability. Engineered for essential calibration and prototyping, this special-rate equipment features a compact design with a smooth rotary dial, step-by-step selectable resistance from 09,990 Ohms, and highly visible scale markings. With robust brass terminals, high insulation resistance, and a sturdy bakelite enclosure, this box achieves 1% accuracy. Perfect for engineering electronics equipment, its passive nature provides immediate response and secure safety compliance.

Decade Resistance Box Competitive Edge & Application

This box is engineered for educational labs, calibration tasks, and commercial testing setups, making it extremely versatile. Its splendiferous accuracy and robust build ensure dependable results across multiple surfacesdesktop benches or portable stations. The primary competitive advantage lies in its valiant precision, commanding durability, and the special-rate value offered to exporters, manufacturers, and suppliers across India for extensive electronic applications.

Sample Policy, Domestic Market & Delivery Details

Samples of the Decade Resistance Box can be shipped promptly upon request, with clear policy terms outlined for potential clients. The handover process is streamlined for Indias main domestic markets, ensuring smooth transactions. Typical delivery time is efficient, with products dispatched and delivered within the stipulated period, allowing users to quickly integrate the box into their setups for immediate resistance selection.

FAQs of DECADE RESISTANCE BOX THREE DIALS OF 10 OHMS, 100 OHMS, 1000 OHMS:

Q: How does the DECADE RESISTANCE BOX function for circuit calibration?

A: This box allows users to manually select a precise resistance value using three rotary dials, facilitating accurate calibration and testing in engineering electronic circuits, especially for educational and prototyping applications.

Q: What are the main commercial uses of this resistance box?

A: The device is widely used in educational laboratories, calibration centers, and electronic engineering setups for testing, prototyping, and resistance measurement tasks, offering valiant reliability and splendiferous results.

Q: Where can the Decade Resistance Box be shipped or delivered?

A: It is available for delivery throughout India, with exporter, manufacturer, and supplier options accessible for both domestic and commercial clients. Shipping details and timelines are provided upon order confirmation.

Q: What is the process for requesting a sample unit?

A: Interested clients can request sample units directly. Samples are typically shipped as per the companys sample policy, with prompt handover and efficient delivery to the specified address.

Q: How does this product ensure accuracy and safety compliance?

A: The resistance box offers 1% accuracy due to its precision resistors and conforming to IS/IEC laboratory safety standards, with insulation resistance over 100M for secure operation.

Q: What are the benefits of its rotary dial interface?

A: The mechanical rotary dials provide immediate, reliable response with click-stop positions, allowing for swift resistance changes and ensuring easy readability through clear scale markings.
