Send InquiryConverter Drives With Dc Motors Unit
Price 1000.0 INR/ Unit
MOQ : 1 Unit
Converter Drives With Dc Motors Unit Specification
- Output
- DC Motor Drive
- Operating Temperature
- 0 C to 50 C Celsius (oC)
- Usage
- Industrial automation and machinery
- Power Supply
- Electric
- Sensors Specification
- Integrated temperature and overload sensors
- Thermal Conductivity
- Standard for metallic enclosures Calorie (IT)/second/centimeter/C
- Response Time
- Instantaneous within millisecond range Hours
- IP Rating
- IP21
- Interface
- Terminal connection
- Input
- AC Mains
- Features
- Overload protection, Compact design, Easy installation
- Components
- Converter drive, DC motor, Cooling fan, Terminal strip
- Power Source
- Electric powered
- Product Type
- Converter Drive with DC Motor unit
- Application
- Textile machines, Rolling mills, Elevators, Conveyors
- Rated Voltage
- 220V / 380V Volt (V)
- Supply Voltage
- 220V/380V AC Volt (v)
- Size
- Medium panel mount
- Dimension (L*W*H)
- 500 mm x 350 mm x 200 mm Millimeter (mm)
- Function
- Speed control and conversion for DC motors
- Color
- Grey
- Weight
- Approx. 18 kg Kilograms (kg)
- Warranty
- Thickness
- Standard enclosure thickness 2-3 mm Millimeter (mm)
- Capacity
- 2 HP - 10 HP Kg/hr
- Current Rating
- Up to 30A
- Frequency
- 50 Hz / 60 Hz Hertz (HZ)
Converter Drives With Dc Motors Unit Trade Information
- Minimum Order Quantity
- 1 Unit
- Payment Terms
- Cash in Advance (CID), Cheque, Cash Advance (CA), Telegraphic Transfer (T/T), Letter of Credit (L/C)
- Sample Available
- Yes
- Sample Policy
- Sample costs shipping and taxes has to be paid by the buyer
- Packaging Details
- carton box, export quality also available
- Main Export Market(s)
- Eastern Europe, Middle East, Asia, Western Europe, Africa
- Main Domestic Market
- All India
- Certifications
- ISO 9001, 14001 ,CE
About Converter Drives With Dc Motors Unit
CONVERTER DRIVES WITH DC MOTORS UNIT

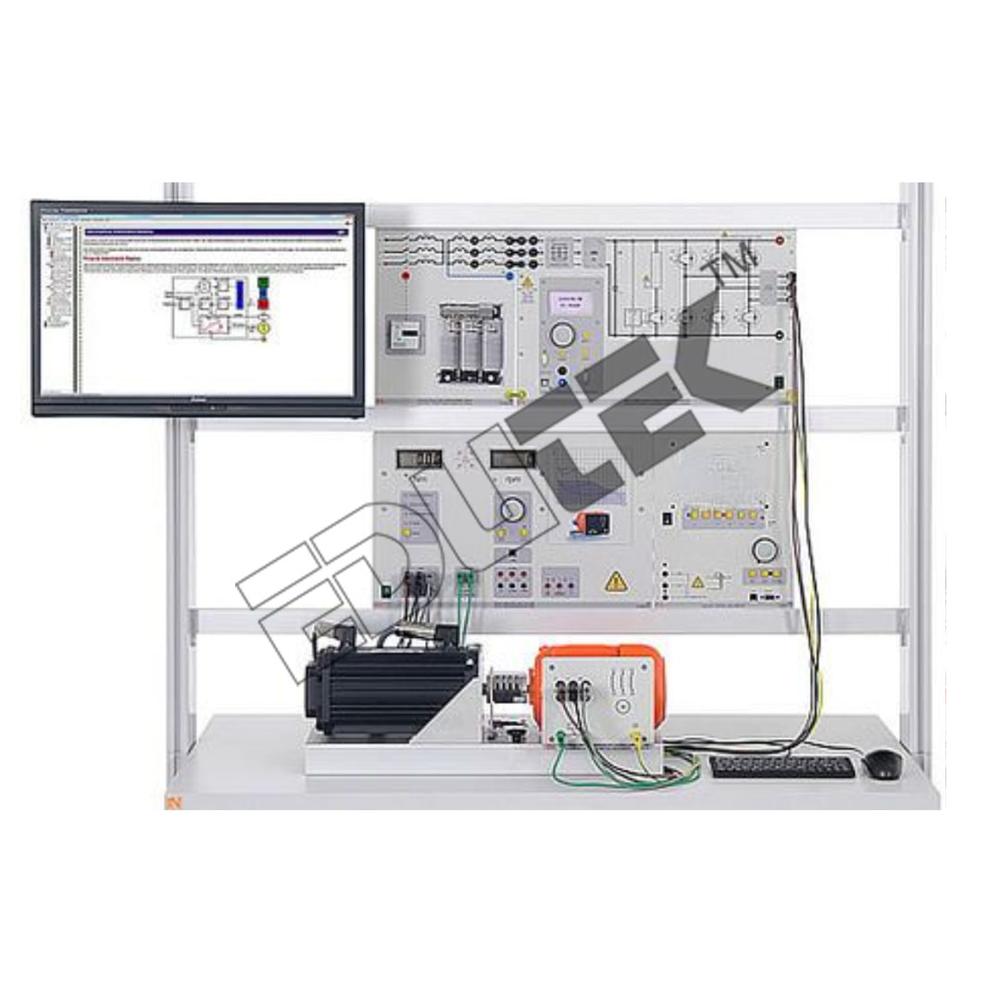

The unit serves to familiarize students with the components and principle of Closed-loop speed control in 1- to 4-quadrant operation with and without cascade current control, Open-loop speed control with one-way converter , Open-loop control with two-way converter , Four-quadrant operation, energy feedback, Closed-loop speed control, current control, cascade control, adaptive control Computer assisted controlled-system and controller analysis, setting parameters, P-, PI-control, Optimization of the controller
- Unit power 300W
- Unit power supply 220V, 60Hz, 3-phase
- Pc and Software and license for operation included
- All required tools for operation included
- Unit complete with all required accessories and machines.
- Installation and Commissioning and training included
Adaptable Installation for Diverse Industrial Needs
Designed for flexibility, this converter drive unit can be mounted on floors or walls to accommodate various spatial requirements in industrial environments. Its medium-sized panel and robust powder-coated steel enclosure make it suitable for demanding applications, ensuring durability and long service life. Installation is straightforward thanks to dual cable entry points and standard enclosure thickness, making it ideal for modernization or retrofitting.
Efficient Speed Control with Safety Features
The drive ensures precise manual or automatic speed control of DC motors up to 3000 RPM, making it suitable for sensitive and variable-load machinery. Integrated thermal and overload sensors protect your equipment, while air-cooled ventilation slots help maintain optimal temperature. Overload protection and easy-to-read indicators enhance user safety and operational transparency.
FAQs of Converter Drives With Dc Motors Unit:
Q: How do I install the converter drive with a DC motor?
A: Installation involves mounting the powder-coated steel cabinet on a floor or wall, connecting AC mains power (220V/380V), and wiring the output terminals to the shunt or series wound DC motor. Top or bottom cable entry options streamline setup. It is recommended to follow manufacturer guidelines and standard safety practices during installation.Q: What motor types are supported by this drive unit?
A: This converter drive supports both shunt wound and series wound DC motors, with a capacity range from 2 HP to 10 HP and current rating up to 30A. The unit is suitable for applications requiring flexible speed and torque control.Q: When should I use manual versus automatic control mode?
A: Use manual mode when direct operator intervention and precise adjustment are needed for specific operations or testing. Automatic mode is preferable for continuous processes or machinery requiring consistent speed control without constant supervision.Q: Where can I use this converter drive in industrial settings?
A: This unit is commonly used in textile machines, rolling mills, elevators, and conveyors. Its construction and compliance with IEC 61800 and IS 10322 Part 5 standards make it suitable for a wide range of industrial automation tasks.Q: What are the benefits of the integrated temperature and overload sensors?
A: The built-in sensors provide continuous monitoring of motor conditions, helping to prevent overheating and overloading. This increases system safety, reduces downtime, and extends the lifespan of your DC motors and the drive itself.Q: How does the cooling system work to maintain safe operation?
A: The unit uses air cooling via ventilation slots to dissipate heat generated during operation. This efficient cooling method, combined with temperature sensors, ensures reliable performance within the 0C50C operating temperature range.Q: What features ensure the drives reliability and user safety?
A: Features such as overload protection, compact design, IP21-rated enclosure, instantaneous response time, and clear analog or digital displays make the unit reliable and user-friendly. Compliance with recognized safety standards further ensures operator and equipment protection.
