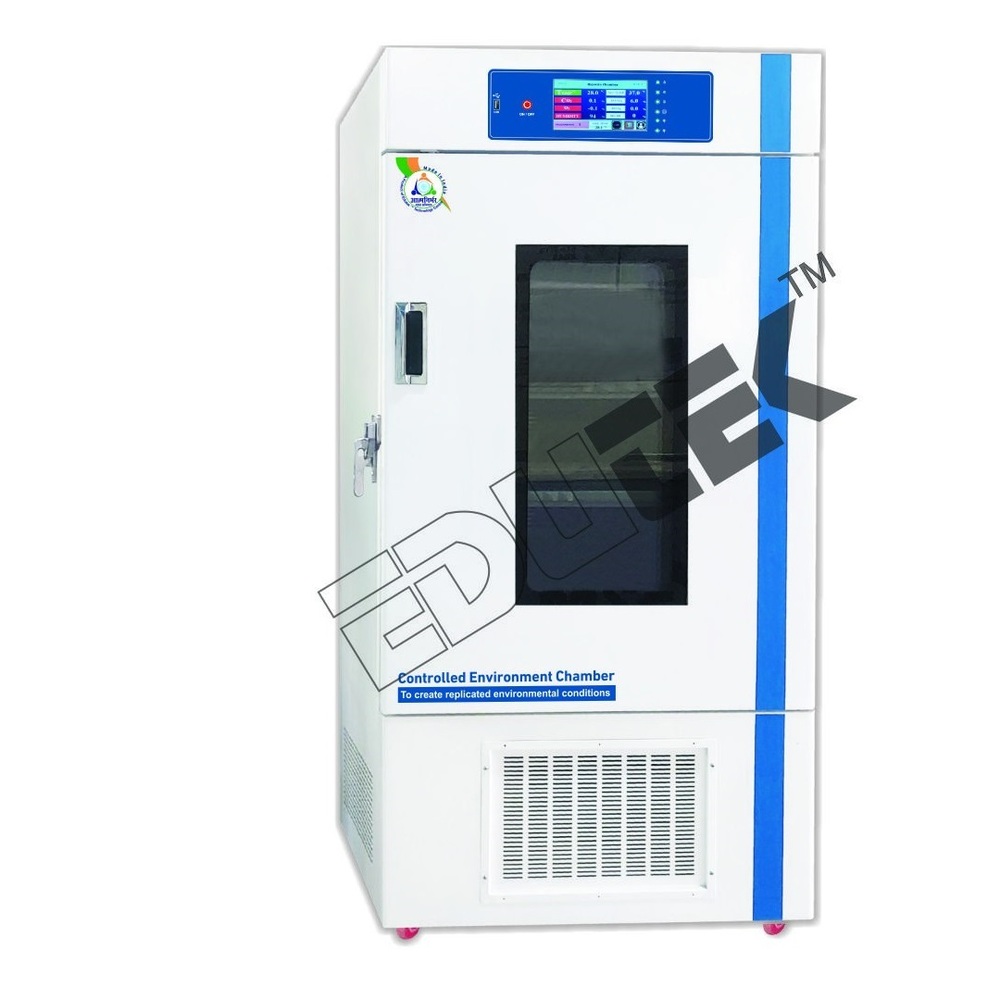

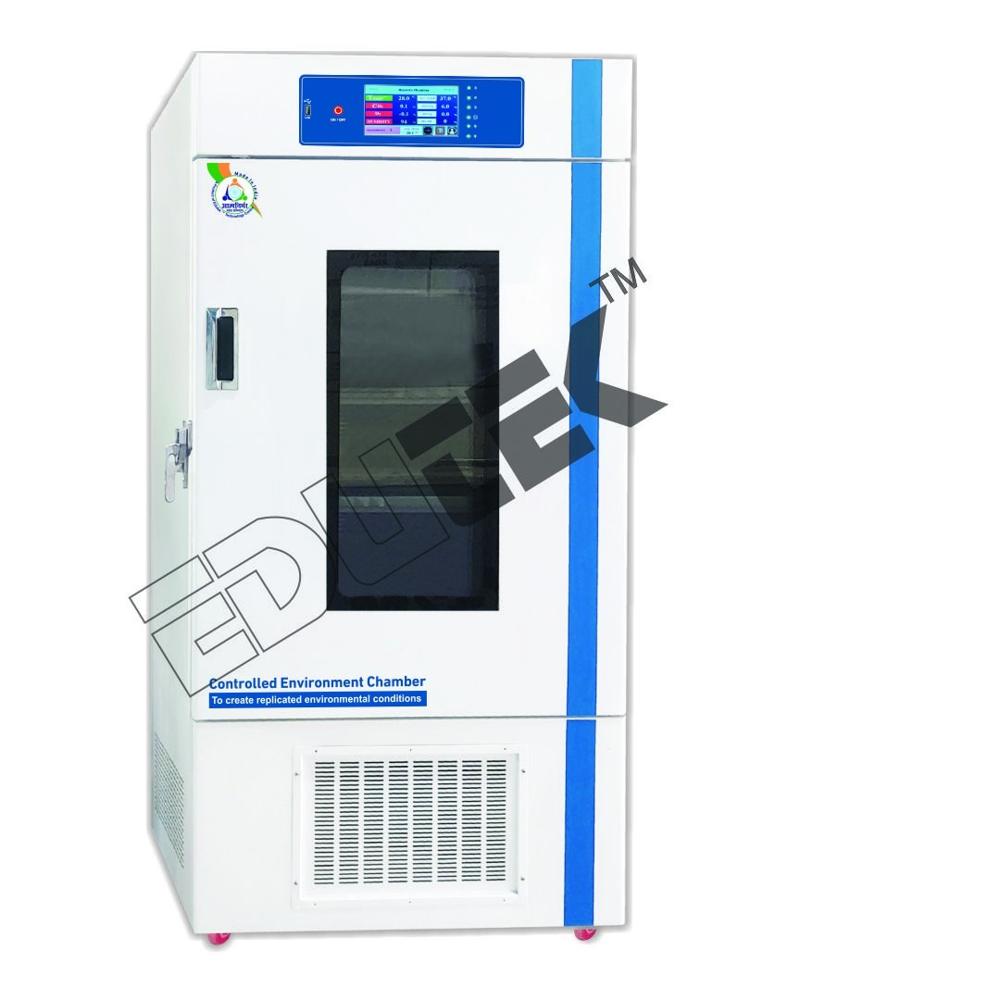

CONTROLLED ENVIRONMENT CHAMBER .

About CONTROLLED ENVIRONMENT CHAMBER .

Tocreate replicated environmental conditions

Controlled Environment Chambers areused to create replicated environmental conditions for research sample growthand testing through temperature, humidity, CO, O Gas and lighting control.

Application/Features

Multi-purpose Chamber StabilityTesting.

Seed Germination.

Tissue Culture.

Algae.

Arabidopsis.

Plant Growth.

Bacterial Culturing.

Drosophila Research, Insect.

Reptile rearing and Research.

Scalable Customizable Options

Air Heating, 6 Side Heating, WaterJacketed.

Ultrasonic Humidifier.

Steam Generator Humidifier.

Ultrasonic Humidifier andDehumidifier.

CO control - CO Incubator Mode

O Control - Hypoxia Incubator Mode.

N Control - Tri-Gas Incubator Mode.

CO Removal system

Dimmable Natural lighting/GrowLighting.

Convenience receptacles.

Extended temperature 2 to 70C.

Controller

The control system was purpose-builtfor controlled environments.

Microprocessor-based PID Temperaturecontroller with PT-100 Sensor.

Control front panel: control panel ofour units comprises of on/off rocker switches for Power, cooling and Humidity(optional).

Construction

Chamber Design: Double walled.

Inner chamber: Inner chamber made ofsteel.

Outer Chamber: Outer chamber made ofMild Steel with powder coated finish.

Door: The door is provided with rubbergasket door closer.

The outer door is made of mild steelsheet and finished with powder coating.

The inner door is made of steel.

The door is provided with latch typelock and Bakelite/PVC handle.

Inner Glass Door: Inner full-lengthglass door is provided to view the samples without disturbing the temperature.

Wheels: The unit is mounted on asturdy steel frame with cast iron/caster wheels for easy movement.

Integrated floor drain.

One access port with air-tight plug.

Shelving

The unit is provided with 4 Nos. Meshtype removable Stainless-Steel Rod Trays at a Fixed Distance.

Heating & Cooling

An energy efficient cooling unit isinstalled in our instrument hermetically sealed compressors.

These compressors are heavy-dutyindustrial type noise free; vibration free and air-cooled.

Compressors start in sequence toprotect the unit from overloading.

We use CFC free environmentallyfriendly refrigerant and compressors of Kirloskar/Tecumseh make, conforming tolatest international standards and guidelines.

TECHNICAL PARAMETERS:

·
