Send InquiryAutomatic Mechanical Soil Compactor
Automatic Mechanical Soil Compactor Specification
- Warranty
- 1 Year
- Core Components
- Electrical Motor Steel Frame
- Measurement Range
- Customizable Range
- Power Source
- Electric
- Feature
- Automatic Compaction for Soil Testing
- Frequency
- 50 Hz
- Model No
- EDU-Comp 2023
- Temperature Range
- Ambient Temperature
- Voltage
- 220V
- Capacity
- High Productivity
- Accuracy
- High Accuracy
- Automation Grade
- Automatic
- Equipment Materials
- Robust Steel Construction
- Type
- Mechanical Soil Compactor
- Usage
- Soil Testing and Compaction
- Display Type
- Digital Display
- Dimension (L*W*H)
- Standard Dimensions (as per model)
- Weight
- Approx. 75 kg
About Automatic Mechanical Soil Compactor

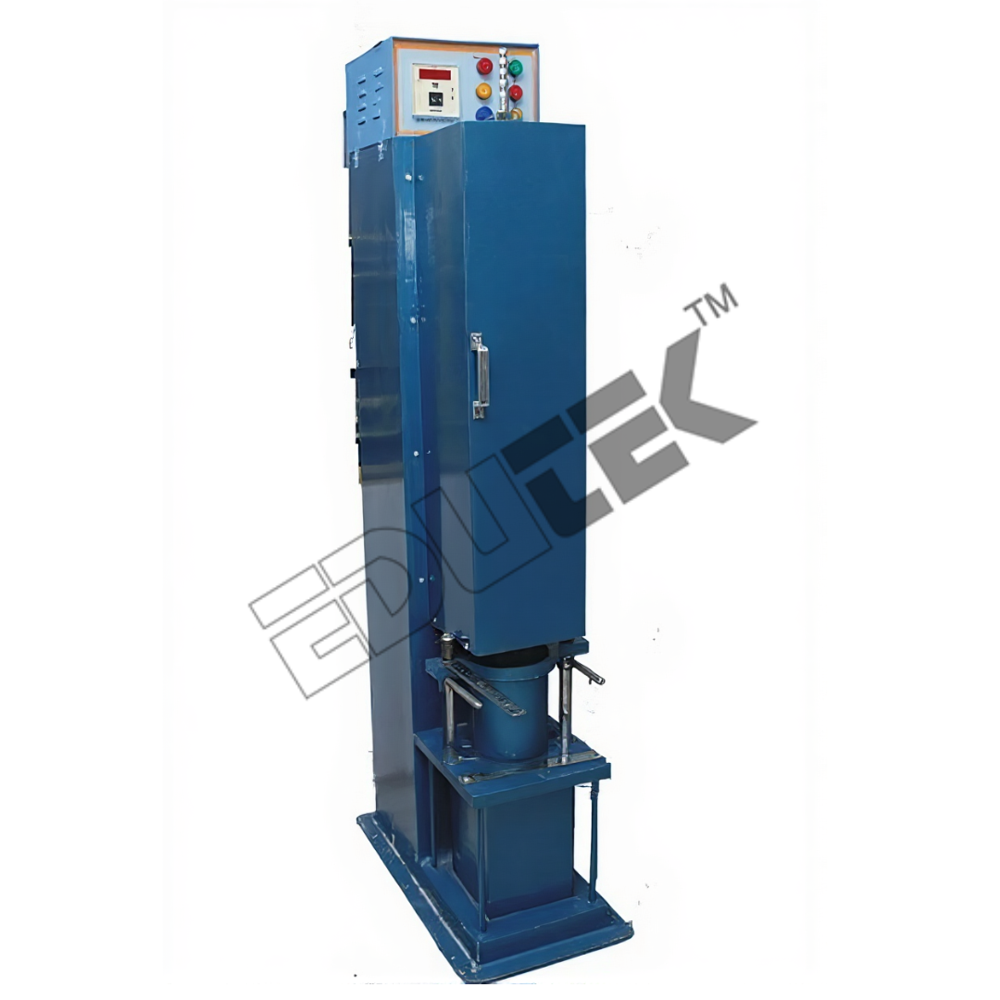

AUTOMATIC MECHANICAL SOIL COMPACTOR
The Automatic Soil Compactor from Edutek is designed to automatically compact soil samples rapidly and produce a uniform degree of compaction.
Use: For compacting soils, for proctor test, CBR tests, Consolidation tests
Standard: BS 1377-4, 1990, EN 1997-2, 1924, 13286-2, 47, ASTM D558, 560,
698, 1557, AASHTO T99, T134, 136, 180, 193
Specifications of Automatic Mechanical Soil Compactor
- 102mm internal diameter(ID) moulds,
- 2.5kg weight with 305mm drop,
- 152mm ID moulds
- 4.5kg weight with 457mm drop.
- Standard 51mm hammer.
- Automatically counts the number of hammer blows and shuts off when a preset number is reached.
FAQs of Automatic Mechanical Soil Compactor:
Q: What is the Automation Grade of the Automatic Mechanical Soil Compactor?
A: The Automation Grade of the Automatic Mechanical Soil Compactor is Automatic.Q: What is the Capacity of the Automatic Mechanical Soil Compactor?
A: The Capacity of the Automatic Mechanical Soil Compactor is High Productivity.Q: What are the core components of the Automatic Mechanical Soil Compactor?
A: The core components of the Automatic Mechanical Soil Compactor include an Electrical Motor and Steel Frame.Q: What is the warranty period for the Automatic Mechanical Soil Compactor?
A: The warranty period for the Automatic Mechanical Soil Compactor is 1 Year.Q: What is the Display Type of the Automatic Mechanical Soil Compactor?
A: The Display Type of the Automatic Mechanical Soil Compactor is Digital Display.
