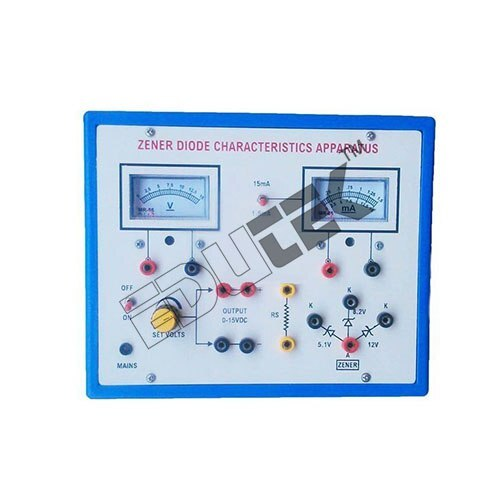

Send InquiryZENER DIODE V-I CHARACTERISTICS APPARATUS WITH ALUMINUM PANEL & SQUARE METERS (FORWARD & REVERSE)
MOQ : 1 Piece
ZENER DIODE V-I CHARACTERISTICS APPARATUS WITH ALUMINUM PANEL & SQUARE METERS (FORWARD & REVERSE) Specification
- Components
- Zener diode, resistors, variable DC supply, ammeter, voltmeter, aluminum panel, sockets, test points
- Usage
- ENGINEERING ELECTRONICS INSTRUMENTS
- Response Time
- Instantaneous analog readings
- Sensors Specification
- Panel meters for voltage and current
- Resolution
- Milliamps (ma) and Volts (V) marking on panel meters
- Display Type
- Analog Panel Meters (Square, for volt & amp readings)
- Interface
- Banana socket terminals for external connection
- Output
- Forward and reverse V-I measurements via panel meters
- Input
- Controlled DC variable supply
- Features
- Aluminum panel, square analog meters, protected circuit, user-friendly design, forward & reverse bias.
- Power Source
- AC mains (built-in transformer and DC conversion)
- Power Supply
- 220V AC, 50 Hz
- Operating Temperature
- 0-50C (typical lab environment)
- Product Type
- ZENER DIODE V-I CHARACTERISTICS APPARATUS WITH ALUMINUM PANEL & SQUARE METERS (FORWARD & REVERSE)
- Application
- ENGINEERING ELECTRONICS INSTRUMENTS
- Rated Voltage
- Up to 30V (as allowed by panel arrangement)
- Supply Voltage
- 0-30V DC (Variable)
- Size
- Desktop laboratory apparatus
- Dimension (L*W*H)
- 300 mm x 250 mm x 125 mm (approx.)
- Function
- To study the V-I characteristics of a Zener diode in forward and reverse bias.
- Color
- Silver (Aluminum Panel with printed markings)
- Weight
- Approx. 3-4 kg
- Capacity
- Panel mounted for 1 simultaneous diode device analysis
- Thickness
- 2 mm (Aluminum Panel)
- Current Rating
- 0-100 mA (on panel ammeter)
- Frequency
- 50 Hz (AC supply for built-in power)
- Panel Material
- Anodized aluminum with permanent button printing
- Max Forward Current
- Limited by series resistance, typically under 100 mA
- Test Points
- Multiple output terminals for oscilloscope & meter connection
- Included Accessories
- Mains cord, instructions, test leads, fitted fuse
- Meter Type
- Analog (Mechanical pointer type, square shape)
- Mounting Type
- Tabletop, non-slip rubber feet
- Cabinet Construction
- Powder coated metal base with aluminum top
- Overload Protection
- Fuse protected AC input
- Max Reverse Voltage
- Up to Zener breakdown (as per installed diode, typically 6V/9V/12V/24V options)
- Diode Type
- Pre-installed Zener diode with labeled test point
ZENER DIODE V-I CHARACTERISTICS APPARATUS WITH ALUMINUM PANEL & SQUARE METERS (FORWARD & REVERSE) Trade Information
- Minimum Order Quantity
- 1 Piece
- Payment Terms
- Cash on Delivery (COD), Cash Advance (CA), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C)
- Packaging Details
- Carton Box, Export Quality also Available
- Main Export Market(s)
- Asia, Middle East, Africa
- Main Domestic Market
- All India
- Certifications
- ISO 9001, 14001, CE
About ZENER DIODE V-I CHARACTERISTICS APPARATUS WITH ALUMINUM PANEL & SQUARE METERS (FORWARD & REVERSE)
Specification:
ZENER DIODE V-I CHARACTERISTICS APPARATUS WITH ALUMINUM PANEL & SQUARE METERS (FORWARD & REVERSE)
To study forward reverse V I characteristics of zener diode.
Complete Instrument with power supply, meters, zener diodes, connections of supplies
Comprehensive Zener Diode Analysis
This apparatus enables in-depth exploration of V-I characteristics for Zener diodes, supporting both forward and reverse bias studies. Pre-installed Zener diodes and labeled test points let users analyze the breakdown region and understand diode behavior in various voltage ranges using safe, precise analog meter readings.
Durable Design and User Safety
Crafted with a 2 mm anodized aluminum panel and secure powder-coated metal base, the instrument ensures longevity for frequent laboratory use. The circuit is protected by a fuse on the AC input, and the panels ergonomic design with non-slip feet guarantees stability and user safety during experiments.
Versatile Laboratory Application
The devices variable DC supply (0-30V) and square analog meters allow for precise forward and reverse V-I measurements. Banana socket terminals make connectivity with external meters and oscilloscopes straightforward, expanding its utility for engineering labs, manufacturing setups, and educational institutions.
FAQs of ZENER DIODE V-I CHARACTERISTICS APPARATUS WITH ALUMINUM PANEL & SQUARE METERS (FORWARD & REVERSE):
Q: How do I use the apparatus to measure Zener diode V-I characteristics?
A: Connect the included test leads between the labeled test points and panel meters to measure the voltage and current. Adjust the variable DC supply, observing readings in forward and reverse bias using the analog voltmeter and ammeter. Multiple output terminals also allow oscilloscope use for enhanced analysis.Q: What is the benefit of using this apparatus in engineering education or labs?
A: This device offers hands-on learning for students and professionals to understand Zener diode behavior, breakdown voltage, and current-voltage relationships, providing instantaneous, accurate readings with clear analog meters. Its robust design and straightforward interface ensure reliable experimentation and teaching.Q: When should I use the fuse replacement provided with the kit?
A: If the apparatus ceases to power on or if there is no meter response, check the AC supply fuse. Replace it with the spare provided, ensuring the circuit is powered off for safety. The fuse protects against accidental overload, safeguarding the internal components and user.Q: Where can external measurement devices be connected on the panel?
A: The apparatus features multiple banana socket terminals clearly marked for voltage and current measurement points, making connection to external multimeters or oscilloscopes simple. These terminals are located on the front panel, near the corresponding analog meters.Q: What makes the analog meters on this device reliable for precise measurement?
A: The square, mechanical pointer-type meters provide high-resolution readings in both milliamps (ma) and volts (V), with immediate response times. Their robust construction ensures durability and consistent accuracy for repeated lab use, enabling detailed V-I characteristic plotting.Q: How does the device protect itself from electrical overloads during experiments?
A: The apparatus includes a fuse-protected AC mains input. If excessive current occurs, the fuse interrupts the circuit, preventing damage to sensitive components and ensuring user safety. Always use the rated fuse, as specified in the manual, for optimal operation.
