About ZENER DIODE V-I CHARACTERISTICS
Specification:

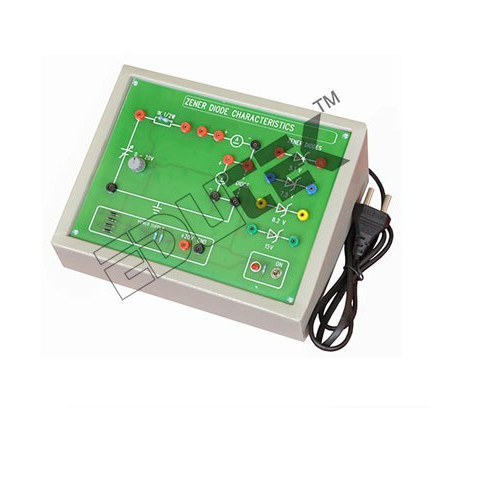

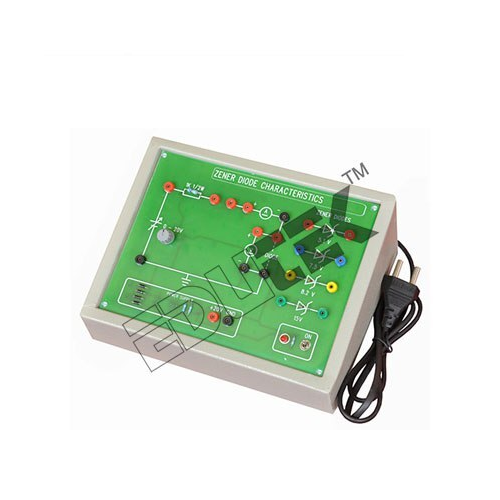

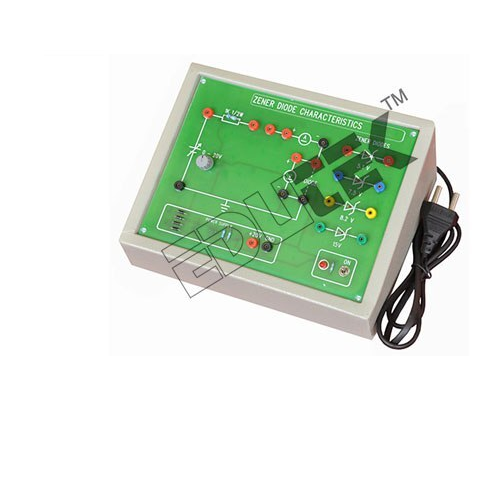

ZENER DIODE V-I CHARACTERISTICS
To draw the V-I characteristics of Zener diodes in forward and reverse bias conditions.
This unit consists a variable DC regulated power supply of 0-20v 250mA.
The Circuit layout is designed on FR-4 type Glass Epoxy PCB with masked copper track lines.
All testing points are Provision with 2mm socket for proper connectivity
Set of 2mm patch cards.
Comprehensive Zener Diode DemonstrationExperience hands-on analysis of V-I characteristics with this factory-calibrated Zener diode test module, optimized for accuracy and safety. Suitable for electronic engineering labs, the unit accommodates a single Zener diode, allowing clear demonstration of breakdown voltage properties under controlled conditions.
Safety and Reliability AssuredEquipped with fuse protection and insulated color-coded test points, this instrument prioritizes both user safety and equipment longevity. The enclosed panel construction further adds an extra layer of protection, making the setup robust and dependable throughout repeated academic use.
User-Friendly and Ready to UseSupplied ready to operate with all necessary accessories, including test leads and a comprehensive manual, the panel simplifies the study process for students. With easy-to-use controls and instantaneous analog/digital display response, experimental results can be recorded effortlessly, enhancing the learning experience.
FAQs of ZENER DIODE V-I CHARACTERISTICS:
Q: How do I use the Zener Diode V-I Characteristics panel to study diode behavior?
A: To use the panel, connect the supplied test leads to the color-coded terminals and adjust the variable potentiometer to regulate the DC input voltage. Observe the voltage and current readings on the analog or digital meters as the Zener diode is operated in both forward and reverse bias modes.
Q: What safety features are included in this instrument?
A: The unit includes fuse protection to guard against overloads, short circuit protection, and color-coded insulated test points that reduce shock hazards. The enclosed heavy-duty panel construction provides additional physical protection for both users and internal components.
Q: Where is this instrument best utilized?
A: This Zener diode characteristic panel is ideally suited for undergraduate engineering laboratories, technical colleges, electronic training workshops, and research environments that require demonstration and analysis of semiconductor diode properties.
Q: What accessories are supplied with the test module?
A: The unit is provided with essential accessories, including test leads, a detailed user manual, and a fuse replacement kit. On request, a factory calibration certificate can be obtained to verify accuracy.
Q: What process does the instrument use for demonstrating breakdown voltage?
A: By varying the DC voltage input using the potentiometer and monitoring the V-I response, the instrument illustrates the point of Zener breakdown. The built-in meters offer real-time voltage and current data, clarifying the Zener diodes behavior under increasing reverse bias.
Q: When should calibration be performed or verified?
A: Factory calibration is standard and a calibration certificate is available upon request. Annual calibration checks are recommended for laboratory use to maintain measurement accuracy, particularly before academic terms or after extensive use.
Q: What benefits does this panel offer for engineering students?
A: Students gain practical understanding of semiconductor physics, circuit response, and safe lab practices. The panels reliable readings, easy controls, and protective features foster a productive learning environment and build foundational skills in electronics.
