VOLTAGE REGULATION USING ZENER DIODE & TRANSISTORS WITH ALUMINUM PANEL & DIGITAL PANEL

Name: VOLTAGE REGULATION USING ZENER DIODE & TRANSISTORS WITH ALUMINUM PANEL & DIGITAL PANEL
Brand: EDUTEK INSTRUMENTATION
Price: 1200.0 INR
Availability: InStock

Price 1200.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

VOLTAGE REGULATION USING ZENER DIODE & TRANSISTORS WITH ALUMINUM PANEL & DIGITAL PANEL Specification

Usage
ENGINEERING ELECTRONICS INSTRUMENTS

Product Type
VOLTAGE REGULATION USING ZENER DIODE & TRANSISTORS WITH ALUMINUM PANEL & DIGITAL PANEL

Application
ENGINEERING ELECTRONICS INSTRUMENTS

Function
To Study voltage regulation using three terminal voltage regulators.

Warranty
1 Year

Features
Instrument comprises of AC Power Supply, two voltmeters to measure Input & Output Voltage, three type of regulators, load Resistances selectable using band switch & all important connections brought out on 4mm Sockets.

VOLTAGE REGULATION USING ZENER DIODE & TRANSISTORS WITH ALUMINUM PANEL & DIGITAL PANEL Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash on Delivery (COD), Cash Advance (CA), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C)

Packaging Details
Carton Box, Export Quality also Available

Main Export Market(s)
Asia, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001, 14001, CE

About VOLTAGE REGULATION USING ZENER DIODE & TRANSISTORS WITH ALUMINUM PANEL & DIGITAL PANEL

Specification:

VOLTAGE REGULATION USING ZENER DIODE & TRANSISTORS WITH ALUMINUM PANEL & DIGITAL PANEL

Objective: To Study voltage regulation using three terminal voltage regulators.

Features: Instrument comprises of AC Power Supply, two voltmeters to measure Input & Output Voltage, three type of regulators, load Resistances selectable using band switch & all important connections brought out on 4mm Sockets.

Robust Educational Instrument

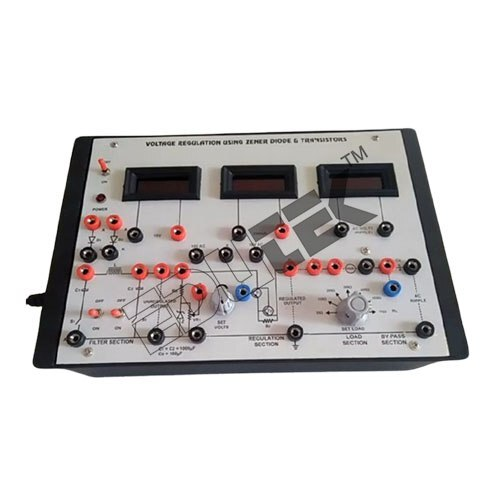

This instrument is designed for engineering students and educators, providing a reliable platform for studying voltage regulation. Crafted with an aluminum panel for durability and a digital display for precise measurement, it seamlessly integrates into electronics training environments.

Comprehensive Experimentation

Featuring three different regulators, selectable load resistances, and dual voltmeters for real-time monitoring, this system supports a wide array of voltage regulation experiments. Users can actively explore diverse circuit behavior and better understand voltage stabilization principles.

User-Friendly Design

All connections are conveniently provided on 4mm sockets, making setup and reconfiguration straightforward. The band switch allows quick selection of load resistances, supporting efficient experimentation and minimizing setup time in busy lab settings.

FAQ's of VOLTAGE REGULATION USING ZENER DIODE & TRANSISTORS WITH ALUMINUM PANEL & DIGITAL PANEL:

Q: How does the voltage regulation system using Zener diode and transistors operate?

A: This system utilizes Zener diodes and transistors within three types of voltage regulators to maintain a stable output regardless of input voltage fluctuations. The design enables users to observe the regulation process and analyze the effects of different circuit configurations.

Q: What are the key benefits of using this instrument in educational settings?

A: Students gain practical experience with voltage regulation concepts, including real-time measurement of input and output voltages. The system's clear panel layout and user-friendly features facilitate hands-on learning, making it easier to grasp theoretical concepts.

Q: When should this product be used in electronics engineering studies?

A: This instrument is ideally used during practical sessions involving voltage regulation experiments in engineering electronics curricula. It's valuable when demonstrating circuit stabilization or comparing different voltage regulation methods.

Q: Where can the voltage regulation trainer be installed or operated?

A: Designed mainly for laboratory and classroom environments, it requires a standard AC power supply and a workspace equipped for electronic instruments. Its durable aluminum construction ensures safe and stable use in academic institutions.

Q: What is the process for measuring voltages with this equipment?

A: Users connect the voltmeters via the provided 4mm sockets to the input and output, then select the desired load resistance with the band switch. The digital panel enables precise readings, helping students monitor the effect of different regulation techniques.

Q: How is this system advantageous compared to conventional voltage regulation kits?

A: Unlike basic kits, this instrument offers digital monitoring, multiple regulator types, and rapid load adjustment, enriching the experimental process. It streamlines learning and allows for more comprehensive investigation of voltage regulation principles.
