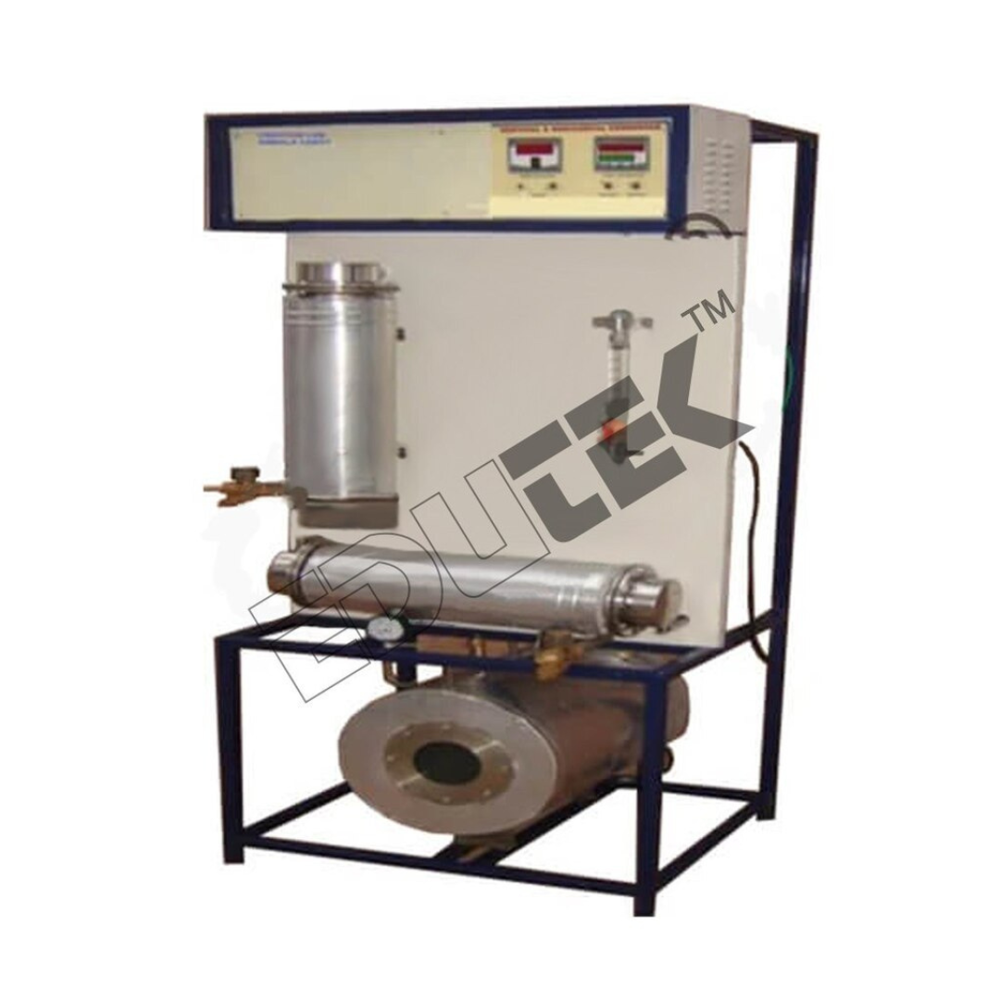

Send InquiryVERTICAL & HORIZONTAL CONDENSER APPARATUS
Price 500.0 INR/ Piece
MOQ : 1 Piece
VERTICAL & HORIZONTAL CONDENSER APPARATUS Specification
- Accuracy
- 1 C C
- Product Type
- VERTICAL & HORIZONTAL CONDENSER APPARATUS
- Measurement Range
- Flow rate: 0.1 2.0 L/min, Temperature: 0 100 C
- Warranty
- 1 Year
- Voltage
- 220-230V AC Volt (v)
- Automation Grade
- Manual
- Temperature Range
- Ambient to 100 C or as per experiment Celsius (oC)
- Feature
- Dual configuration for vertical & horizontal setup, strong frame, easy maintenance
- Model No
- HTL-VC/HC-2024
- Frequency
- 50 Hz Hertz (HZ)
- Application
- Heat Transfer Laboratory Equipment
- Power Source
- Electric
- Capacity
- 1 to 5 Liters/hr (depending on model and application) Ltr/hr
- Usage
- Heat Transfer Laboratory Equipment
- Core Components
- Condenser Glass Tubes, Water Circulation System, Heater, Measuring Cylinder, Piping, Frame
- Equipment Materials
- Borosilicate Glass, Stainless Steel, Mild Steel with Powder Coating
- Type
- Vertical & Horizontal Condenser Apparatus
- Display Type
- Analog/Digital Thermometers attached
- Dimension (L*W*H)
- Approx. 1500 x 500 x 1200 mm (customized models available) Millimeter (mm)
- Weight
- Approx. 35-60 kg (depending on model) Kilograms (kg)
- Heater Type
- Immersion Heater, ISI Marked
- Number of Condenser Tubes
- 2 (Vertical and Horizontal Arrangement)
- Safety Features
- Over-temperature Protection, Phase Cut-off Switch
- Cooling Water Required
- Continuous, minimum 2 L/min
- Frame Construction
- MS square pipe with powder coating
- Installation Area
- Bench-top model
- Max. Working Pressure
- 1.5 kg/cm2 (for water circuit)
- Sample/Specimen
- Water (standard), Other liquids on request
- Heating Power
- 1 KW - 2 KW (as per model)
- Water Flow Control
- Manual Valve
- Instrumentation
- Temperature Sensors, Rotameter, Thermometers
- Glassware Quality
- Borosilicate 3.3
VERTICAL & HORIZONTAL CONDENSER APPARATUS Trade Information
- Minimum Order Quantity
- 1 Piece
- Payment Terms
- Cash on Delivery (COD), Cash Advance (CA), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C)
- Packaging Details
- Carton Box, Export Quality also Available
- Main Domestic Market
- All India
- Certifications
- ISO 9001, 14001, CE
About VERTICAL & HORIZONTAL CONDENSER APPARATUS
Specification:
VERTICAL & HORIZONTAL CONDENSER APPARATUS
Vertical/ Horizontal Type Condenseris widely used to check thermal conductivity.
The Condenser is available in asturdy construction that ensures optimum performance for longer period of time.The Condenser is made using quality grade material and offered in vertical aswell as horizontal type construction. Vertical/ Horizontal Type Condenser canbe availed in different specifications to suit individual requirement.
Shell & Tube Type Condensers AreWidely Used In Various Industries. The Present Set-Up Offers A ComparativeStudy Of Vertical & Horizontal Condenser, Which Can Be Operated One At ATime.
Condenser Consists Of Stainless SteelShell, With Stainless Steel Tubes. Cold Fluid Flows Through Inside the Tubesand Steam Flows through the Shell. Valves Are Provided To Control The FlowRates Of Cold Fluids. Flow Rate Of Cold Water Is Measured Using A Rota Meter.Shell Is Fitted With Steam Traps From Where Condensate Is Collected InMeasuring Cylinder. Temperature Of Inlet And Outlet Of Both Hot & ColdFluids Are Measured By Temperature Sensors.
Experimentation
To Determine the Overall HeatTransfer Co-Efficient and Film Co-Efficient For Vertical and HorizontalCondenser
Key Features of Vertical Horizontal TypeCondenser:
Check thermal conductivity.
Sturdy construction.
Optimum performance. Long lastingusage.
Made using quality grade material.
Offered in vertical as well ashorizontal type construction.
Utilities Required:
Water Supply 20 Lit/Min (Approx.) andDrain
Electricity Supply: 1 Phase, 220 VAc, 4 Kw
Floor Area of 15 M X 1m
Technical Details
System Steam to Water
Condensers 2 Nos (Vertical &Horizontal) Insulated By Ceramic Wool and Cladding by Aluminum Foil
Shell Material Stainless Steel InnerDia 100 Mm, Length 500 Mm (Approx.)
Tubes Od 127mm, Length Of Tubes 500mm
Condensate Measurement MeasuringCylinder & Stopwatch
Water Flow Measurement: Rotameter
Steam Generator: Made Of StainlessSteel Fitted With Level Indicator, Pressure Gauge, Safety Valve, Drain andInsulated With Ceramic Wool & Cladding With Aluminum Foil
Heaters: Nichrome Wire Heater (2 Nos)
Key Features of Vertical Horizontal TypeCondenser:
Check thermal conductivity.
Sturdy construction.
Optimum performance. Long lastingusage.
Made using quality grade material.
Offered in vertical as well ashorizontal type construction.
Dual Configuration for Versatile Experimentation
The apparatus allows users to set up both vertical and horizontal condenser arrangements, making it versatile for a wide range of heat transfer studies. This adaptability caters to comparative experiments on condenser performance, enhancing understanding of thermal processes.
Precision Controls and Safety Features
Equipped with manual water flow control, accurate instrumentation, and over-temperature protection, the system ensures reliable, safe operations. The immersion heater (ISI marked) and digital/analog displays provide accurate temperature readings and operational safety during experiments.
Durable Construction and Easy Maintenance
Built with powder-coated mild steel and high-grade borosilicate glassware, the apparatus is engineered for longevity and stability. The modular frame design allows for straightforward maintenance while its compact bench-top dimension suits various laboratory environments.
FAQs of VERTICAL & HORIZONTAL CONDENSER APPARATUS:
Q: How do I operate the Vertical & Horizontal Condenser Apparatus in a heat transfer experiment?
A: To operate the condenser apparatus, install it on a bench-top, connect the continuous cooling water supply at a minimum flow of 2 L/min and insert your sample (typically water). Set the heating power (1 KW-2 KW), monitor temperature and flow rate using the attached sensors and rotameter, and adjust water flow manually for desired experimental conditions.Q: What is the benefit of having both vertical and horizontal condenser tube arrangements?
A: This dual configuration enables users to compare and analyze heat transfer efficiency in both orientations, allowing for a more comprehensive understanding of thermal exchange behaviours. It also increases the applicability of the apparatus across various experimental setups.Q: When is the over-temperature protection feature activated?
A: The over-temperature protection automatically engages if the internal temperature exceeds the safety threshold set for the experiment, thereby preventing potential damage to the apparatus and ensuring user safety.Q: Where should the Vertical & Horizontal Condenser Apparatus be installed?
A: The apparatus is designed as a bench-top model and should be placed securely on a laboratory bench. Ensure proximity to a water source and electrical outlet with 220-230V AC supply for proper operation.Q: What type of specimens can be used with the condenser apparatus?
A: Water is the standard specimen; however, the apparatus can accommodate other compatible liquids upon request, provided they are suitable for borosilicate glass and stainless steel contact surfaces.Q: What is the capacity and working range of the apparatus?
A: Depending on the model and application, it can handle a capacity of 1 to 5 liters per hour. The measurement range spans from 0.1 to 2.0 L/min for flow rate and 0 to 100C for temperature, with an accuracy of 1C.
