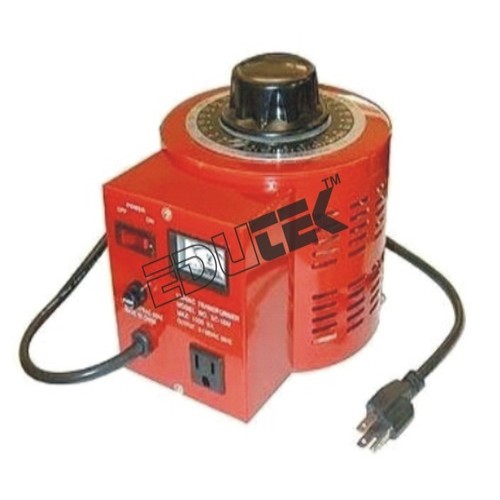

Variable Transformer

Get a Price/Quote

MOQ : 1 Piece

Variable Transformer Specification

Power Supply
Single Phase AC

Temperature Resistance
Up to 60C

Display Type
Analog

Control Type
Manual Knob Control

Features
230 / 240 V single phase input. 13 A output

Shape
Rectangular

Accuracy
1% Voltage Setting

Type
Variable Transformer

Dimension (L*W*H)
200 mm x 140 mm x 220 mm

Equipment Type
Bench Type

Equipment Materials
Copper Winding, Epoxy Coated Iron Core

Power
2000 VA

Voltage
Input 230 / 240 V, Output 0-270 V

Material
Sturdy Iron Body

Application
Voltage Regulation, Testing Laboratories, Industrial control

Compliance
IEC Standards

Frequency
50 Hz

Cooling Type
Air Cooled

Mounting Type
Base Mounted

Finish
Powder Coated

Operating Temperature
0C to 40C

Adjustment Type
Continuous Adjustable

Insulation Voltage
2 kV

Weight
Approx. 7.5 kg

Protection
Overload Protection

Terminal Type
Screw Type Terminals

Variable Transformer Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C)

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Packaging Details
carton box, export quality also available

Main Export Market(s)
Africa, Asia, Eastern Europe, Western Europe, Middle East

Main Domestic Market
All India

Certifications
ISO 9001, 14001 ,CE

About Variable Transformer

VARIABLE TRANSFORMER,BENCHTOP

Specification of Variable Transformer

230 / 240 V single phase input.
13 A output.
Output voltage range 112% of input.
Integral safety mains tester.
Illuminated power on/off switch.
Output on/off switch and control knob.
1 m 3-core input cable with plug.
Output protection fuse.

Efficient Voltage Regulation

Powered by single-phase AC input, the transformer delivers consistent and adjustable output from 0 to 270 V, ensuring reliable voltage control for sensitive equipment and testing requirements. Its 1% voltage setting accuracy supports precise experiments and industrial processes.

Robust Construction for Safety and Longevity

Built with sturdy iron body, copper windings, and epoxy-coated iron core, this unit is designed for durability and effective performance. Powder coating enhances corrosion resistance, and overload protection safeguards both equipment and users.

User-Friendly Design and Compliance

Equipped with a manual knob for seamless adjustment, the transformer features screw-type terminals and an analog display for real-time monitoring. Full IEC-standard compliance assures quality and safety for professional use.

FAQs of Variable Transformer:

Q: How is the Variable Transformer installed and used?

A: It is base-mounted for stable placement and equipped with screw-type terminals for secure electrical connections. Simply connect the input and output wires, then use the manual knob to adjust the output voltage continuously as needed.

Q: What makes this transformer suitable for industrial and laboratory applications?

A: Its precise voltage regulation, 1% accuracy, overload protection, and sturdy construction enable safe and reliable performance in testing laboratories, industrial control systems, and any environment requiring stable voltage supply.

Q: Where can the Variable Transformer be safely operated?

A: The unit is designed for indoor use on a bench or similar stable surface, operating efficiently within an ambient temperature of 0C to 40C. Its air-cooled system prevents overheating during extended usage.

Q: What is the process for adjusting the voltage output?

A: Voltage is changed by simply rotating the analog display knob, offering continuous adjustment from 0 to 270 V. The output can be monitored in real time via the analog display to achieve the desired voltage level.

Q: How does overload protection benefit the user?

A: Overload protection automatically disconnects or limits the current during excess load situations, preventing equipment damage and ensuring user safety during operation.

Q: When should this transformers temperature resistance feature be considered?

A: The transformer is safe to use in environments where temperatures may reach up to 60C, thanks to its robust materials and cooling system. However, standard operation is recommended within 0C to 40C for optimal performance.
