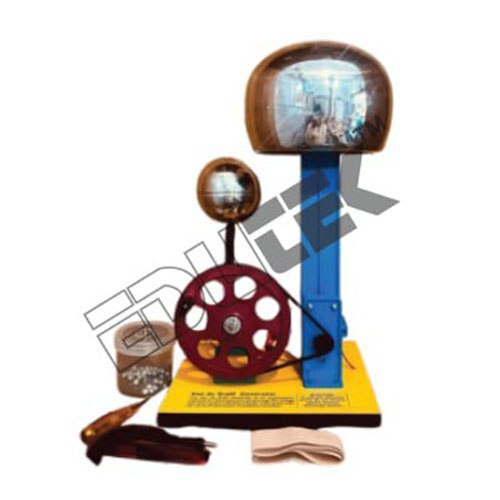

VAN DE GRAAFF MANUAL.

Get a Price/Quote

MOQ : 1 Piece

VAN DE GRAAFF MANUAL. Specification

Interface
Manual operation

Input
Manual mechanical input

Response Time
Immediate upon operation

Operating Temperature
Room temperature (10-40°C recommended)

Features
Demonstrates electrostatic phenomena, Safe manual operation, Durable construction

Charging Voltage
Up to 200,000 volts

Output
High voltage static electricity

Components
Base, insulating column, moving belt, metal dome, hand crank

Power Supply
Hand operated

IP Rating
Not rated

Usage
ENGINEERING ELECTRONICS INSTRUMENTS

Power Source
Manual (Hand Crank)

Product Type
VAN DE GRAAFF MANUAL.

Application
ENGINEERING ELECTRONICS INSTRUMENTS

Rated Voltage
Not applicable (Manual Operation)

Size
Standard lab size

Dimension (L*W*H)
300 x 200 x 700 mm (approx.)

Function
Manual electrostatic generator for educational demonstration

Color
Silver/Grey

Weight
Approx. 5 Kg

Current Rating
Extremely low (<1 mA)

Capacity
Generates up to 200,000 volts (subject to conditions)

Max Output Voltage
Up to 200 kV (dependent on environmental factors)

Operation Mode
Manual only; no external power required

Maintenance
Periodic cleaning of belt and dome for optimal performance

Safety Notice
For educational and demonstration use only; avoid use with sensitive electronic components

Base Material
Insulated plastic or metal

Assembly
Comes fully assembled or as a simple kit

Usage Environment
Indoor, dry environment recommended

Dome Diameter
Approximately 200 mm

Belt Material
Rubber or similar insulating material

VAN DE GRAAFF MANUAL. Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash on Delivery (COD), Cash Advance (CA), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C)

Packaging Details
Carton Box, Export Quality also Available

Main Export Market(s)
Asia, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001, 14001, CE

About VAN DE GRAAFF MANUAL.

Specification:

VAN DE GRAAFF MANUAL

The generator is provided with a conductor sphere with diameter of 220 mm.

The sphere is equipped with a 4 mm socket (for connection to other equipment through a wire with Banana plug).

With discharging sphere.

Durable and Educational Design

Constructed with insulated materials and a sturdy metal dome, the Van de Graaff Manual is built to withstand frequent classroom or laboratory use. Its design ensures both durability and safety, making it a reliable tool for physics and engineering demonstrations in educational environments.

Manual OperationNo Power Needed

The device is operated entirely by hand, requiring only manual input via a crank. This ensures ease of use in any indoor setting, without the need for electrical outlets or batteries. The immediate response time allows for spontaneous demonstrations and hands-on involvement.

Safe Demonstration of Electrostatics

Designed specifically for educational purposes, this generator allows users to safely explore high-voltage static electricity. With extremely low current output and clear safety guidelines, it offers a secure way to demonstrate electrostatic phenomena without endangering sensitive equipment or users.

FAQs of VAN DE GRAAFF MANUAL.:

Q: How do I operate the Van de Graaff Manual electrostatic generator?

A: Simply turn the hand crank on the side of the device. This motion moves the insulating belt, transferring static charge to the metal dome. The process is entirely manual and requires no external power source.

Q: What types of educational demonstrations is this device suitable for?

A: The generator is ideal for demonstrating electrostatic phenomena such as sparks, hair-raising effects, and the transfer of charge. It is widely used in physics and electronics engineering classrooms.

Q: When and where should this generator be used?

A: For best results, use the generator indoors in a dry environment, such as a classroom or laboratory, at room temperatures between 10-40C. Humidity can reduce the voltage generated, so a dry location is preferable.

Q: What maintenance is required for optimal performance?

A: Periodic cleaning of the belt and metal dome is recommended. Dust and residues can reduce the effectiveness of charge transfer, so keep the components clean and dry for the best results.

Q: Is it safe to use near sensitive electronic equipment?

A: No. It is important to avoid using the generator near sensitive electronics, as the high static voltage can potentially damage them. Always follow the safety notice and use it solely for educational demonstrations.

Q: What are the benefits of using a manual Van de Graaff generator?

A: It allows hands-on, interactive demonstrations of fundamental electrostatic concepts without the need for electrical power, providing immediate operation and greater classroom engagement.
