UNIVERSAL GOVERNOR APPARATUS

About UNIVERSAL GOVERNOR APPARATUS

Specification:

UNIVERSAL GOVERNOR APPARATUS

We offer optimum quality UniversalGovernor Apparatus to our valuable customers.

This universal governor apparatusoffered by us is commonly used for studying the working of different governorsthat normally.

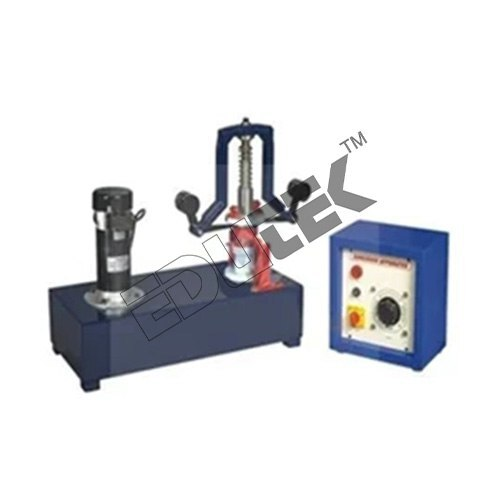

The set-up is designed to study theworking of different governors normally used to control the speed. It consistsof a main spindle, mounted vertically on the base plate.

This spindle is driven by a variablespeed Motor which is also mounted vertically on the same base plate. Anyonegovernor assembly out of four can be mounted on spindle. Speed control unitcontrols the spindle speed. A graduated scale is fitted to the sleeve tomeasure the displacement.

Experiments

Determination of characteristic curveof a sleeve position against speed of rotation for all governors

To study the effect of varying themass of the center sleeve in Porter and Proell Governor

To study the effect of varying theinitial spring compression in Hartnell Governor

To study the determination of characteristicscurves of radius of rotation against controlling force (Actual &Theoretical) for all governors

Utilities Required

Power Supply: 230 V AC, Single Phase.

FloorSpace: 1.5x 1.5 m

Tachometer to find out RPM
