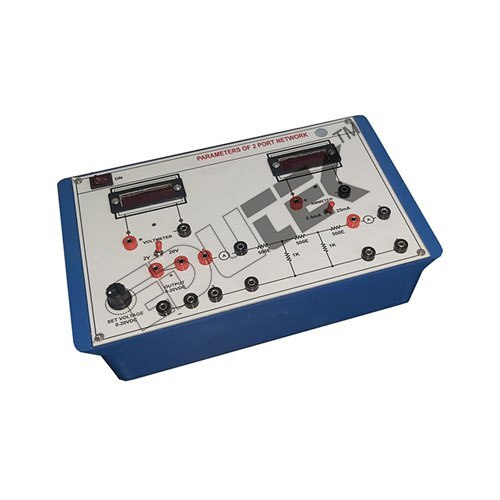

TWO PORT NETWORK PARAMETERS

Name: TWO PORT NETWORK PARAMETERS
Brand: EDUTEK INSTRUMENTATION
Price: 1200.0 INR
Availability: InStock

Price 1200.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

TWO PORT NETWORK PARAMETERS Specification

Power Source
AC mains supply

Operating Temperature
0C to 50C

Response Time
Instantaneous (limited by measurement instruments)

Display Type
Panel printed diagram; external meter connection required for readings

Input
Dual channel input for excitation voltage and current

Interface
Banana sockets and external meter connections

Features
Complete self-contained trainer, easy-to-understand circuit diagram, provision for different parameter measurements, rugged ABS casing, easy connections with safety connectors

Resolution
Depends on external measuring instruments

Power Supply
230 V, 50 Hz AC mains supply

Usage
ENGINEERING ELECTRONICS INSTRUMENTS

Components
Built-in circuit network, connecting terminals, test points, internal resistors, capacitors and inductors

Output
Dual channel output for response voltage and current measurement

Product Type
TWO PORT NETWORK PARAMETERS

Application
ENGINEERING ELECTRONICS INSTRUMENTS

Rated Voltage
230 V AC

Supply Voltage
230 V AC 50 Hz

Size
Standard desktop unit

Dimension (L*W*H)
350 x 240 x 110 mm (approx.)

Function
Measurement and illustration of Two Port Network Parameters in electrical networks

Color
Multi-color on white background

Weight
Approx. 2.5 kg

Current Rating
Up to 1 A (maximum test current)

Capacity
Suitable for groups of 2-4 students

Thickness
3 mm front panel thickness (approx.)

Frequency
50 Hz operation

Instruction Manual
Detailed theory, operating instructions, and sample experiments included

Enclosure Material
High-quality ABS plastic or metal chassis

Connectors
Color-coded test points for easy recognition

Included Experiments
Measurement of Z, Y, h, ABCD (transmission) parameters

Panel Marking
UV printed circuits and component layouts for better visibility

Model Name/No.
TWO PORT NETWORK PARAMETERS LAB TRAINER

Usage Level
Undergraduate, Polytechnic, and Technical Training Institutes

Accessories Supplied
User manual, patch cords, experiment sheets

Safety
Short circuit and overload protection

TWO PORT NETWORK PARAMETERS Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash on Delivery (COD), Cash Advance (CA), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C)

Packaging Details
Carton Box, Export Quality also Available

Main Export Market(s)
Asia, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001, 14001, CE

About TWO PORT NETWORK PARAMETERS

Specification:

TWO PORT NETWORK PARAMETERS

Front panel built with high class insulated Printed Circuit Board sheet with well printed circuits and symbols.

Fuse for Short Circuit protection

Versatile Learning Platform for Electrical Network Analysis

The TWO PORT NETWORK PARAMETERS LAB TRAINER is engineered for practical education in electrical engineering. With effortless parameter switching and robust safety protections, it serves as a comprehensive tool for understanding core network concepts. UV-printed markings improve component and circuit clarity, while color-coded connectors enhance connection accuracy and minimize errors during setup.

Comprehensive Experimentation Capabilities

This trainer allows direct measurement of Z, Y, h, and ABCD network parameters, enabling users to explore each type's unique properties. Accompanied by detailed manuals and experiment sheets, students can follow guided experiments or conduct their own investigations, deepening conceptual understanding and practical skills at both undergraduate and polytechnic levels.

FAQ's of TWO PORT NETWORK PARAMETERS:

Q: How does the TWO PORT NETWORK PARAMETERS LAB TRAINER facilitate learning of network parameters?

A: The trainer provides hands-on measurement of Z, Y, h, and ABCD parameters through practical experiments, using clearly labeled, color-coded test points and a detailed circuit diagram. Its user manual and experiment sheets guide effective learning and real-world understanding of two port network analysis.

Q: What accessories and materials are supplied with the laboratory trainer?

A: The trainer comes complete with a user manual, patch cords, and experiment sheets. All required circuit components such as resistors, capacitors, and inductors are built-in, so users only need to connect external measurement meters to begin experiments.

Q: When should this lab trainer be used in an educational setting?

A: It is ideal for undergraduate and diploma-level electronics laboratory courses, technical training programs, and student group experiments where hands-on learning of two port network parameters is core to the curriculum.

Q: Where can I connect measurement devices to the trainer?

A: External voltmeters or ammeters connect via the color-coded banana sockets provided on the front panel, enabling direct monitoring of voltage and current during experiments.

Q: What is the process for conducting an experiment with this equipment?

A: Set up desired connections using the pre-marked test points and patch cords as outlined in the experiment sheet. Apply excitation through the dual channel inputs and connect external meters to monitor responses. Follow the instructional manual for step-by-step procedures tailored for each parameter measurement.

Q: How does the built-in safety protection benefit users?

A: Short circuit and overload protections safeguard students and the trainer from electrical accidents, making lab sessions safer, especially for those handling such experiments for the first time.

Q: What are the advantages of the trainer's enclosure and display format?

A: Constructed from robust ABS plastic or a metal chassis, the trainer is durable and resistant to wear. Its UV-printed circuits are easy to see, supporting quick identification of test points and components, while the multi-color scheme enhances overall usability.
