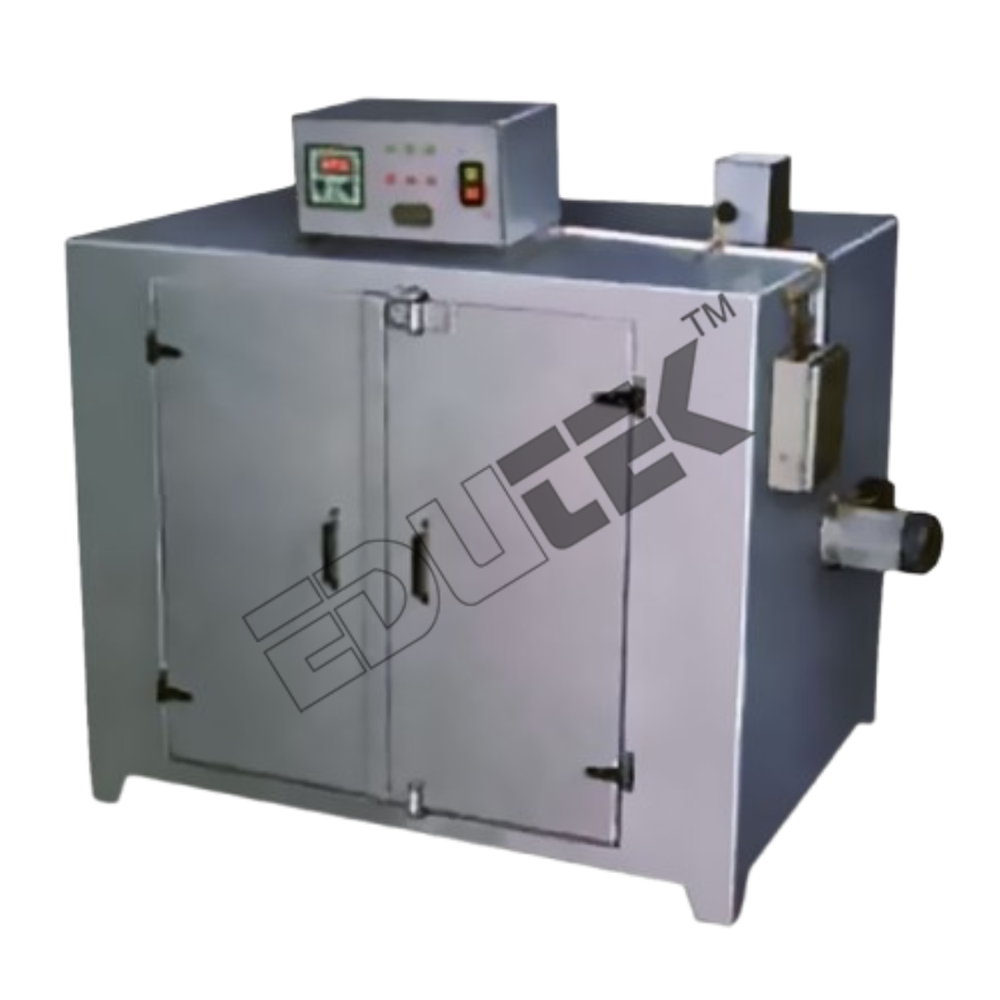

Tray Dryer

Get a Price/Quote

MOQ : 1 Unit

Tray Dryer Specification

Function
Hot Air Circulation Drying

Power
6 kW - 24 kW

Phase
Single / Three Phase

Accuracy
±1°C

Frequency
50/60 Hz

Product Type
Tray Dryer

Application
Drying Heat Sensitive Material, Food, Chemicals, Pharmaceutical Products

Properties
Uniform Heating, Energy Efficient, Insulated Chamber

Automation Grade
Semi-automatic / Automatic

Temperature Range
Ambient to 250°C

Dimension (L*W*H)
1200 mm x 800 mm x 1700 mm (customizable)

Suitable For
Pharma, Food, Chemical Industries

Storage Capacity
12, 24, 48, 96 Trays

Treatment Type
Thermal Drying

Display Type
Digital / Analog

Humidity Range
Up to 95% RH (Optional)

Material
Stainless Steel (SS304/SS316)

Use
Industrial Drying Process

Shape
Rectangular

Height
1700 mm (approx.)

Color Code
Standard Industrial Grey

Weight
Approx. 250-400 kg (depends on model)

Power Source
Electric

Voltage
230 V / 415 V

Display
Analog / Digital Thermostat

Insulation Thickness
50 - 100 mm (glass wool/ceramic wool)

Safety Features
Over-temperature protection, door interlock, emergency stop

Cleaning
Easy to clean, smooth SS interiors

Tray Size
Standard 32

Control Panel
Microprocessor/PLC based control panel with safety interlocks

Noise Level
Below 65 dB

Heating Media
Electric, Steam or Gas

Air Circulation System
Blower fan, forced air convection

Mobility
Mounted on caster wheels (optional)

Door Type
Insulated, gasketed, heavy-duty construction

Tray Dryer Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C)

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Packaging Details
carton box, export quality also available

Main Export Market(s)
Asia, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001, 14001 ,CE

About Tray Dryer

Tray Dryer

Specifications of Tray Dryer

Different sizes Tray Dryer are available as follows but without trays. Chamber size in mm (WxDxH) approx tray capacity :-

430 x 840 x 650mm 8 Trays 16"x32"x1 1/4" size
430 x 840 x 910mm 12 Trays -- do --
910 x 840 x 910mm 24 Trays -- do --
960 x 1270 x 1450mm 48 Trays -- do --
960 x 1700 x 1700mm 96 Trays -- do --

Precision Heated Air Circulation

A powerful blower fan and forced air convection ensure each tray is evenly heated, providing uniform drying results crucial for pharmaceuticals, food products, and chemical processes. The highly insulated chamber minimizes heat loss, optimizing energy use.

Flexible and Safe Operation

Select from electric, steam, or gas heating to fit facility preferences. Safety is paramount with features such as over-temperature protection, door interlocks, and an emergency stop system. The microprocessor or PLC-based control panel provides real-time operational monitoring.

Customizable and User-Friendly Design

With a modular rack for 12 to 96 trays, optional caster wheels, and easy-to-clean stainless steel interiors, the dryer adapts to diverse requirements. Its construction allows for customizable dimensions and capacities, meeting varied batch scales quickly and hygienically.

FAQs of Tray Dryer:

Q: How does the tray dryer achieve uniform drying of materials?

A: The tray dryer utilizes a high-efficiency blower fan and forced air convection system, circulating hot air evenly throughout the insulated chamber. This design ensures consistent temperature distribution across all trays, resulting in uniform drying for sensitive materials.

Q: What types of applications is this tray dryer suitable for?

A: This dryer is designed for industrial drying processes in the pharmaceutical, food, and chemical industries. It is particularly effective for heat-sensitive materials like powders, granules, and edible products requiring gentle yet thorough moisture removal.

Q: When should I choose between electric, steam, or gas heating for this tray dryer?

A: The choice of heating media depends on your facilitys energy sources, cost considerations, and efficiency requirements. Electric is ideal for precise control, steam is best for integration with existing plants, and gas offers rapid heating for higher throughput.

Q: Where can the tray dryer be installed, and is mobility an option?

A: The dryers compact rectangular build allows for installation in standard industrial spaces. Optional caster wheels are available for enhanced mobility, enabling easy movement between production areas if required.

Q: What is the process for cleaning and maintaining the tray dryer interiors?

A: Smooth-grade stainless steel interiors facilitate quick cleaning and sanitation. Trays can be removed for deep cleaning, and the overall design helps prevent material buildup, ensuring hygienic operations for food and pharmaceutical standards.

Q: How do the safety features benefit operators during usage?

A: Operators benefit from integrated safety systems such as over-temperature protection, door interlocks, and an emergency stop mechanism. These features prevent accidents, protect products from overheating, and enhance operational reliability.
