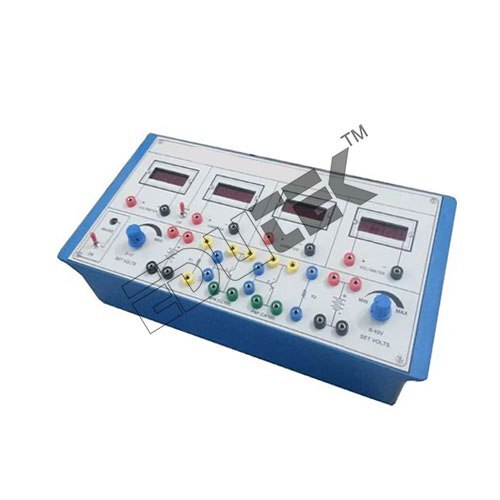

Send InquiryTRANSISTOR CHARACTERISTICS (CE PNP)
Price 1200.0 INR/ Piece
MOQ : 1 Piece
TRANSISTOR CHARACTERISTICS (CE PNP) Specification
- Power Supply
- Externally provided laboratory DC supply (typically 12V)
- IP Rating
- Not rated
- Operating Temperature
- 0C to 50C (lab environment)
- Display Type
- Analog or digital meters for voltage and current display
- Features
- On-board biasing resistors, user-friendly controls, robust panel, schematic printed on panel
- Resolution
- Meter resolution depends on meter used (e.g., 0.01V, 0.1mA)
- Power Source
- External DC supply
- Usage
- ENGINEERING ELECTRONICS INSTRUMENTS
- Response Time
- Immediate response (depends on meter update)
- Input
- Base current (Ib), Collector-Emitter voltage (Vce)
- Interface
- Banana sockets/terminals for external measurement connections
- Components
- PNP Transistor (e.g., BC177 or equivalent), resistors, connection terminals, meters
- Thermal Conductivity
- Passive component; typical of semiconductor devices
- Output
- Collector current (Ic), output is measured using meters
- Product Type
- TRANSISTOR CHARACTERISTICS (CE PNP)
- Application
- ENGINEERING ELECTRONICS INSTRUMENTS
- Rated Voltage
- 12V DC nominal
- Supply Voltage
- 12V DC
- Size
- Standard table-top trainer size
- Dimension (L*W*H)
- Approx. 30 x 20 x 10 cm
- Function
- Demonstrates input/output and output characteristics of a PNP transistor in Common Emitter configuration
- Color
- Black, silver (components and panel)
- Weight
- Approx. 2-3 kg (depends on manufacturer)
- Current Rating
- Up to 20 mA collector current (typical)
- Thickness
- Standard panel thickness ~3mm
- Capacity
- Supports single PNP transistor
- Frequency
- DC characteristics; not intended for high frequency
- Panel Markings
- Silk-screened schematic, operating instructions
- Meter Type
- Typically analog moving-coil meters; digital meters optional
- Base Current Adjustment
- Multiturn potentiometer for precise base current control
- Transistor Type
- PNP (e.g., BC177 or equivalent included)
- Included Accessories
- Connecting leads, instruction manual
- Compliance
- Conforms to standard electronic lab safety norms
- Configuration
- Common Emitter (CE)
- Protection
- Overcurrent limit protection
- Typical Use
- Plot input (Ib vs. Vbe) and output (Ic vs. Vce) characteristics for PNP transistor
- Collector-Emitter Voltage Adjustment
- Coarse and fine control potentiometers
- Transistor Socket
- Socket for easy replacement/testing of PNP device
- Student-Friendly
- Designed for ease of use and repeatability in undergraduate labs
TRANSISTOR CHARACTERISTICS (CE PNP) Trade Information
- Minimum Order Quantity
- 1 Piece
- Payment Terms
- Cash on Delivery (COD), Cash Advance (CA), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C)
- Packaging Details
- Carton Box, Export Quality also Available
- Main Export Market(s)
- Asia, Middle East, Africa
- Main Domestic Market
- All India
- Certifications
- ISO 9001, 14001, CE
About TRANSISTOR CHARACTERISTICS (CE PNP)
Discover astounding performance and unmatched value with our TRANSISTOR CHARACTERISTICS (CE PNP) Trainer-available now at an unbeatable, reduced price for a limited time! This ravishing electronic lab equipment features a PNP transistor (BC177 or equivalent), configuration in Common Emitter mode, multiturn base current adjustment, and meticulously silk-screened panel instructions. Dazzling in both appearance and educational utility, it offers overcurrent protection and supports easy meter replacement. Ideal for engineering electronics, this trainer excels in teaching input/output characteristics with superb precision. Don't miss out on this extraordinary limited-time offer!
Application and Features of TRANSISTOR CHARACTERISTICS (CE PNP)
Used for plotting input (Ib vs. Vbe) and output (Ic vs. Vce) characteristics, this trainer is indispensable in undergraduate electronics labs and engineering training centers. Suitable for demonstrating PNP transistor principles in Common Emitter mode, it offers student-focused design, easy transistor replacement, on-board biasing resistors, and robust construction. Analog or digital meter compatibility and protection features ensure consistent, reliable results in lab experiments and academic applications, making it a trusted educational tool.
Packaging, Shipping, and Sale Price Details
Each TRANSISTOR CHARACTERISTICS (CE PNP) trainer is carefully packaged to prevent damage and ensure safe delivery to your institution. Dispatched promptly from our facility, orders can be shipped via standard FOB ports across India. Our sample policy allows you to review quality before bulk purchase. The sale price is especially attractive during this limited-time offer. Secure yours now and experience reliable packaging and timely dispatch with every order.
Application and Features of TRANSISTOR CHARACTERISTICS (CE PNP)
Used for plotting input (Ib vs. Vbe) and output (Ic vs. Vce) characteristics, this trainer is indispensable in undergraduate electronics labs and engineering training centers. Suitable for demonstrating PNP transistor principles in Common Emitter mode, it offers student-focused design, easy transistor replacement, on-board biasing resistors, and robust construction. Analog or digital meter compatibility and protection features ensure consistent, reliable results in lab experiments and academic applications, making it a trusted educational tool.
Packaging, Shipping, and Sale Price Details
Each TRANSISTOR CHARACTERISTICS (CE PNP) trainer is carefully packaged to prevent damage and ensure safe delivery to your institution. Dispatched promptly from our facility, orders can be shipped via standard FOB ports across India. Our sample policy allows you to review quality before bulk purchase. The sale price is especially attractive during this limited-time offer. Secure yours now and experience reliable packaging and timely dispatch with every order.
FAQ's of TRANSISTOR CHARACTERISTICS (CE PNP):
Q: How is the base current precisely adjusted in the TRANSISTOR CHARACTERISTICS (CE PNP) trainer?
A: The base current can be set with great accuracy using the multiturn potentiometer, enabling students and instructors to finely control and observe variations in transistor behavior during experiments.Q: What type of transistor is included with this equipment?
A: This trainer is equipped with a standard PNP transistor, typically the BC177 or an equivalent, which can be easily replaced or tested due to the user-friendly socket design.Q: Where is this trainer typically used?
A: The device is primarily designed for use in engineering educational institutions, undergraduate physics and electronics laboratories, and technical training centers focusing on transistor characteristics.Q: What safety and protection features are provided with this trainer?
A: It includes overcurrent limit protection and conforms to established electronic lab safety norms to ensure safe operation during laboratory experiments.Q: How are the input and output characteristics measured?
A: Input (Ib vs. Vbe) and output (Ic vs. Vce) characteristics are measured using on-board analog or optional digital meters that display precise voltage and current readings for comprehensive analysis.
