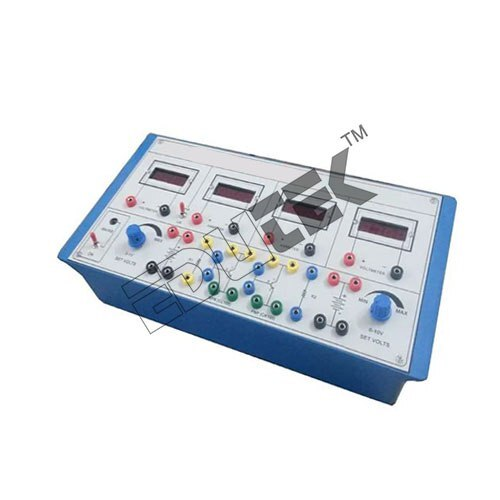

TRANSISTOR CHARACTERISTICS (CE NPN)

Name: TRANSISTOR CHARACTERISTICS (CE NPN)
Brand: EDUTEK INSTRUMENTATION
Price: 1200.0 INR
Availability: InStock

Price 1200.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

TRANSISTOR CHARACTERISTICS (CE NPN) Specification

Features
Front panel schematic diagram, sturdy enclosure, internal protection, easily replaceable transistor, plug-in connections

Power Source
AC mains

Components
NPN transistor (BC107 or equivalent), meters, resistors, switches, power supply, function generator

Interface
Panel mounted test points and switch controls

Resolution
Analog meters: 0.01V/0.1mA divisions

Operating Temperature
0C to 50C

Display Type
AnalogMeters for voltage and current

Input
Signal through built-in function generator or external source

Usage
ENGINEERING ELECTRONICS INSTRUMENTS

Output
Measured via analog/digital meters

Power Supply
230V AC, 50Hz

Response Time
Instantaneous (dependent on analog meters)

Product Type
TRANSISTOR CHARACTERISTICS (CE NPN)

Application
ENGINEERING ELECTRONICS INSTRUMENTS

Rated Voltage
230V AC

Supply Voltage
230V AC

Size
Standard trainer box; approx. 320 x 220 mm

Dimension (L*W*H)
320 mm x 220 mm x 100 mm

Function
To study input and output characteristics of an NPN transistor in Common Emitter (CE) configuration

Color
Blue and Silver

Weight
Approx. 2-3 kg

Current Rating
0-20 mA (measured); output transistor rated for typical lab use

Capacity
Single unit operation

Thickness
Metal enclosure, approximately 2 mm

Frequency
50 Hz (mains)

Protective Features
Inbuilt fuse and overload protection for safety

Base and Collector Supply
Variable via built-in power supply controls

Transistor Type
NPN (BC107 or equivalent supplied)

Enclosure Material
Powder-coated metal

Operational Controls
Variable voltage and resistance via rotary knobs

Accessories Included
Patch cords and manual

Test Jacks/Terminals
Banana sockets for circuit connection

Panel Markings
Clearly marked circuit diagram and test points

TRANSISTOR CHARACTERISTICS (CE NPN) Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash on Delivery (COD), Cash Advance (CA), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C)

Packaging Details
Carton Box, Export Quality also Available

Main Export Market(s)
Asia, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001, 14001, CE

About TRANSISTOR CHARACTERISTICS (CE NPN)

Discover an exceptional tool for ENGINEERING ELECTRONICS INSTRUMENTS-our TRANSISTOR CHARACTERISTICS (CE NPN) trainer, featuring a highly recommended design for rigorous laboratory education. This special instrument, adorned in a ravishing blue and silver finish, boasts a sturdy, powder-coated metal enclosure and clearly marked diagrams. Equipped with splendiferous variable voltage controls, banana socket terminals, and built-in overload protection, it ensures superb reliability and safety. Savings are guaranteed with included accessories like patch cords and manuals. This trainer delivers precise, instantaneous readings for studying the input and output characteristics of NPN (BC107 or equivalent) transistors using analog meters, making it a superb asset for any engineering lab.

Operational Excellence and Directions for Use

The TRANSISTOR CHARACTERISTICS (CE NPN) setup makes experimentation straightforward. Simply utilize the analog meters and variable rotary knobs to observe and analyze input/output transistor behaviors in CE configuration. Designed for repeated educational use, it accommodates signal input both from the integrated function generator and external sources. This instrument is perfect for hands-on work with electronic components, greatly benefiting students and instructors in engineering laboratories.

Export, Dispatch, and Product Assurance

TRANSISTOR CHARACTERISTICS (CE NPN) instruments are dispatched efficiently to India's major export markets, ensuring prompt and safe goods transport. Upon successful placement and confirmation of the asking price, buyers receive robust packing for secure delivery. Certifications can be provided upon request to verify product standards. For those interested, sample units are available, allowing inspection before committing to larger orders. This guarantees reliability and satisfaction in every transaction.

FAQ's of TRANSISTOR CHARACTERISTICS (CE NPN):

Q: How does the TRANSISTOR CHARACTERISTICS (CE NPN) trainer support engineering education?

A: It enables precise study and practical observation of input and output characteristics of NPN transistors in Common Emitter configuration, benefiting hands-on learning in electronics labs.

Q: What are the main safety features included in the device?

A: The trainer offers inbuilt fuse and overload protection to safeguard both users and internal components during experiments.

Q: When should the patch cords and transistor be replaced?

A: Patch cords or transistors should be replaced if they show signs of wear or inconsistent operation to maintain optimal performance and accurate results.

Q: Where are the test points and operational controls located?

A: Clearly marked test points and rotary controls are front-mounted on the panel for easy access and straightforward usage.

Q: What benefits come from using analog meters for measurement?

A: Analog meters offer quick visual feedback on current and voltage, with fine resolution, making real-time measurement and analysis efficient for lab work.
