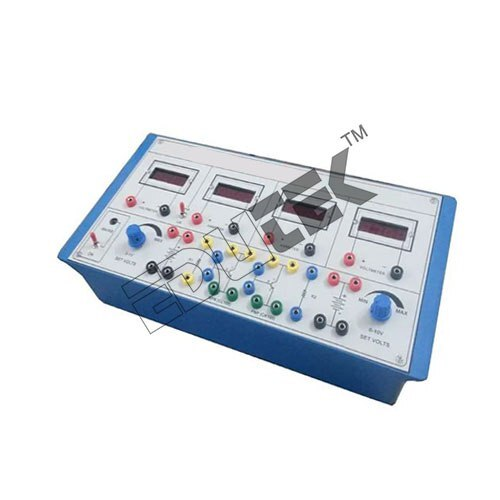

TRANSISTOR CHARACTERISTICS (CB NPN)

Name: TRANSISTOR CHARACTERISTICS (CB NPN)
Brand: EDUTEK INSTRUMENTATION
Price: 1200.0 INR
Availability: InStock

Price 1200.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

TRANSISTOR CHARACTERISTICS (CB NPN) Specification

Display Type
Panel with test points and switches (No digital display)

Input
Base current via external variable DC supply

Response Time
Immediate (transistor response in s-range, kit limited by measurement tools)

Resolution
Depends on external measuring instruments (not integral to kit)

Usage
ENGINEERING ELECTRONICS INSTRUMENTS

Interface
Test sockets, panel-mounted connectors

Components
Glass epoxy PCB, mounted NPN transistor, resistors, sockets, test points, banana jacks

Operating Temperature
0C to 50C

Thermal Conductivity
Standard for enclosure material; not specified for device

Power Source
External DC supply

Features
Rugged construction, durable panel, test jacks, complete with circuit diagram

Power Supply
DC, typically 0-30V (external supply required)

Output
Collector current

Product Type
TRANSISTOR CHARACTERISTICS (CB NPN)

Application
ENGINEERING ELECTRONICS INSTRUMENTS

Rated Voltage
Not applicable (depends on external power source)

Supply Voltage
Input via regulated DC supply (external)

Size
Approx. 300mm x 200mm x 75mm

Dimension (L*W*H)
Approx. 300mm x 200mm x 75mm

Function
To study input and output characteristics of NPN transistor in Common Base (CB) configuration.

Color
Black and Grey (Actual product may vary)

Weight
Approx. 1.5-2 kg

Capacity
Single-station use

Thickness
Enclosure thickness approximately 1.5 mm

Current Rating
Typically up to 50 mA (depends on experiment)

Frequency
DC to low frequency analysis

Internal Wiring
High-grade, insulated copper wire

Polarity Protection
External supply should be correctly polarized

Transistor Type
NPN, commonly BC107/BC547 or equivalent mounted on panel

Protection
In-built fuse or overload protection in external supply recommended

Mounting
Portable, bench-top

Enclosure Material
Metal or ABS engineering plastic

Circuit Diagram
Printed on top panel for ease of operation

Control Switches
Rotary/Toggle for signal selection (as per circuit)

Manual Included
Detailed experiment manual included

Educational Level
Engineering/Polytechnic/Technical school

Test Points Provided
Multiple (marked base, emitter, collector, ground, etc.)

Sockets
Banana sockets and 4mm test sockets for external connections

TRANSISTOR CHARACTERISTICS (CB NPN) Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash on Delivery (COD), Cash Advance (CA), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C)

Packaging Details
Carton Box, Export Quality also Available

Main Export Market(s)
Asia, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001, 14001, CE

About TRANSISTOR CHARACTERISTICS (CB NPN)

Discover the preeminent TRANSISTOR CHARACTERISTICS (CB NPN) kit-an affordable, top-rated educational instrument designed for aspiring engineers and technical students. This brilliant bench-top unit features a crowning combination of NPN transistor (BC107/BC547), printed circuit diagram for ease of operation, and multiple test points marked for clarity. The sturdy enclosure, available in black and grey, utilizes high-grade copper wiring and overload protection to ensure safety. With included experiment manual, this offer delivers an unrivaled, practical experience-perfect for mastering the Common Base configuration in engineering electronics. Exported and supplied across India.

Applications and Usage of TRANSISTOR CHARACTERISTICS (CB NPN)

The TRANSISTOR CHARACTERISTICS (CB NPN) kit is ideal for application in engineering and polytechnic colleges, technical schools, and training institutes. It empowers students and educators to methodically study the input and output characteristics of NPN transistors in Common Base configuration. The practical setup, featuring panel-marked circuit diagrams and portable design, streamlines experimental procedures and provides hands-on learning essential for understanding electronic components and plant-level applications in industrial training environments.

Market Reach and Supply Capabilities

With major outlays focused on the domestic market, the TRANSISTOR CHARACTERISTICS (CB NPN) kit enjoys widespread usage in India, ensuring value-driven expenditure in education sectors. Our robust supply ability facilitates smooth exchange transactions and exports to leading technical institutions and training centers across Asia and Africa. Primary markets include India and select international regions, providing affordable, readily available instruments meeting stringent academic and professional requirements.

FAQ's of TRANSISTOR CHARACTERISTICS (CB NPN):

Q: How are test points and circuit diagrams provided on the TRANSISTOR CHARACTERISTICS (CB NPN) kit?

A: The kit features multiple labeled test points for base, emitter, collector, and ground, with the circuit diagram conveniently printed on the top panel, ensuring users can easily reference and connect as required during experiments.

Q: What is the application method for studying transistor characteristics using this kit?

A: Users connect the external DC power supply, adjust base current through a variable control, and observe transistor response at the collector. A detailed manual supports all experimental steps, making the process systematic and user-friendly.

Q: Where is the TRANSISTOR CHARACTERISTICS (CB NPN) kit commonly used?

A: It is primarily used in engineering colleges, polytechnic institutes, and technical schools for practical coursework in electronics, enabling students to gain hands-on experience with NPN transistors in CB configuration.

Q: What benefits does the enclosure and wiring design offer to users?

A: The enclosure, crafted from rugged metal or ABS plastic and using high-quality insulated copper wiring, ensures durability, user safety, and reliable performance during repeated laboratory sessions.

Q: When is it necessary to check polarity and overload protection before use?

A: Users must always confirm that the external DC supply is correctly polarized and optionally use an overload-protected power source before initiating any experiment, protecting both equipment and users from accidental damage.

Q: How portable and easy to use is this instrument for students and instructors?

A: Thanks to its bench-top, single-station design, and portable build, the kit offers convenient classroom and laboratory use. The inclusion of banana and 4mm test sockets allows straightforward, flexible connections for all experiment requirements.
