Send InquiryTRANSISTOR CHARACTERISTICS APPARATUS WITH BAKELITE PANEL & ROUND METERS, REGULATED POWER SUPPLIES
Price 1200.0 INR/ Piece
MOQ : 1 Piece
TRANSISTOR CHARACTERISTICS APPARATUS WITH BAKELITE PANEL & ROUND METERS, REGULATED POWER SUPPLIES Specification
- Usage
- engeering electronic instrument
- Power Source
- electric
- Power Supply
- DC
- Components
- One PNP& One NPN Transistor mounted behind the panel with connections brought out at 4mm sockets.
- Application
- engeering electronic instrument
- Warranty
- 1 year
- Display Type
- analouge
- Features
- Heavy duty metal box construction
- Frequency
- 50 Hertz (HZ)
About TRANSISTOR CHARACTERISTICS APPARATUS WITH BAKELITE PANEL & ROUND METERS, REGULATED POWER SUPPLIES
Specification:

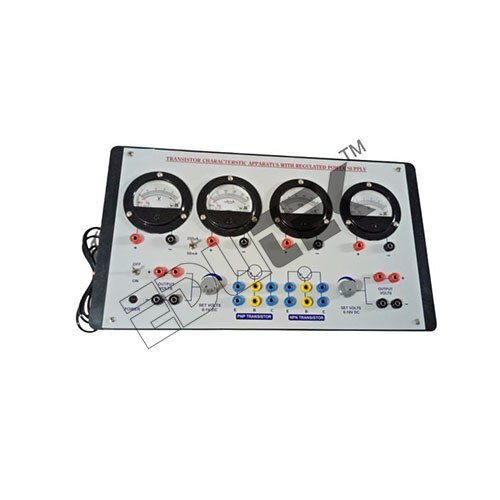

TRANSISTOR CHARACTERISTICS APPARATUS WITH BAKELITE PANEL & ROUND METERS, REGULATED POWER SUPPLIES
Objective: Input & Output Characteristics of Common Emitter PNP & NPN Transistors Input & Output Characteristics of Common Base PNP & NPN Transistor.
Features:
Instrument comprises of the following:
Two DC Regulated Power Supplies 0-10VDC/150mA & 0-1VDC/150Ma
Four round meters for voltage & current measurement with connections brought out at 4mm sockets.
One PNP& One NPN Transistor mounted behind the panel with connections brought out at 4mm sockets.
Connections of Supplies & Transistors brought out at 4mm Sockets.
Front Panel made of thick Bakelite sheet
One ON/OFF Switch with jewel light is provided on the front panel.
Made of Heavy duty metal box construction
Robust Design for Laboratory Use
Constructed in a heavy-duty metal enclosure, this apparatus is built to withstand frequent usage in educational settings. Its bakelite panel adds an extra layer of insulation and safety, making it ideal for engineering students and instructors alike.
Precision Measurement and Accessibility
Equipped with analog round meters and regulated DC power supplies, the apparatus allows users to accurately monitor current and voltage. Connections to PNP and NPN transistors are made simple via 4mm sockets, supporting hands-on experimentation.
FAQ's of TRANSISTOR CHARACTERISTICS APPARATUS WITH BAKELITE PANEL & ROUND METERS, REGULATED POWER SUPPLIES:
Q: How is the Transistor Characteristics Apparatus with Bakelite Panel used in engineering labs?
A: This apparatus helps students and professionals analyze the characteristics and behavior of PNP and NPN transistors through practical experimentation. By connecting external circuits to the mounted transistors via 4mm sockets and using the analog meters to observe current and voltage, users gain valuable insights into transistor operation.Q: What are the key features that make this equipment suitable for educational purposes?
A: Key features include a bakelite panel for safety, robust metal construction for durability, regulated DC power supplies for consistent results, and easy-to-access connections for both PNP and NPN transistors. Its analog display meters make readings straightforward during experiments.Q: When should this apparatus be used for optimal results?
A: It should be used during practical sessions on semiconductor devices, transistor theory, and circuit analysis modules within electronic engineering courses. Its accuracy and reliability ensure effective demonstration and data collection.Q: Where are the transistors located and how are connections made?
A: Both PNP and NPN transistors are securely mounted behind the bakelite panel, with their terminals wired out to 4mm sockets on the front. This layout simplifies external circuit connections for students and professionals conducting experiments.Q: What process should users follow to conduct a basic transistor characteristic experiment?
A: Users should connect the apparatus to a suitable DC power source and utilize the provided 4mm sockets to create the desired transistor circuit configuration. Measurements of current and voltage are obtained using the analog meters, allowing for graphical analysis of the transistor's characteristic curves.Q: What benefits does the regulated power supply provide in this equipment?
A: The regulated DC power supply ensures that experiment conditions remain stable and precise, reducing measurement errors and enhancing the repeatability of results, which is crucial for lab experiments.
