Training Panel Function Of Gas Heater

Price 50.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Training Panel Function Of Gas Heater Specification

Weight
115 Kilograms (kg)

Warranty
1 year

Dimension (L*W*H)
1650x700x1900 Millimeter (mm)

Feature
Highly Efficient

Accuracy
100 %

Type
TRAINING PANEL FUNCTION OF GAS HEATER

Usage
Laboratory

About Training Panel Function Of Gas Heater

TRAINING PANEL FUNCTION OF GAS HEATER

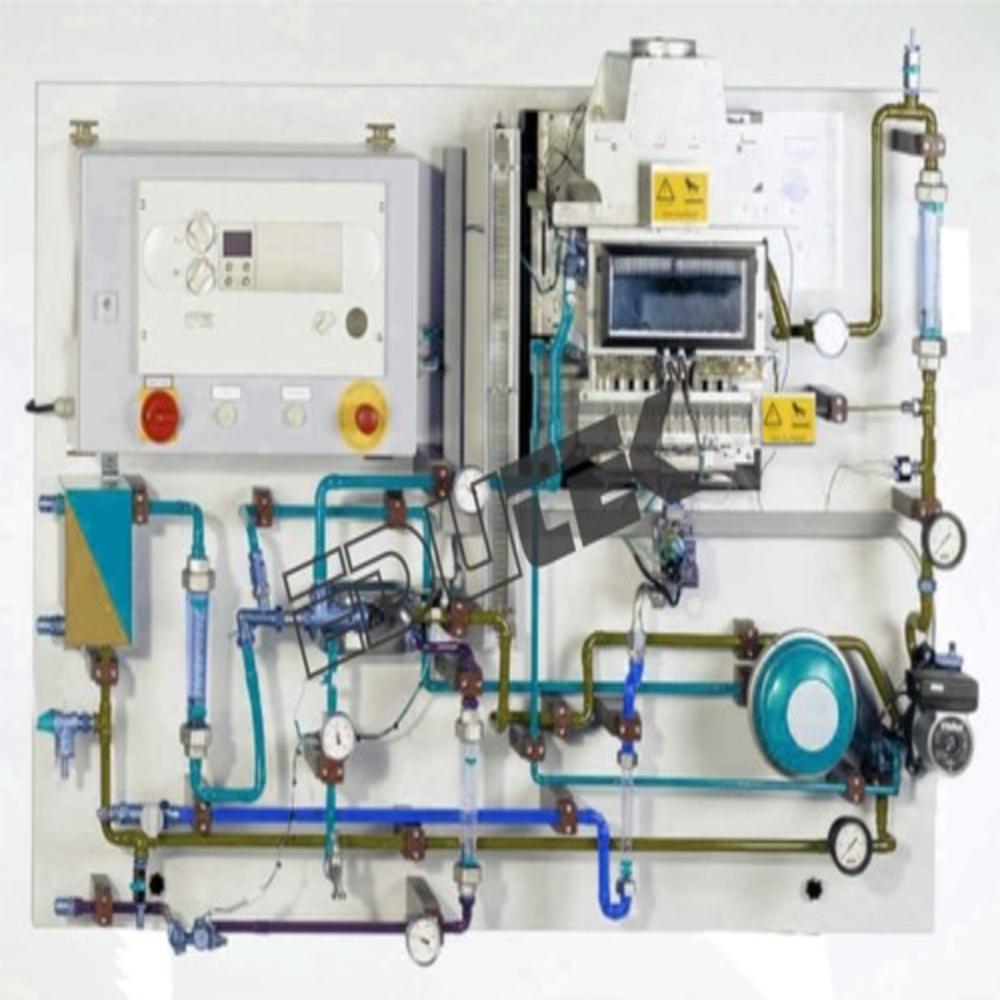

The is used to illustrate the functioning of a gas combination boiler. The main components of the gas boiler are clearly arranged on a panel to allow better understanding. A process schematic also illustrates the function. The allows demonstration of a heating circuit and representation of domestic water heating. A plate heat exchanger is used to simulate a radiator. Cold water is fed through the heat exchanger as a heating load. A viewing window allows observation of the gas flame in the burner. Built-in thermometers and flow meters allow the recording of measured values to determine the power and efficiency. The unit is operated with liquid gas (propane) and is therefore independent of any pre-installed natural gas lines.

Learning Objectives / Experiments

Familiarisation with the functioning of a combination boiler
Understanding of a heating circuit
Domestic water heating
Measurement of gas pressures on a gas boiler
Determination of power and efficiency

Specification

Familiarisation with a typical combination boiler
Main components clearly mounted on panel
Burner with viewing window for observation of flame
Plate heat exchanger simulates radiator, cold water used as heating load
Additional instrumentation for energy balances: thermometers, flow meters, manometers
Operation with propane gas

Technical Data

Gas boiler

Nominal heating capacity range: 8.9...18kW
Standard utilisation rate at nominal load: 93%
Feed flow temperature: 82...87°C
Hot water temperature: 30...65°C
Permissible excess operating pressure
Heater: 3bar
Hot water: 10bar
Exhaust gas temperature: 90...125°C

Expansion vessel

Capacity: 2L
Admission pressure: 1,5bar

Dimensions and Weight

LxWxH: 1650x700x1900mm
Weight: approx. 115kg

Purpose-Built for Laboratory Training

Engineered for laboratory environments, this training panel enables detailed exploration of gas heater operations. Students and trainees can safely observe real-world principles and functionality, making it an essential resource for science and engineering education.

Robust Construction and Dimensions

With its dimensions of 1650x700x1900 mm and a weight of 115 kg, the panel offers stability and ample working space. The solid build ensures durability, accommodating intense usage typical of instructional environments.

Exceptional Efficiency and Accuracy

Boasting 100% accuracy and a highly efficient design, this panel consistently delivers reliable results. The units precision guarantees that learners experience and replicate true-to-life scenarios for optimal knowledge retention.

FAQs of Training Panel Function Of Gas Heater:

Q: How is the Training Panel Function of Gas Heater used in a laboratory setting?

A: The training panel is used to demonstrate the principles and operations of gas heaters in a controlled, hands-on environment. Ideal for technical education, it allows students to safely conduct experiments and analyze heating processes.

Q: What makes this gas heater training panel highly efficient?

A: This unit features advanced design components that optimize gas combustion and heat transfer, resulting in effective demonstrations and energy-saving performance while maintaining accuracy.

Q: When is it best to utilize the training panel during the learning process?

A: The panel is most beneficial in practical sessions following theoretical instruction, where students can apply learned concepts through direct engagement and experimentation.

Q: Where is this training panel manufactured and supplied from?

A: The panel is manufactured and supplied in India by reputable exporter, manufacturer, and supplier specialists with experience in laboratory equipment.

Q: What are the key benefits of using this training panel for gas heater instruction?

A: It offers reliable accuracy, robust durability, and real-time heat operation demonstration, fostering comprehensive learning and equipping students with practical skill sets.

Q: Can you describe the process of setting up this training panel in the lab?

A: Installation involves placing the unit on a stable surface due to its weight (115 kg) and connecting it according to the provided guidelines, ensuring all safety protocols are followed before use.
