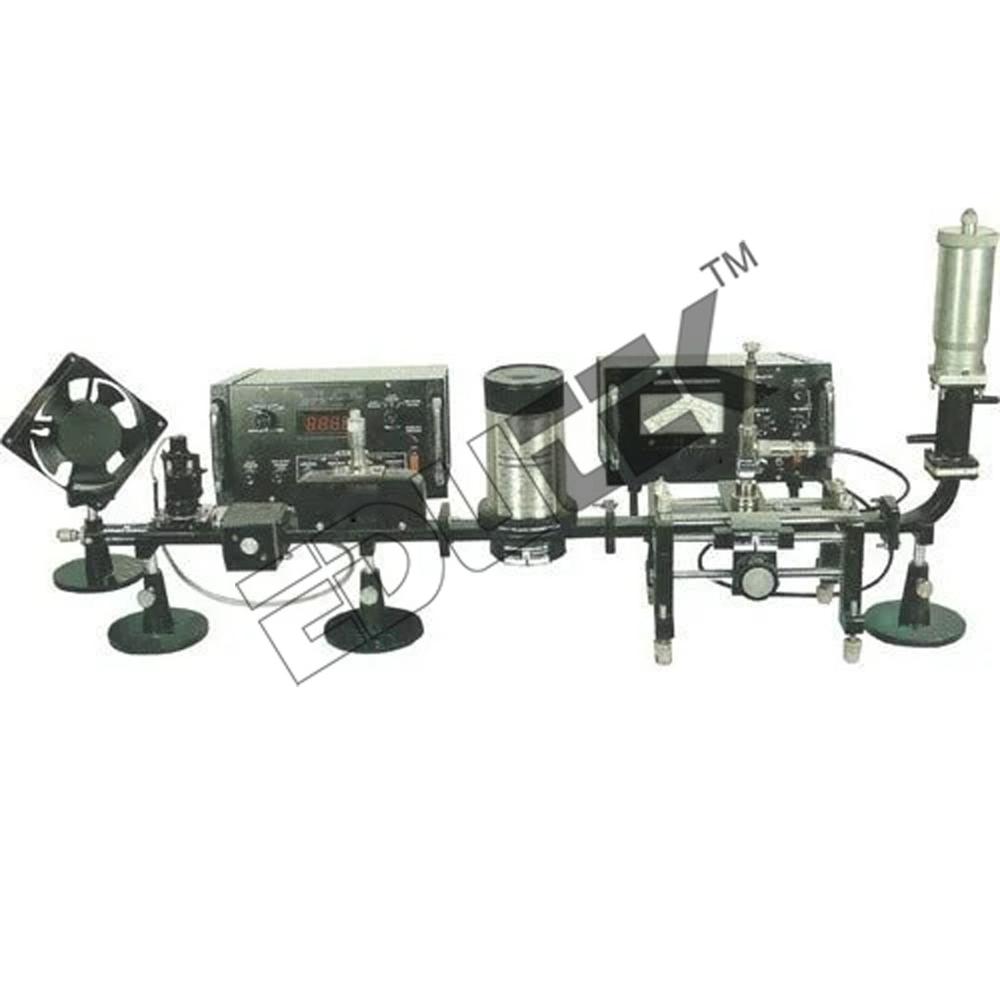

To Measure The Polar Pattern Of The Antenna

Price 1000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

To Measure The Polar Pattern Of The Antenna Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Letter of Credit (L/C), Telegraphic Transfer (T/T), Cheque

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Packaging Details
carton box, export quality also available

Main Export Market(s)
Africa, Middle East, Western Europe, Asia, Eastern Europe

Main Domestic Market
All India

Certifications
ISO 9001, 14001 ,CE

About To Measure The Polar Pattern Of The Antenna

To Measure The Polar Pattern Of The Antenna:

Experiments:

To measure the polar pattern & gain of the antennas (Pyramidal horn. Pick up horn, slotted horn, Dielectric horn, sectorial horn & parabolic disc).

Components Name                                       Qty.


Klystron Power Supply                                  1                       Klystron Mount                      1

Klystron Tube                                                 1                       Isolator                                     1

Frequency Meter                                            1                      Variable Attenuator                  1

Radiation Pattern turn table                          1                       Standard gain horn                   2

Detector mount                                              1                      Cooling fan                               1

VSWR meter solid state                                1                      Sectoral horn-E-plane             1

Sectoral horn-H-plane                                   1                      Parabolic disc                           1

Coaxial to W/G adopter                                1                      Twist                                           1

Moveable Short Precision                            1                      Stand                                           4

Bends                                                               2                     Tripod Stand                               1

BNC Cable                                                      1


Versatile and Precise Antenna Measurement

Engineered for flexibility, the systems universal mount accommodates various antenna types, while the adjustable turntable allows continuous, precise 360-degree rotation. The analog meter ensures dependable signal strength readings, supporting professionals in achieving meticulous measurements for diverse applications.

Built for durability and Ease of Use

With powder-coated steel and ABS plastic construction, this polar plotter withstands regular use in demanding environments. User-serviceable parts and low maintenance needs make it a cost-effective solution for testing facilities, research labs, and production environments alike.

FAQs of To Measure The Polar Pattern Of The Antenna:

Q: How do I use the turntable to measure the antennas polar pattern?

A: To measure an antennas polar pattern, securely mount your antenna using the universal mount. Set the desired rotation speed (1-10 RPM) and begin capturing signal strength with the analog needle meter as the turntable rotates from 0 to 360 degrees. Results can also be digitally recorded using the PC interface.

Q: What types of antennas are compatible with this measurement system?

A: The system features a universal mount, allowing compatibility with various standard antenna types. This makes it suitable for most conventional laboratory, industrial, or experimental antennas.

Q: When is calibration necessary, and how is it performed?

A: The system is factory calibrated. However, should manual recalibration be required, users can easily adjust settings using the provided manual adjustment option, ensuring ongoing measurement accuracy.

Q: Where can this polar pattern measurement system be set up?

A: You can set up the system on a laboratory bench or on a tripod, allowing for flexible use in both indoor labs and field environments.

Q: What is the process for connecting antennas and recording data?

A: Connect your antenna using coaxial cables with BNC connectors. As the system rotates the antenna, the analog meter provides real-time readings, which may be manually noted or digitally recorded using the optional PC interface.

Q: What are the benefits of its noise immunity and shielded design?

A: The shielded construction minimizes electromagnetic interference, ensuring that measurement results are reliable and unaffected by external noise sources, crucial for precision testing.
