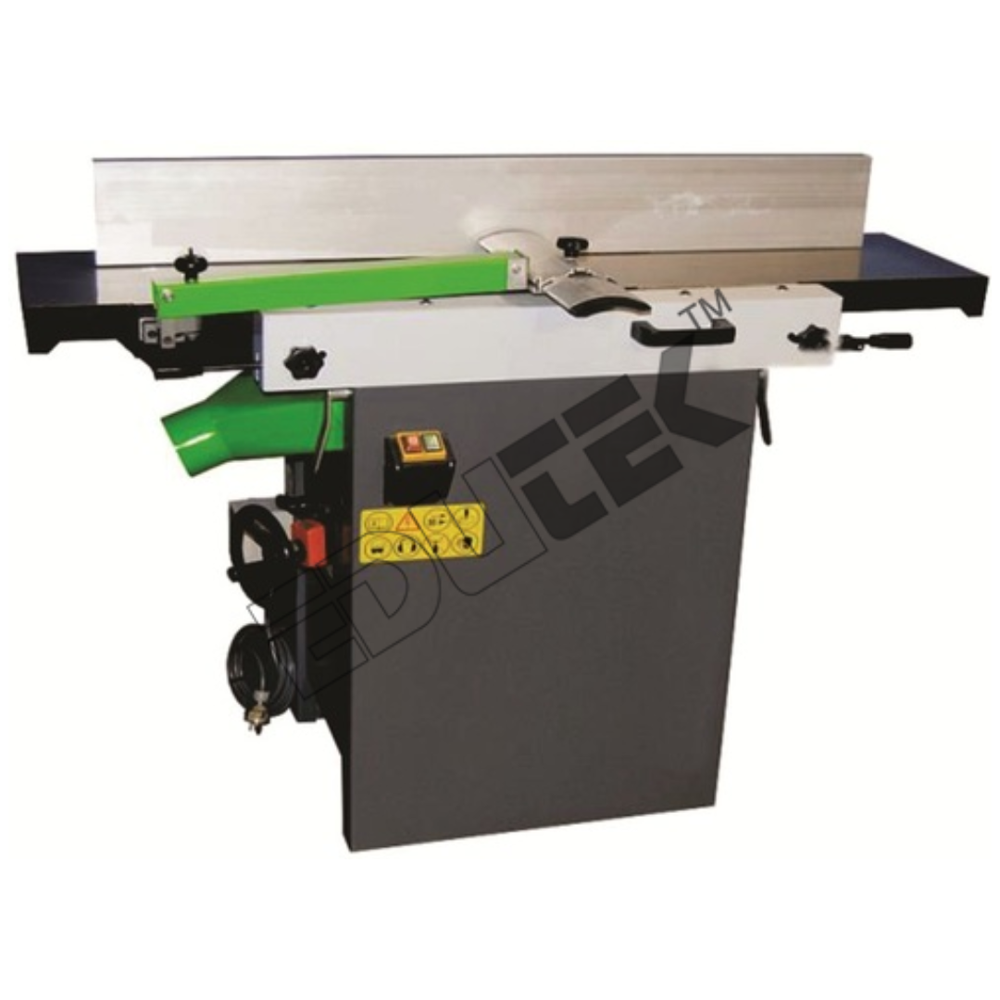

THICKNESSOR PLANER

Get a Price/Quote

MOQ : 1 Piece

THICKNESSOR PLANER Specification

Display Type
Analog scale

Interface Type
Manual feed

Operating Voltage
220-240V

Response Time
Immediate

Resolution
0.1 mm

Application
Wood thickness planning and surfacing

Max Height
160 mm

Frequency
50 Hz

Features
Heavy duty body, high precision

Automation Grade
Semi-automatic

Specimen Size
Maximum 330 mm width, 3160 mm thickness

Measuring Range
3-160 mm Thickness

Test Range
3-160 mm Thickness

Accuracy
0.2 mm

Mounting Type
Floor mounted

Power Supply
220-240V, 50Hz, Single Phase

Port Size
100 mm (Dust Port)

Equipment Type
Thicknesser Planer

Usage
Industrial wood working

Capacity
High duty cycle

Machine Weight
140 kg

Test Speed
6000 RPM

Test Width
330 mm

Test Stroke
305 mm

Control Mode
Manual

Colour
Green

Feed Speed
7 m/min

Safety Features
Emergency stop, blade guard

Number of Blades
3

Cutterhead Diameter
75 mm

Body Material
Cast iron & steel

Motor Power
3 HP

Table Size
850 x 330 mm

Noise Level
85 dB

Material Compatibility
Wood

THICKNESSOR PLANER Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C)

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Packaging Details
carton box, export quality also available

Main Export Market(s)
Asia, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001, 14001 ,CE

About THICKNESSOR PLANER

THICKNESSOR PLANER

Voltage : 380V
Phase : 3
Motor : 7.5 HP
blades length : 450mm
Length working width : 460mm
Working table dimensions : 640x1000mm (max)
Working height : 300mm
Feeding roller dia : 67mm
Cutter block size : 120mm
Knives : 4
Spindle speed : 5000rpm

Heavy-Duty Performance for Industrial Needs

Engineered for demanding industrial environments, this thicknesser planer ensures consistency across high volumes of work. Its reliable cast iron and steel build allows for extended use, while the powerful 3 HP motor and high cutterhead speed provide seamless, efficient thickness planning on a variety of wood types. Safety features and ergonomic design increase both operator confidence and productivity.

Precision and User-Friendly Operation

Equipped with an accurate analog scale, this planer supports thickness adjustments with 0.2 mm accuracy and 0.1 mm resolution. Manual control enables users to fine-tune settings during operation. Immediate response time and easy-to-read display streamline the planning process, ensuring every pass meets your projects requirements without unnecessary delay.

Optimal Safety and Clean Work Environment

Operator safety is prioritized with an integrated emergency stop, a robust blade guard, and a low noise level of 85 dB. The 100 mm dust port provides efficient extraction for wood chips and dust, maintaining a clean and healthy work area. These features help create a safer and more comfortable experience for users during long or intensive sessions.

FAQs of THICKNESSOR PLANER:

Q: How do I adjust the thickness on this planer?

A: You can set the desired thickness using the manual control interface and analog scale, which allows for adjustments from 3 mm up to 160 mm. The scales 0.2 mm accuracy and 0.1 mm resolution ensure precise planning every time.

Q: What types of wood can this thicknesser planer handle?

A: This machine is designed primarily for wood materials, accommodating a variety of hardwoods and softwoods up to 330 mm in width and 160 mm in thickness, making it versatile for different woodworking projects.

Q: When should I use the emergency stop feature?

A: The emergency stop should be activated in the event of any unsafe operating condition, mechanical issue, or if you need to halt the machine immediately for safety reasons.

Q: Where can this thicknesser planer be installed?

A: It is built for industrial woodworking spaces and should be mounted on the floor in a stable, well-ventilated area with access to a 220-240V, single-phase power supply and adequate dust extraction.

Q: What is the process for feeding wood into the planer?

A: Wood is manually fed into the planer at a feed speed of 7 m/min. Operators should ensure the blade guard is in place and the workpiece lies flat on the table for optimal surface results and safety.

Q: How does this thicknesser benefit professional woodworking?

A: With its high duty cycle, precise calibration, and heavy-duty construction, this planer speeds up large-scale projects, improves finish quality, reduces manual labor, and enhances workplace safety.
