Send InquiryTHERMISTOR CHARACTERISTICS APPARATUS WITH ALUMINUM PANEL & DIGITAL PANEL METERS
MOQ : 1 Piece
THERMISTOR CHARACTERISTICS APPARATUS WITH ALUMINUM PANEL & DIGITAL PANEL METERS Specification
- Usage
- ENGINEERING ELECTRONICS INSTRUMENTS
- Components
- Thermistor, Aluminum Panel, Digital Panel Meters, Variable Resistor, Connecting Terminals, Power Switch, Heating Arrangement, Cooling Fan
- Output
- Digital Meter Readout of Voltage, Current, and Resistance
- Resolution
- Digital Meters typically 0.01 units
- IP Rating
- IP20 (Indoor Use Only)
- Interface
- Hardwired Panel Connections
- Features
- Sturdy Aluminum Panel, Digital Panel Meters, Fully Wired & Ready to Use, User Manual Included, High Accuracy Readings, Educational Purpose
- Operating Temperature
- 0C to 55C
- Response Time
- Fast Response Thermistor
- Power Source
- Mains Powered
- Display Type
- LED/LCD Digital Panel Meters
- Input
- AC Mains Input
- Sensors Specification
- NTC Thermistor, Resistance Range 1K to 100K Ohm
- Power Supply
- 230V 10% AC, 50 Hz
- Product Type
- THERMISTOR CHARACTERISTICS APPARATUS WITH ALUMINUM PANEL & DIGITAL PANEL METERS
- Application
- ENGINEERING ELECTRONICS INSTRUMENTS
- Rated Voltage
- 230V AC
- Supply Voltage
- 230V AC
- Size
- Portable Bench-top Instrument
- Dimension (L*W*H)
- Approx. 340 mm x 220 mm x 120 mm
- Function
- To study and plot the V-I characteristics and resistance vs temperature characteristics of a thermistor.
- Color
- Silver/White (Aluminum Panel)
- Weight
- Approx. 2.5 kg
- Capacity
- Single Experiment Setup
- Current Rating
- Max. 200mA (depends on setup)
- Thickness
- Aluminum Panel approx. 2-3 mm
- Frequency
- 50 Hz
THERMISTOR CHARACTERISTICS APPARATUS WITH ALUMINUM PANEL & DIGITAL PANEL METERS Trade Information
- Minimum Order Quantity
- 1 Piece
- Payment Terms
- Cash on Delivery (COD), Cash Advance (CA), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C)
- Packaging Details
- Carton Box, Export Quality also Available
- Main Domestic Market
- All India
- Certifications
- ISO 9001, 14001, CE
About THERMISTOR CHARACTERISTICS APPARATUS WITH ALUMINUM PANEL & DIGITAL PANEL METERS
Specification:

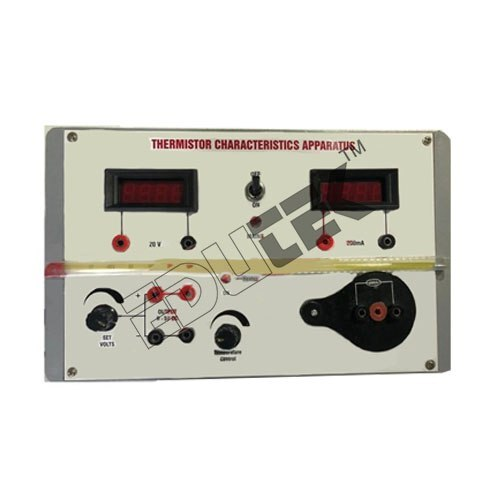

THERMISTOR CHARACTERISTICS APPARATUS WITH ALUMINUM PANEL & DIGITAL PANEL METERS
Instruments Comprises DC regulated power supply 0-10 V dc / 150mA, two meters for voltage & current measurement one glass thermistor is kept in oven.
Connections of supplies, meters & thermistor brought out at 4mm sockets.
Also provided with oven with temperature control knobe.
Durable and Safe Design
Constructed using a non-corrosive aluminum panel and strict safety features like fuse protection and overload indicators, this apparatus ensures longevity and safe operation during experiments. Anti-skid rubber feet provide stability on any benchtop surface, and panel markings facilitate error-free usage for learners and professionals.
Comprehensive Experiment Support
Factory calibration and a detailed experimental guide guarantee immediate and accurate use. The accessory kit, comprising connecting leads and a thermistor sample, allows users to start their investigations without additional purchases. Clearly labelled controls and digital displays streamline the experiment process.
Precision Measurement and Control
Equipped with digital LED/LCD meters for voltage, current, and resistance, the apparatus provides high-resolution measurements (typically 0.01 units). Adjustable potentiometers enable fine-tuned control of experiment conditions, while a built-in heater and integrated mini fan manage the test temperature efficiently.
FAQs of THERMISTOR CHARACTERISTICS APPARATUS WITH ALUMINUM PANEL & DIGITAL PANEL METERS:
Q: How does the cooling system work in the Thermistor Characteristics Apparatus?
A: The apparatus integrates a mini fan that provides rapid cooling after heating cycles, ensuring consistent temperature control and reducing downtime between experiments. This system helps maintain accuracy and protects components from overheating.Q: What is the benefit of the anti-corrosive aluminum panel and factory calibration?
A: The anti-corrosive aluminum panel enhances durability and protects against environmental damage, extending the instruments lifespan. Factory calibration ensures the apparatus is ready for accurate measurements right out of the box, minimizing setup time and guaranteeing reliable results.Q: Where is this instrument best utilized and what are its primary applications?
A: This apparatus is ideal for engineering and electronics labs, primarily used in educational institutions for studying thermistor V-I and resistance-temperature characteristics. Its benchtop design makes it convenient for classroom demonstrations, research, and hands-on learning.Q: What safety features are included in the apparatus?
A: Safety is ensured with fuse protection to safeguard against electrical faults and an overload indicator that warns users of excessive current flow. The instrument also complies with ISI/CE safety standards for reliable academic and professional usage.Q: How does the digital panel meter improve experiment accuracy and usage?
A: The integrated digital panel meters display voltage, current, and resistance readings with high resolution, ensuring precise data collection. This electronic readout simplifies monitoring and allows users to track results efficiently during the experiment.Q: What accessories and components are supplied with the device?
A: Each unit includes connecting leads, a thermistor sample, and a comprehensive instruction manual. Essential built-in components include the aluminum panel, digital panel meters, variable resistor, power switch, heating and cooling systems, and labelled terminals for ease of operation.Q: When can the apparatus be used after purchase?
A: Thanks to its factory calibration and complete accessory kit, the Thermistor Characteristics Apparatus is immediately ready for use right out of the box. Follow the step-by-step instructions in the user manual to set up and commence experiments without delay.
