Thermal Expansion Training Panel

Price 50.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Thermal Expansion Training Panel Specification

Feature
Highly Efficient

Weight
100 Kilograms (kg)

Accuracy
100 %

Dimension (L*W*H)
1650x700x1850 Millimeter (mm)

Type
THERMAL EXPANSION TRAINING PANEL

Usage
Laboratory

About Thermal Expansion Training Panel

THERMAL EXPANSION TRAINING PANEL

The trainer comprises original components as used in heating and sanitation systems and is therefore relevant in practice.

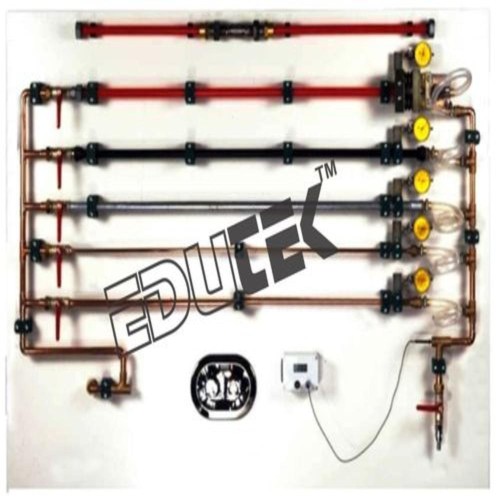

There are six expansion sections. One of the sections is fitted with a compensator. The elongation of the pipes is indicated on dial gauges. A force measuring device enables the expansion force to be determined.

Learning Objectives / Experiments

Thermal expansion of different materials such as
PVC, PE, copper and steel
Determination of thermal expansion coefficients and the expansion force
Measurement of pipe elongation
Effect of varying pipe diameter
Expansion compensator

Specification

Investigating the thermal expansion of different pipe sections
Pipe sections can be selected by ball valves
Water connections made using quick-release couplings
Operation with hot and cold water supplies
Adjustment of the water temperature using mixing battery with thermocouple
Temperature measurement using battery-operated digital thermometer
Force measuring device to determine the expansion force

Technical Data

Pipe section length: 1000mm

Nominal diameters

PVC, PE, Cu: DN 15
Cu: DN 8
Steel: 1/2"
Mixing battery connection: 1/2"

Force measuring device

Spring rate per spring: 78N/mm
Total spring rate c: 156N/mm

Measuring range

Temperature: -50...90°C

Dimensions and Weight

LxWxH: 1650x700x1850mm
Weight: approx. 100kg

Ideal for Laboratory Environments

This training panel is designed to deliver accurate demonstrations and experiments related to thermal expansion. Its sturdy build and precise measuring capabilities make it perfect for laboratory use in both educational and industrial contexts.

Unmatched Accuracy and Efficiency

Engineered for 100% accuracy, the panel allows users to observe thermal expansion effects clearly. Its high efficiency minimizes energy consumption while maximizing learning opportunities. This blend of performance and reliability enhances its overall value.

FAQs of Thermal Expansion Training Panel:

Q: How does the Thermal Expansion Training Panel work in a laboratory setting?

A: The panel simulates thermal expansion by heating a specimen, allowing students and researchers to observe and measure dimensional changes with high accuracy. This hands-on experience is vital for understanding physical properties under temperature changes.

Q: What features make this training panel highly efficient?

A: It combines robust materials, precision engineering, and streamlined operation, resulting in reliable performance and minimal maintenance. Its efficiency supports quicker experiments and reduces downtime.

Q: When should this training panel be used during experiments?

A: Use the panel whenever you need to demonstrate, teach, or analyze thermal expansion phenomena in a controlled laboratory setting. Its suitable for both introductory lessons and advanced research.

Q: Where is the Thermal Expansion Training Panel manufactured and exported from?

A: This panel is manufactured, supplied, and exported from India, supporting both domestic and international laboratory needs.

Q: What is the process for conducting experiments using this panel?

A: Select the sample to be tested, secure it within the apparatus, and set the desired heating parameters. The panel allows controlled heating, and the integrated measurement system provides accurate readings of dimensional changes.

Q: Are there any specific usage benefits for educational institutions?

A: Yes, educational institutions benefit from its high accuracy, reliability, and clear visual demonstration of thermal expansion principles, making it an excellent teaching aid for physics and engineering courses.
