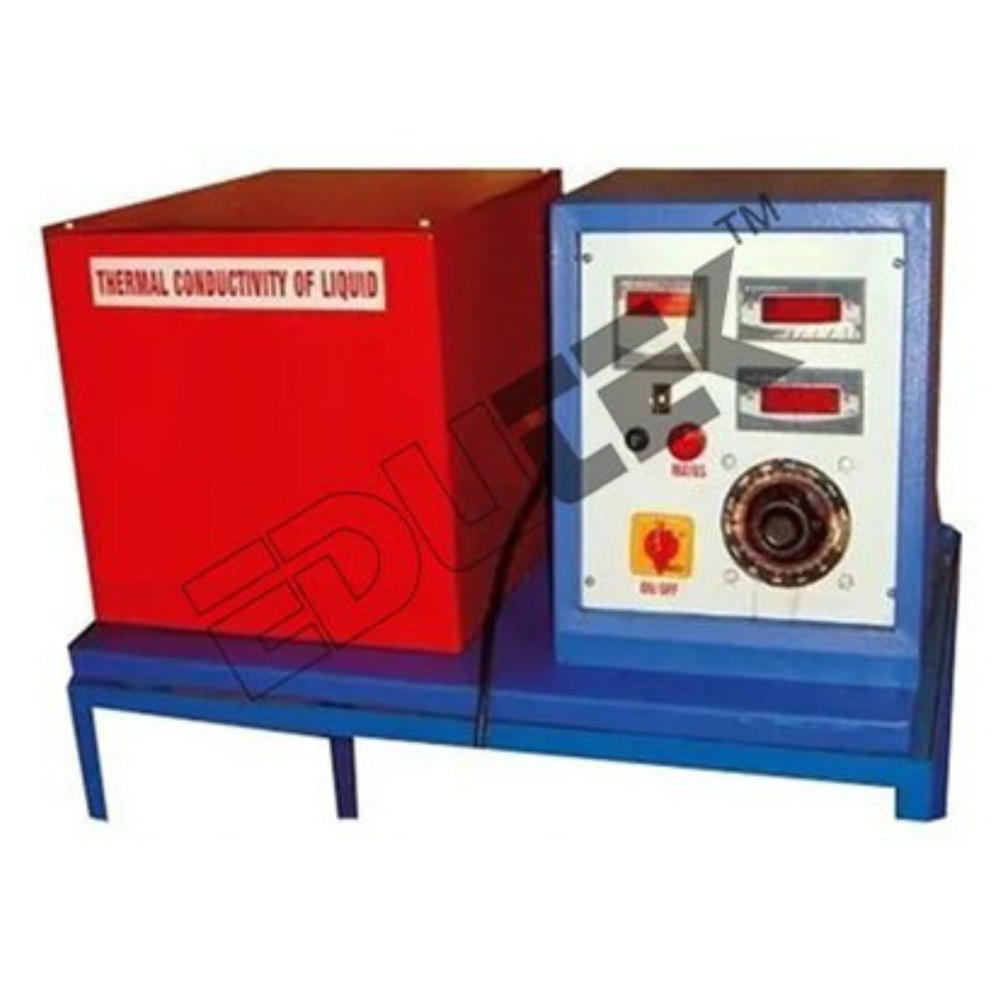

THERMAL CONDUCTIVITY OF LIQUIDS APPARATUS

Name: THERMAL CONDUCTIVITY OF LIQUIDS APPARATUS
Brand: EDUTEK INSTRUMENTATION
Price: 14200.0 INR
Availability: InStock

Price 14200.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

THERMAL CONDUCTIVITY OF LIQUIDS APPARATUS Specification

Product Type
THERMAL CONDUCTIVITY OF LIQUIDS APPARATUS

Power Source
Electricity Supply: 1 Phase, 220 V AC, 2Amps

Warranty
1 Year

Core Components
170 mm (approx.) Height: 22 mm(approx.) Dia 100 mm, sandwiched between copper plates Ceramic Wool: Made of Aluminum forwater circulation RTD PT100 type (6 Nos.) Digital Voltmeter: 0300 Volt DigitalAmmeter: 02 Amp Varian: 0230 V, 2 A Digital Temperature Indicator: 0199.9 C,with multichannel switch On/Off switch, Mains Indicator etc. Valves are provided for drain, charging&overflow line to make system flexible Fin material: Heater InsulationCooling chamber Temperature Sensors Control panel Thermal Conductivity for liquid MSCabinet to accommodate the slab assembly Powder coated base plate.

Application
Heat Transfer Laboratory Equipment

Usage
Heat Transfer Laboratory Equipment

Type
THERMAL CONDUCTIVITY OF LIQUIDS APPARATUS

THERMAL CONDUCTIVITY OF LIQUIDS APPARATUS Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash on Delivery (COD), Cash Advance (CA), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C)

Packaging Details
Carton Box, Export Quality also Available

Main Export Market(s)
Asia, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001, 14001, CE

About THERMAL CONDUCTIVITY OF LIQUIDS APPARATUS

Specification:

THERMAL CONDUCTIVITY OF LIQUIDS APPARATUS

We are offering a wide range of HeatTransfer lab Equipment and Thermal Conductivity of Liquids Apparatus.

Technical details

170 mm (approx.) Height: 22 mm(approx.) Dia 100 mm, sandwiched between copper plates

Ceramic Wool: Made of Aluminum forwater circulation RTD PT100 type (6 Nos.)

Digital Voltmeter: 0300 Volt DigitalAmmeter: 02 Amp Varian: 0230 V, 2 A Digital

Temperature Indicator: 0199.9 C,with multichannel switch On/Off switch, Mains Indicator etc.

Valves are provided for drain, charging&overflow line to make system flexible

Fin material: Heater InsulationCooling chamber Temperature Sensors Control panel

Thermal Conductivity for liquid MSCabinet to accommodate the slab assembly Powder coated base plate.

Experiments

Determination of Thermal conductivityof various kinds of liquids comparative study of variation of thermalconductivity of different liquids with temperature

Utilities required: Water supply 5 lit/min (approx.) Drain

Electricity Supply: 1 Phase, 220 V AC, 2Amps

Purpose and Application

This apparatus is intended for rigorous studies of the thermal conductivity properties of liquids under controlled conditions. By enabling measurement and comparison of different liquids at various temperatures, it helps students and researchers understand critical heat transfer concepts vital for numerous scientific and engineering disciplines.

System Design and Components

Core features include high-quality copper plates, ceramic wool insulation, and a precisely engineered aluminum cooling chamber. Six PT100 type temperature sensors, digital voltmeter, ammeter, and comprehensive control panel ensure reliable performance and user-friendly operation. Integrated valves allow efficient liquid handling and system maintenance.

Ease of Use and Reliability

Designed for simple integration into laboratory environments, the apparatus offers straightforward setup and intuitive controls. The inclusion of a multichannel digital temperature indicator and robust safety switches helps ensure consistent, reproducible results. Powder coated base plates and durable materials provide lasting reliability over its service life.

FAQ's of THERMAL CONDUCTIVITY OF LIQUIDS APPARATUS:

Q: How is the Thermal Conductivity of Liquids Apparatus operated in a laboratory setting?

A: To operate the apparatus, connect it to a 1 Phase, 220V AC electricity supply. Liquids are introduced via charging and overflow valves. The sample is sandwiched between copper plates and surrounded by a thermal insulation layer, while digital sensors measure temperature differences. The user can control heating and measure electrical parameters to analyze the thermal conductivity of the liquid.

Q: What experiments can be performed using this apparatus?

A: You can conduct experiments to determine the absolute thermal conductivity of various liquids and perform comparative studies to observe how their conductivity varies with temperature. This makes the apparatus essential for heat transfer education and research projects involving different fluid properties.

Q: When should I use this instrument for my research or teaching activities?

A: This instrument is recommended whenever you require precise, repeatable measurement of the thermal conductivity of liquids, especially in educational laboratories, research institutions, and industrial process studies concerning heat transfer characteristics.

Q: Where should the apparatus be installed for best results?

A: Install the apparatus on a stable laboratory bench within a heat transfer or general physics laboratory. Ensure sufficient space and access to electrical supply, water lines for circulation, and proper ventilation for safe operation.

Q: What is the process involved in determining liquid thermal conductivity with this equipment?

A: The process involves placing the test liquid in the designated slot, initiating controlled heating, and recording the temperature at multiple points via the PT100 sensors. By analyzing the temperature gradient and supplied electrical energy, thermal conductivity is calculated according to experimental protocols.

Q: What benefits does this apparatus offer compared to other methods?

A: This apparatus provides highly accurate and reproducible results due to precise temperature control, reliable componentry, and advanced digital measurement. The design's flexibility, safety features, and compatibility with many liquids make it exceptionally valuable for diverse thermal analysis studies and practical educational demonstrations.
