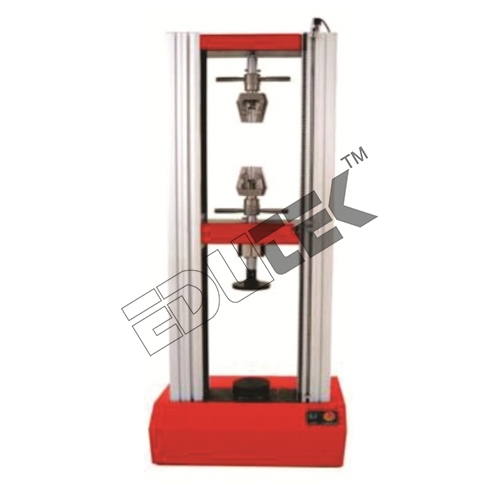

TENSILE TESTING MACHINE

Name: TENSILE TESTING MACHINE
Brand: EDUTEK INSTRUMENTATION
Price: 5000.0 INR
Availability: InStock

Price 5000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

TENSILE TESTING MACHINE Specification

Display Type
Digital LCD Display

Specimen Size
Up to 30 mm width, 200 mm length

Humidity
35% - 80% RH (operating)

Test Range
10 N 5000 N

Gas Pressure
0.6 MPa (for pneumatic grip, if equipped)

Temperature
10C - 35C (operating)

Max Height
1200 mm

Application
Rubber, Plastic, Textile, Metal, Cable, Paper

Accuracy
1% of Reading

Features
Auto calibration, Overload protection, Data storage, Graph plotting

Number of Specimens
Single specimen or multiple as per fixture

Response Time
<1 Second

Port Size
Standard 1/4 inch

Resolution
0.01 N

Operating Voltage
220V AC

Mounting Type
Floor standing

Measuring Range
0-5000 N

Hardness
Frame Hardened Steel

Interface Type
USB/RS232

Frequency
50/60 Hz

Equipment Type
Tensile Testing Machine

Power Supply
220V AC, 50 Hz

Automation Grade
Semi-Automatic / Automatic

Usage
Material Strength Testing

Capacity
Up to 5000 N (customizable)

Machine Weight
Approx. 115 kg

Test Speed
50-500 mm/min (Adjustable)

Test Width
Up to 30 mm

Test Stroke
Max. 700 mm

Control Mode
Manual / Automatic

Software Compatibility
Windows Based Software Included

Data Output
USB, Print Out, RS232

Load Cell Type
Precision Strain Gauge

Crosshead Travel
700 mm

Clamping Type
Wedge / Pneumatic / Screw Grips

Safety Device
Emergency Stop Switch

Frame Construction
Heavy Duty Rigid Construction

Accessories Included
Standard grips, Calibration Certificate, User Manual

Motor Type
AC Servo Motor

TENSILE TESTING MACHINE Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C)

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Packaging Details
carton box, export quality also available

Main Export Market(s)
Asia, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001, 14001 ,CE

About TENSILE TESTING MACHINE

TENSILE TESTING MACHINE

Maximum capacity : 500N
Effective stroke : 600mm, test
Test : Test method CRE principle
Test force range full stroke : 1%-100%
Power supply AC : 220v 50/60 HZ
Weight : 120 kg
Dimensions : 670 x 480 x 1440mm.

Robust and Accurate Material Testing

This tensile testing machine blends heavy-duty construction with high-precision technology to deliver consistent, reliable results. Designed for researchers and manufacturers, it ensures accurate tensile strength measurements while offering user-friendly digital controls, auto-calibration, and safety features for effortless operation in demanding environments.

Versatile Testing Capabilities

Supporting a wide range of materials and grips, the machine is ideal for diverse industries including plastics, metals, textiles, cables, and rubber. With an adjustable test speed and customizable capacity, it suits varied specimen types and testing standards, making it a versatile choice for quality labs and production facilities.

Intuitive Controls and Smart Connectivity

A digital LCD display and Windows-based software make setup, operation, and real-time data monitoring simple. The machine supports USB and RS232 output for easy data export and report generation, while built-in features like graph plotting and overload protection enhance overall test reliability and user safety.

FAQs of TENSILE TESTING MACHINE:

Q: How can I operate the tensile testing machine, and what control modes are available?

A: The machine can be controlled manually or set to automatic mode for convenience. Simply use the digital LCD interface and integrated Windows-based software for setup, test initiation, and real-time adjustments. The included user manual provides step-by-step operational guidance.

Q: What types of materials and specimen sizes can this machine test?

A: It is engineered to test a variety of materials including rubber, plastic, textile, metal, cable, and paper. Specimens up to 30 mm wide and 200 mm long can be accommodated, with a load capacity adjustable up to 5000 N, suitable for single or multiple samples with appropriate fixtures.

Q: When should I use wedge, pneumatic, or screw grips?

A: Select the grip type based on your specimens material and shape. Wedge grips are general-purpose, pneumatic grips are ideal for delicate samples needing uniform pressure, and screw grips are suitable for high-strength specimens, ensuring optimal clamping during testing.

Q: Where can the test results be accessed, and how is data output managed?

A: Test results are instantly displayed on the digital LCD and can be exported via USB, printed out, or communicated through RS232 interfaces. The included Windows-based software also allows for data storage, analysis, and report creation with graph plotting capabilities.

Q: What is the process for calibrating the machine and ensuring accurate results?

A: Calibration is straightforward with the auto-calibration feature and comes with a standard calibration certificate. Regular calibration is recommended for continued accuracy, and instructions are provided in the user manual.

Q: How does the safety system work during operation?

A: An emergency stop switch ensures the operators safety, halting the machine immediately if unsafe conditions occur. Additionally, the system features overload protection to prevent mechanical damage.

Q: What are the main benefits of using this tensile testing machine?

A: Key benefits include its robust construction for long-term durability, precise and rapid measurement capabilities, flexible testing modes, comprehensive software support, and safeguard features, making it an excellent choice for accurate and efficient material strength testing.
