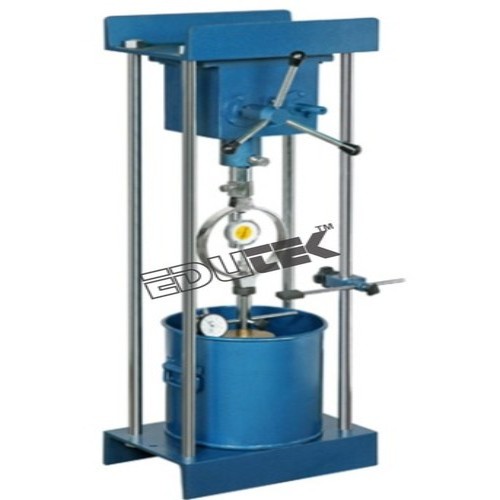

Send InquirySwell Test Apparatus
Price 20000.0 INR/ Unit
MOQ : 1 Unit
Swell Test Apparatus Specification
- Core Components
- Steel Structure and Measurement Dial
- Accuracy
- 100 %
- Product Type
- Swell Test Apparatus
- Material
- High quality metal
- Operate Method
- Manual
- Automation Grade
- Manual
- Model No
- Application
- Measures soil swell accurately
- Measurement Range
- 0-60 mm
- Warranty
- 1 Year
- Weight
- Approximately 15 Kilograms (kg)
- Color
- Blue
- Power Source
- Not Required
- Feature
- Measures soil swell accurately
- Usage
- Laboratory Testing
- Classification
- Measures soil swell accurately
- Equipment Materials
- Steel Soaking Tank, Steel CBR Mould, Perforated Base Plate, Circular Surcharge Weights, Dial Gauge, Tripod
- Type
- Swell Test Apparatus / Free Swell Index Tester / Swelling Pressure Measurer
- Display Type
- Analog Dial Gauge (for vertical expansion measurement)
About Swell Test Apparatus
SWELL TEST APPARATUS :
- Perforated plate with adjustable stem(swell plate).
- Placed on top of the soil sample to enable monitoring of swelling.
- With 3mm dia. holes 149.2mm dia.
- Dial gauge tripod.
- Used to support the dial gauge for monitoring the swelling of CBR samples.
- Made from a special non-corrodable alloy.
- Dial gauge 25mm travel, 0.01mm div.
FAQs of Swell Test Apparatus:
Q: What is the Automation Grade of the Swell Test Apparatus?
A: The Automation Grade of the Swell Test Apparatus is manual.Q: What is the warranty period for the Swell Test Apparatus?
A: The Swell Test Apparatus comes with a 1-year warranty.Q: What is the capacity of the Swell Test Apparatus?
A: The Swell Test Apparatus has a standard capacity.Q: What are the core components of the Swell Test Apparatus?
A: The core components of the Swell Test Apparatus are steel structure and a measurement dial.Q: What is the power source requirement for the Swell Test Apparatus?
A: The Swell Test Apparatus does not require a power source.
