Swell Pressure Apparatus

Price 1000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Swell Pressure Apparatus Specification

Measurement Range
0-5 kg/cm

Classification
Geotechnical Engineering / Soil Mechanics

Operate Method
Consolidation Method: A soil specimen is saturated, and load is applied to maintain a constant volume; the required load defines the swell pressure

Core Components
Load Frame, Loading Pad, Dial Gauge, Water Reservoir

Capacity
5 kg/cm or as specified Kg/day

Power Source
Electric

Model No

Frequency
50 Hz Hertz (HZ)

Temperature Range
Ambient to 50 C Celsius (oC)

Accuracy
100 %

Product Type
Soil Consolidation / Swell Tester

Usage
Used to measure pressure required to prevent soil swelling

Voltage
220 V AC Volt (v)

Automation Grade
Manual

Application
Foundation design in black cotton soil regions

Feature
Highly Efficient

Equipment Materials
Mild Steel, Stainless Steel, Acrylic

Type
Swell Pressure Apparatus

Display Type
Dial Gauge and Digital Options

Dimension (L*W*H)
500 mm x 350 mm x 600 mm (approx.) Millimeter (mm)

Weight
Approx. 20 kg Kilograms (kg)

Plunger Travel
Up to 50 mm

Pressure Gauge Resolution
0.01 kg/cm²

Water Reservoir Capacity
2 L

Finish
Powder Coated Structure

Sample Size
38 mm to 100 mm diameter (customizable)

Vertical Swell Measurement
Provided by Dial Gauge (0.01 mm least count)

Packing Type
Export Wooden Packaging

About Swell Pressure Apparatus

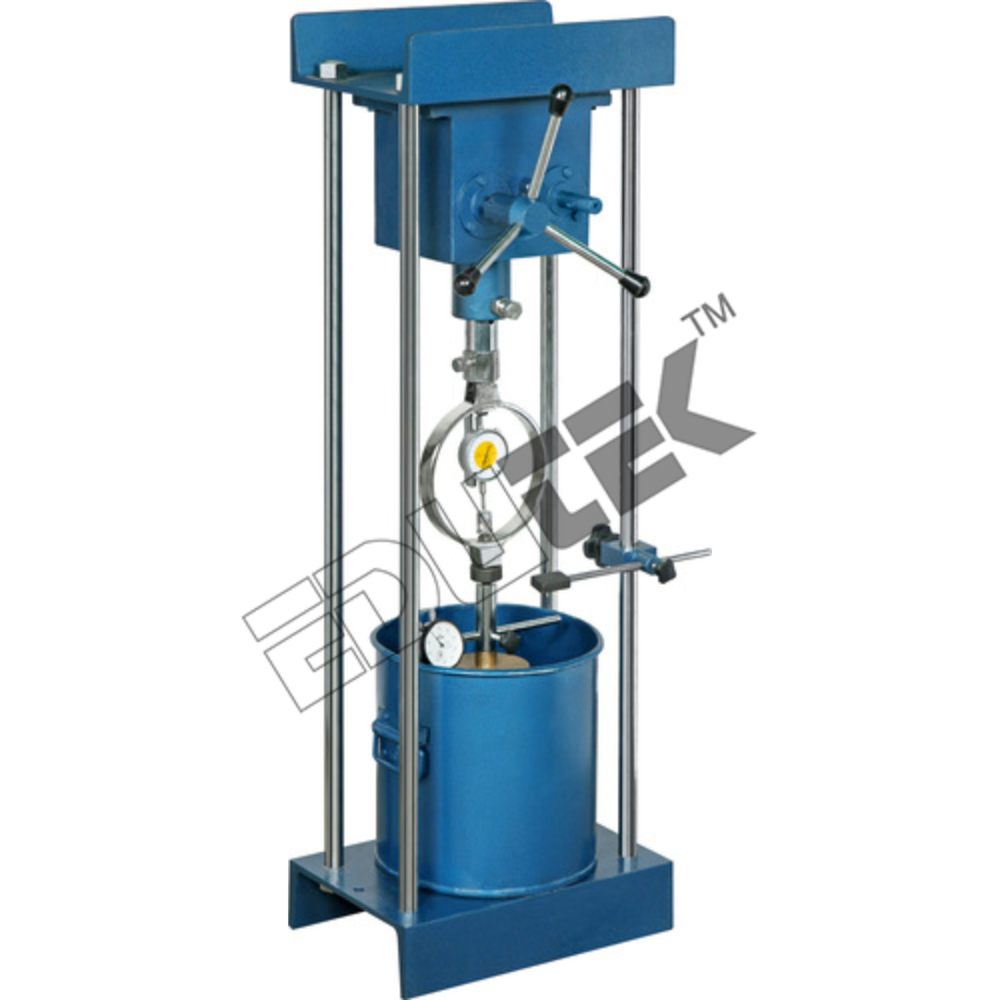

Swell Pressure Apparatus

With the help of our state-of-the-art infrastructure and experience of our experts, we have been able to manufacture a wide range of Swell Pressure Apparatus, which is provided with high sensitivity proving ring, 2.5 KN or 5 KN fitted with 0.002 mm dial gauge with certificate in a nice wooden carrying case. These are catering to the requirements of construction, defense and agriculture industries.

Consists of one Load Frame, hand operated 50 KN one swell mould, 100mm dia x 127.3 mm ht x lOOOc.c. volume with base plate and collar., one Perforated Swell Plate 100 mm dia x 16 mm thick, one spacer 100 mm dia x 12.7 mm thick, two porous stones, one transfer bar, one steel ball and one Soaking Tank, 250 mm dia x 210 mm high. Without dial gauge and proving ring.Accessories:High sensitivity proving ring, 2.5 KN or 5 KN fitted with 0.002 mm dial gauge with certificate in a nice wooden carrying case.Dial gauge 0.01 mm x 25 mm travel.

Precision in Soil Swell Pressure Measurement
Engineered for laboratory use, the SPL-SPA01 Swell Pressure Apparatus ensures precise measurement of soil swell pressure and vertical expansion. The high-resolution gauges and customizable sample size capability support a range of research and testing needs, making it valuable in geotechnical studies and construction material assessment. Its robust, powder-coated structure grants durability and enduring performance.

Efficient & Versatile Laboratory Solution
This apparatus has a user-friendly design, suitable for diverse soil testing applications. It includes a 2 L water reservoir for continuous testing, a travel range of up to 50 mm for various soil types, and operates under voltage of 220 V AC. The manual operation and clear display optionsdial or digitalmake it convenient for frequent lab use, while its export-standard wood packaging ensures safe delivery.

FAQs of Swell Pressure Apparatus:

Q: How does the Swell Pressure Apparatus operate during soil testing?

A: The apparatus works by applying measured pressure, via a precision load frame and plunger, on soil samples placed in its chamber. The dial gauge records vertical swell, while the pressure gauge with 0.01 kg/cm resolution accurately captures the equivalent swelling pressure developed in the sample during water saturation.

Q: What kind of samples can be analyzed with this equipment?

A: It is suitable for round soil samples with diameters ranging from 38mm up to 100mm. The apparatus can be customized to handle various diameters within this range, making it versatile for different research and industrial requirements.

Q: When is it ideal to use the Swell Pressure Apparatus in the laboratory process?

A: The apparatus should be employed during soil characterization or geotechnical investigations, particularly when assessing the swelling behavior and pressure exerted by expansive soils upon water absorption, which is crucial before construction or foundation planning.

Q: Where is the typically used and supplied from?

A: This device is used in soils and geotechnical laboratories in research institutions, universities, and civil engineering industries. It is manufactured and exported from India, supplied in export-quality wooden packaging for global and domestic laboratories.

Q: What is the process for measuring vertical swell and pressure with this device?

A: First, prepare and insert the soil specimen in the chamber. Fill the water reservoir (2 L capacity) and allow water to contact the sample. As the sample swells, the vertical movement is measured by the dial gauge (0.01 mm least count), and the corresponding pressure is recorded via the pressure gauge, within the 0-5 kg/cm range.

Q: How does using this apparatus benefit laboratory soil analysis?

A: The equipment offers high accuracy (100%) and efficiency, allowing reliable, reproducible swell pressure data vital for safe infrastructure design in areas with expansive soils. Its customizable capacity and robust materials ensure longevity and adaptability for repeated laboratory use.
