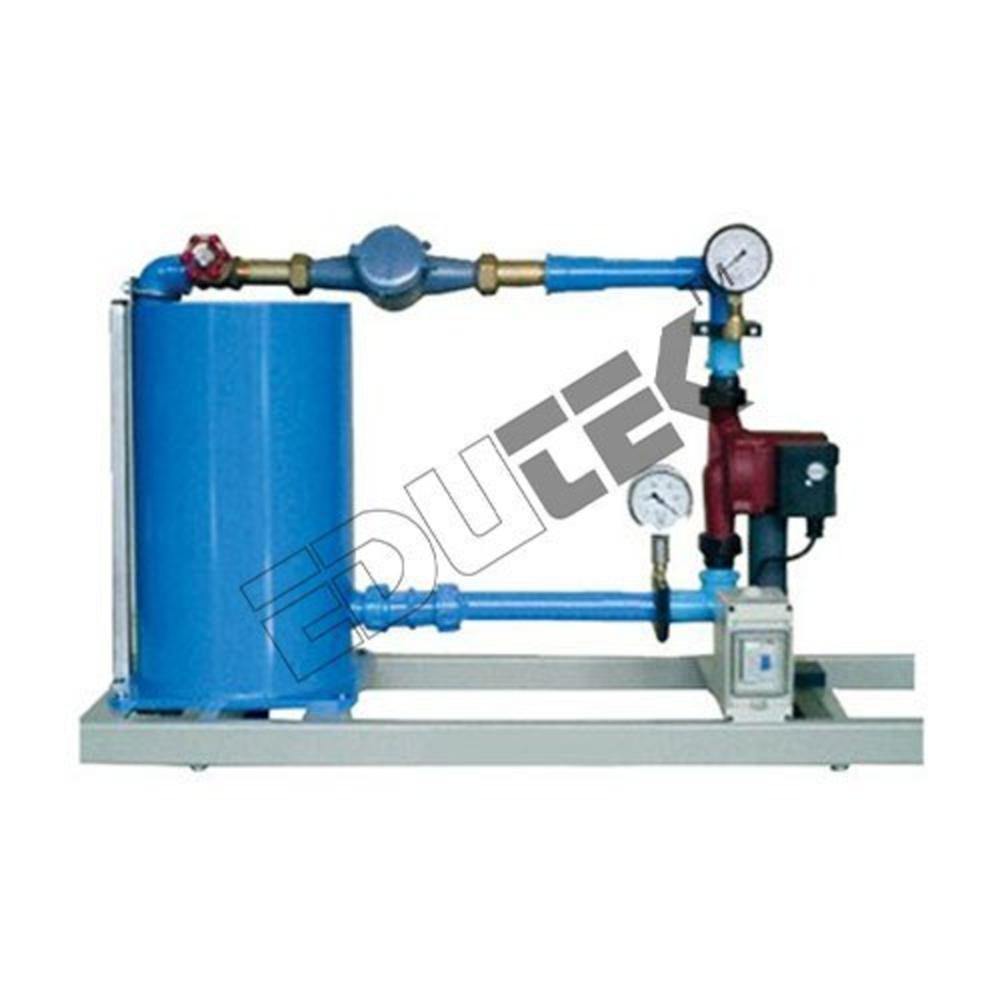

SUBMERSIBLE PUMP TEST RIG

Price 500.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

SUBMERSIBLE PUMP TEST RIG Specification

Model No
FM-012

Power Source
Electric (Single Phase AC)

Frequency
50 Hz

Automation Grade
Semi-Automatic

Measurement Range
Flow rate: 040 LPM, Pressure: 06 kg/cm

Capacity
1 HP Pump (25-40 LPM, 1HP) and 0.5 HP (15-20 LPM, 0.5HP)

Temperature Range
Ambient to 80C

Voltage
220V AC

Accuracy
1% for pressure and flow measurement

Core Components
Submersible Pump, Control Panel, Flow Measurement System, Sump and Measuring Tank

Usage
Fluid Mechanics Lab Equipment

Application
Fluid Mechanics Lab Equipment

Feature
Demonstrates performance characteristics of submersible pump, energy meter provided for input power measurement

Product Type
SUBMERSIBLE PUMP TEST RIG

Equipment Materials
Mild Steel powder coated frame, Stainless Steel tank

Type
Test Rig for Submersible Pump

Display Type
Digital / Analog pressure gauge and digital flow meter

Dimension (L*W*H)
Approx 1200 x 600 x 1200 mm

Weight
Approx 80-120 kg (varies with configuration)

SUBMERSIBLE PUMP TEST RIG Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash on Delivery (COD), Cash Advance (CA), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C)

Packaging Details
Carton Box, Export Quality also Available

Main Export Market(s)
Asia, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001, 14001, CE

About SUBMERSIBLE PUMP TEST RIG

Specification:

SUBMERSIBLEPUMP TEST RIG

FEATURES

Characteristic curve of a Submersible pump

Investigation of a Submersible pump

Drive with variable speed via frequency converter

Ball valve to adjust the head

Manometers on the inlet and outlet side of thepump

Digital display of speed and power

Measuring the inlet and outlet pressure

Determining the flow rate

Recording the pump characteristics for differentspeeds

Power and efficiency curves

Measuring the electrical drive power

Calculating the efficiency

Comprehensive Pump Performance Analysis

This test rig allows users to conduct detailed performance assessments of submersible pumps. It comes with advanced instruments to measure flow rate, pressure, and energy consumption, facilitating the plotting of H-Q and efficiency curves vital for understanding pump behavior under varying conditions.

Durable, User-Friendly Design

Built on a powder-coated mild steel frame and equipped with stainless steel tanks, the rig is designed for long-lasting use in laboratory environments. With both digital and analog measurement displays, as well as protection relays, it ensures ease of operation and safety during every test session.

Ideal for Fluid Mechanics Applications

The test rig is especially suited for academic laboratories, delivering practical demonstrations of pump theory and mechanics. Its straightforward installation and semi-automatic operation make it accessible for students and researchers alike to analyze the fundamentals of submersible pump performance.

FAQs of SUBMERSIBLE PUMP TEST RIG:

Q: How does the Submersible Pump Test Rig ensure motor protection during operation?

A: The rig features an integrated relay that protects the pump motor from overload and dry run scenarios, effectively preventing motor damage during abnormal operating conditions.

Q: What types of measurements can be performed with this test rig?

A: You can measure flow rate (040 LPM), pressure (06 kg/cm), and input power, enabling you to plot head-flow (H-Q) and efficiency curves using the digital/analog gauges and energy meter provided.

Q: When should this test rig be used in a fluid mechanics lab?

A: This equipment is ideal for experiments and demonstrations related to pump performance analysis, efficiency studies, and practical understanding of fluid transfer systems, especially in educational and research settings.

Q: Where can the Submersible Pump Test Rig be installed?

A: Designed with a compact footprint (approx. 1200 x 600 x 1200 mm), the test rig fits well in laboratory environments at universities, technical institutes, and research facilities.

Q: What is the process for conducting a performance test with this equipment?

A: Users start by filling the stainless steel tank, adjusting the flow through the control panel, and observing measurements on the digital/analog displays. Data collected helps plot H-Q and efficiency curves under various operating conditions.

Q: How does using this test rig benefit students and researchers?

A: It offers hands-on experience in understanding pump mechanics and energy measurements, facilitating deeper insights into fluid transfer principles and energy management in submersible pumps.

Q: What fluids and temperature ranges can the rig handle?

A: The equipment is designed to handle water at ambient temperatures up to 80C, making it suitable for a wide range of standard laboratory applications.
