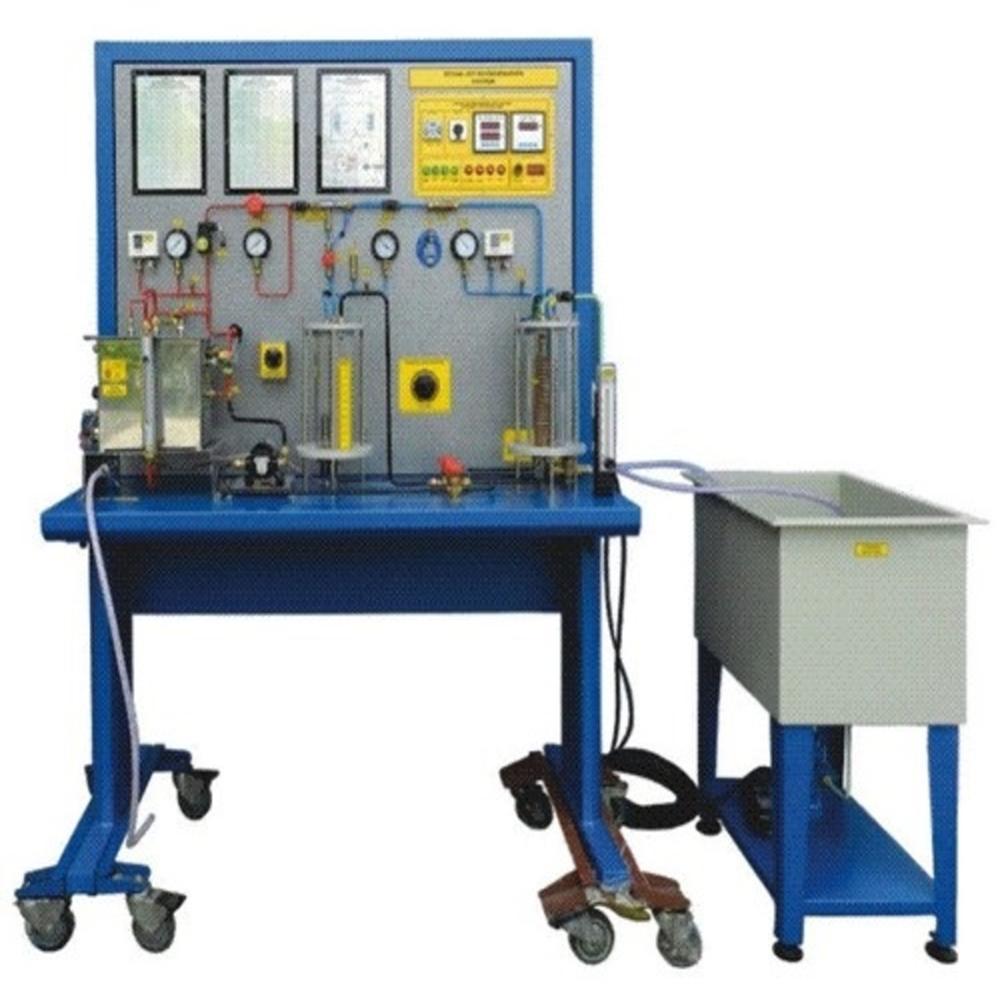

STEAM JET REFRIGERATION TRAINER

Price 1000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

STEAM JET REFRIGERATION TRAINER Specification

Temperature Range
0C to 100C

Accuracy
100 %

Power Source
230V AC Electrical

Product Type
STEAM JET REFRIGERATION TRAINER

Capacity
Approx. 1 Liter (lab scale)

Core Components
Steam Jet Ejector, Condenser, Evaporator, Measuring Instruments

Measurement Range
0-100C

Automation Grade
Manual

Model No
SJR-100/2024

Feature
Visualization of thermodynamic process, Easy operation, Compact design

Frequency
50 Hz

Voltage
230V

Classification
STEAM JET REFRIGERATION TRAINER

Equipment Materials
Stainless Steel, Borosilicate Glass, Aluminum Base

Type
STEAM JET REFRIGERATION TRAINER

Usage
Laboratory, Educational Demonstration

Display Type
ANALOG

Dimension (L*W*H)
900 mm x 450 mm x 600 mm

Weight
35 kg (approx.)

Educational Use
Suitable for thermodynamic cycle study

Evaporator Type
Shell and coil

Pump Type
Water ring vacuum pump

Ejector Material
Stainless steel

Cooling Rate
Rapid cooling under vacuum conditions

Safety Features
Overload protection, Emergency shut off

Observation Window
Borosilicate glass

Test Points
Multiple thermocouple and pressure points

STEAM JET REFRIGERATION TRAINER Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C)

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Packaging Details
carton box, export quality also available

Main Export Market(s)
Eastern Europe, Western Europe, Middle East, Africa, Asia

Main Domestic Market
All India

Certifications
ISO 9001, 14001 ,CE

About STEAM JET REFRIGERATION TRAINER

STEAM JET REFRIGERATION TRAINER

Edutek Instrumentation are Manufacturer and Supplier Company in India,We are Exporter in India and other country The refrigerant in the evaporator (flooded type) absorbs the ambient heat or the heat form the load heater and evaporates.
the tank and change the refrigerant into steam which drives the eductor (steam jet compressor). Pressure and temperature of various points
are monitored and analyzed to get the conclusion.

Features:

The trainer is built around a special work bench that incorporates a demonstration board onto which the components are mounted. The
components are neatly laid out in a manner similar to the refrigeration circuit so as to be easy to understood. The refrigeration circuit is

Hands-on Thermodynamic Learning

The STEAM JET REFRIGERATION TRAINER offers a comprehensive platform for students and professionals to observe, measure, and analyze steam jet refrigeration cycles. With enhanced visibility through borosilicate glass windows and multiple test points, the equipment enables real-time tracking of temperature and pressure changes, supporting a deeper understanding of refrigeration technology.

Durable and Safe Design

Engineered with stainless steel, borosilicate glass, and an aluminum base, the trainer ensures longevity and reliability in frequent lab usage. Safety is prioritized through overload protection, an emergency shut-off function, and extensive observation capabilities, making it ideal for educational environments.

Versatile Laboratory Application

Compact and easy to operate, the STEAM JET REFRIGERATION TRAINER is tailored for laboratory settings, fitting seamlessly into existing educational frameworks. Its rapid cooling capability and precise analog measurements support thorough experimental investigations, enhancing both teaching and research outcomes.

FAQs of STEAM JET REFRIGERATION TRAINER:

Q: How does the STEAM JET REFRIGERATION TRAINER facilitate the study of thermodynamic cycles?

A: This trainer simulates a complete steam jet refrigeration cycle, allowing users to visually observe and measure key parameters like temperature and pressure at multiple points. This real-time data acquisition helps learners understand the theory and practical aspects of thermodynamic processes.

Q: What safety features are included in the STEAM JET REFRIGERATION TRAINER?

A: The trainer comes equipped with essential safety elements such as overload protection, an emergency shut-off mechanism, and borosilicate glass observation windows, offering both user safety and component durability during operation.

Q: When is this trainer ideally used in educational settings?

A: Primarily designed for laboratory demonstrations, experiments, and classroom instruction, this trainer is best utilized during thermodynamics, refrigeration, or mechanical engineering practical sessions to reinforce theoretical learning with hands-on experience.

Q: Where can measurement data be collected in the STEAM JET REFRIGERATION TRAINER?

A: Measurement data, including temperature and pressure, can be collected at multiple thermocouple and pressure test points strategically located throughout the system, enabling comprehensive experimental analysis.

Q: What is the process for operating the STEAM JET REFRIGERATION TRAINER?

A: Operation involves initializing the water ring vacuum pump, introducing steam to the ejector made of stainless steel, and monitoring the cooling and condensation process via analog displays. Observation windows and test points assist in monitoring changes and recording data throughout the cycle.

Q: How does the equipment benefit laboratory demonstrations and research?

A: With its robust materials, precise measurement range, and visual access to internal processes, the trainer supports effective demonstration of thermodynamic principles, allows for accurate data collection, and enhances student engagement through hands-on experimentation.
