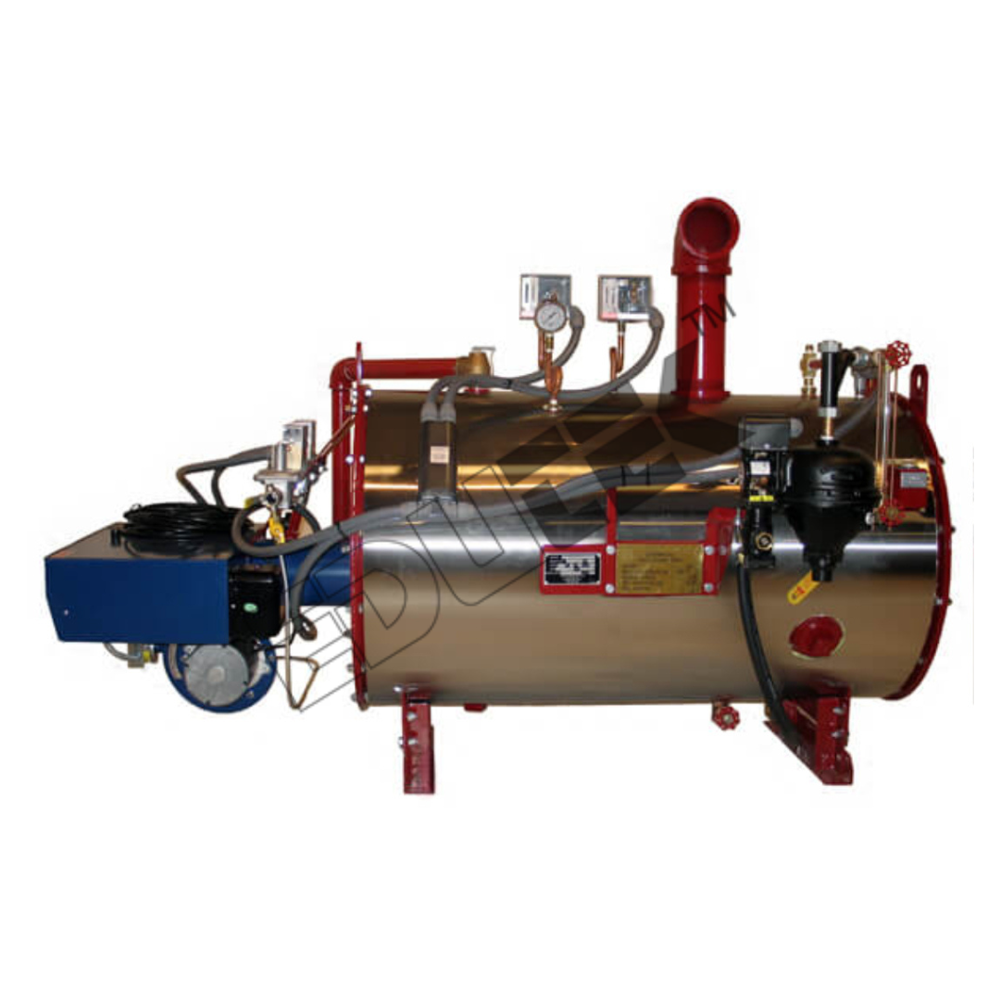

Steam Generator Unit

STEAM GENERATOR UNIT

• Laboratory-scale steam generator for wet or overheated steam

• The unit serves to familiarize students with the components and principle of operation of a steam generator and enables them to examine the characteristic values of the system.

• The steam generator could operate without the steam turbine

• The generated steam is directly liquefied in a condenser and fed back into the evaporation circuit via a tank.

• Burner heating power not less than 8 kW.

Measuring ranges:

• Temperature: 0...400°C.

• Pressure: 1.6 bar for condenser Super-heater.

• Power: 750W 230V, 60Hz.

• 1 phase Software for operation Exhaust gas analyzer.

• All required tools for operation.
