Send InquirySoil Cone Penetrometer
Price 1000.0 INR/ Unit
MOQ : 1 Unit
Soil Cone Penetrometer Specification
- Temperature Range
- Ambient Celsius (oC)
- Color
- Blue and Metallic Silver
- Accuracy
- 0.5 g %
- Classification
- Geotechnical Engineering Laboratory
- Automation Grade
- Manual
- Capacity
- 100 g x 0.1 g Kg
- Power Source
- Manual
- Model No
- Feature
- Easy Penetration Measurement, Portable Design
- Measurement Range
- 0 40 mm
- Core Components
- Plunger, Die, Support Stand
- Product Type
- Soil Consistency Tester
- Application
- Atterberg limits and soil classification
- Usage
- Determines the consistency of clayey and silty soils
- Operate Method
- Cone Drop: A standardized cone is released into a soil cup for 5 seconds; the depth of penetration is then recorded
- Equipment Materials
- Stainless Steel, Brass
- Type
- Soil Testing Instrument
- Display Type
- Analog
- Dimension (L*W*H)
- 150 mm x 150 mm x 400 mm Millimeter (mm)
- Weight
- Approx. 2 kg Kilograms (kg)
- Application
- Determining liquid limit of soils
- Plunger Weight
- 100 g (Removable)
- Operation Method
- Hand Operated
- Dial Graduation
- 0.1 mm
Soil Cone Penetrometer Trade Information
- Minimum Order Quantity
- 1 Unit
- Payment Terms
- Cash Against Delivery (CAD), Cash on Delivery (COD), Cash Advance (CA), Cash in Advance (CID), Cheque, Days after Acceptance (DA), Delivery Point (DP), Letter of Credit at Sight (Sight L/C), Telegraphic Transfer (T/T), Letter of Credit (L/C)
- Delivery Time
- 2 Week
- Sample Available
- Yes
- Sample Policy
- If order is confirmed we will reimburse the sample cost
- Main Export Market(s)
- Australia, Western Europe, Asia, Central America, North America, South America, Eastern Europe, Middle East, Africa
- Main Domestic Market
- All India, South India, Central India, North India, East India
- Certifications
- AS ISO 9001:2008, ISO 14001:2004 and OHSAS 18001:2007 CO.
About Soil Cone Penetrometer

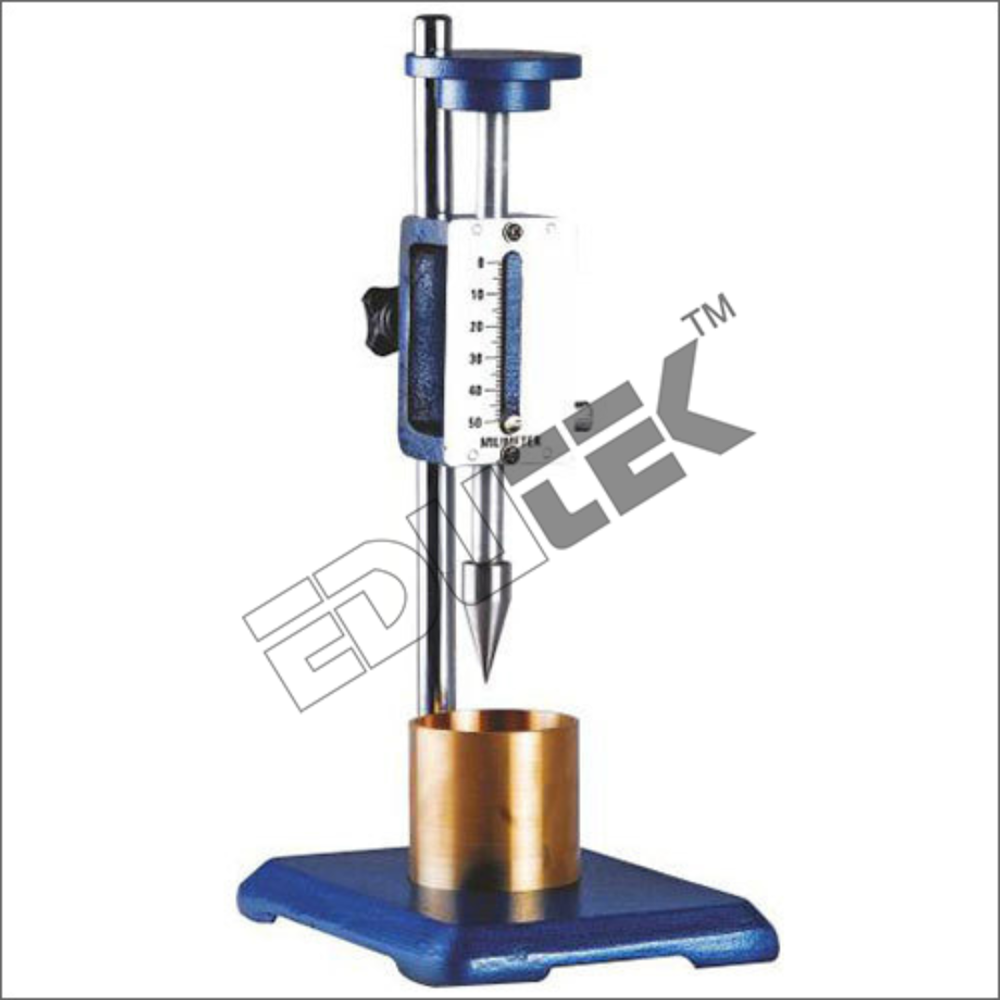

Soil Cone Penetrometer
For determining the liquid limit of soils. This is specially useful to obtain reliable and accurate results of those soil which have low plasticity index. The percentage moisture contents determined when cone with half angle of 15-30 minutes under a total sliding weight of 148 gm penetrates 25mm gives the liquid limit.
Precision Engineering for Soil Analysis
This penetrometer is constructed from high-grade stainless steel and brass, ensuring durability and precise measurements every time. The analog dial provides direct, readable results to 0.1 mm increments, which is vital for assessing soil liquid limits and consistencies accurately.
Portable and Manual Operation
Weighing approximately 2 kg and designed with portability in mind, the instrument is easily transported to various testing sites. Its manual, hand-operated mechanism requires no external power source, making it ideal for fieldwork as well as laboratory environments.
Key Component Features
The unit comprises a plunger, die, and sturdy support stand, optimizing the penetration process. The removable 100 g plunger allows for quick adjustment and versatile testing procedures, while the stable structure ensures consistent repeatability and improved measurement reliability.
FAQs of Soil Cone Penetrometer:
Q: How is the Soil Cone Penetrometer used to determine the liquid limit of soils?
A: The instrument is used by placing the soil sample in the provided die. The 100 g plunger is set and released for a defined duration or until a specified penetration (040 mm) is reached. The dial graduation (0.1 mm) accurately records plunger penetration, helping establish the soils liquid limit.Q: What materials are used in manufacturing the Soil Cone Penetrometer, and why?
A: The device is crafted from stainless steel and brass, selected for their corrosion resistance and strength. These materials ensure longevity, consistent measurement accuracy, and suitability for both laboratory and outdoor field conditions.Q: When should this penetrometer be preferred over other soil testing instruments?
A: This penetrometer is ideal when manual, highly accurate soil consistency and liquid limit measurements are required, particularly in environments lacking power sources or where portability is essential.Q: Where can the Soil Cone Penetrometer be used effectively?
A: The instrument can be utilized in soils laboratories, civil engineering sites, construction zones, and field locations where portable, manual soil testing is needed.Q: What is the process for performing a soil test with this device?
A: Prepare a well-mixed soil paste, load it into the die, and position the cone plunger at the surface. Release the plunger and observe the dial for penetration depth after a set time. Repeat the process as necessary to obtain an average, aiding in liquid limit determination.Q: What are the benefits of using a hand-operated, analog soil cone penetrometer?
A: Benefits include precision measurements independent of power sources, portable design for on-site testing, user-friendly operation, and robust construction, making it reliable for consistent, repeatable soil analysis.
