SLIP & CREEP MEASUREMENT APPARATUS

About SLIP & CREEP MEASUREMENT APPARATUS

Specification:

SLIP & CREEP MEASUREMENT APPARATUS

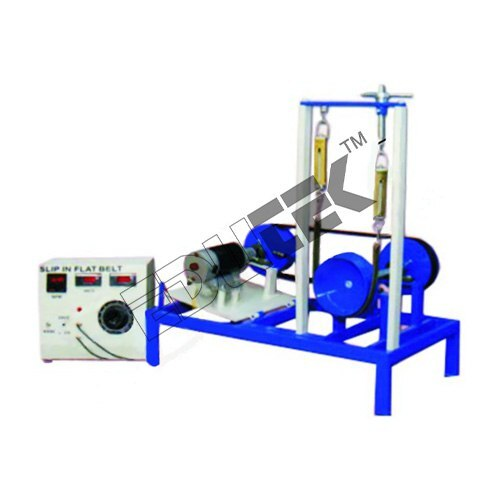

We are engaged in offering a widearray of Slip and Creep Measurement Apparatus for measure co-efficient offriction between pulley material and different belt materials.

To measure belt slip speed andobserve the limited value of load constant speed when the slip just starts. Themotor speed is varied by Thyristor Control D.C. Drive.

A double channel digital speedindicator indicates driving and driven pulley speeds.

With the help of Stroboscope (not inthe scope of supply) it is possible to demonstrate the slip of belt on drivingand driven pulley.

Used in major experimentalapplications, this range is inclusive of very salient features.

Scope of Experimentation:

To measure co-efficient of frictionbetween pulley material and different belt materials

To measure power transmitted withvaried belt tension

To measure percentage slip at fixedbelt tension by varying load on the Brake drum and plot the graph of v/spercentage slip i.e. Slip Characteristics Finding a Creep Zone from graph

To measure belt slip speed andobserve the limiting value of load at constant speed when the slip just starts

To study creep of belt

Utilities Required:

Electricity: 0.5 kW, 220 V, SinglePhase

Stroboscope

Technical Details:

Motor Variable speed DC Motor 1HP,1500 RPM

Pulleys Driving and driven pulleys ofequal diameters (flat pulleys)

Loading Arrangement Brake drum alongwith spring balance and rope arrangement is provided to load the system

Belts Flat belts of fixed length offollowing belt material like Fabric Belt, Canvas Belt, Leather Belt

Belt tightening arrangement Bearingblock is sliding and dead weight can be applied to set the initial tension inbelt

Speed Indicator 2 Channel digitalspeed indicator with switch to change the channel
