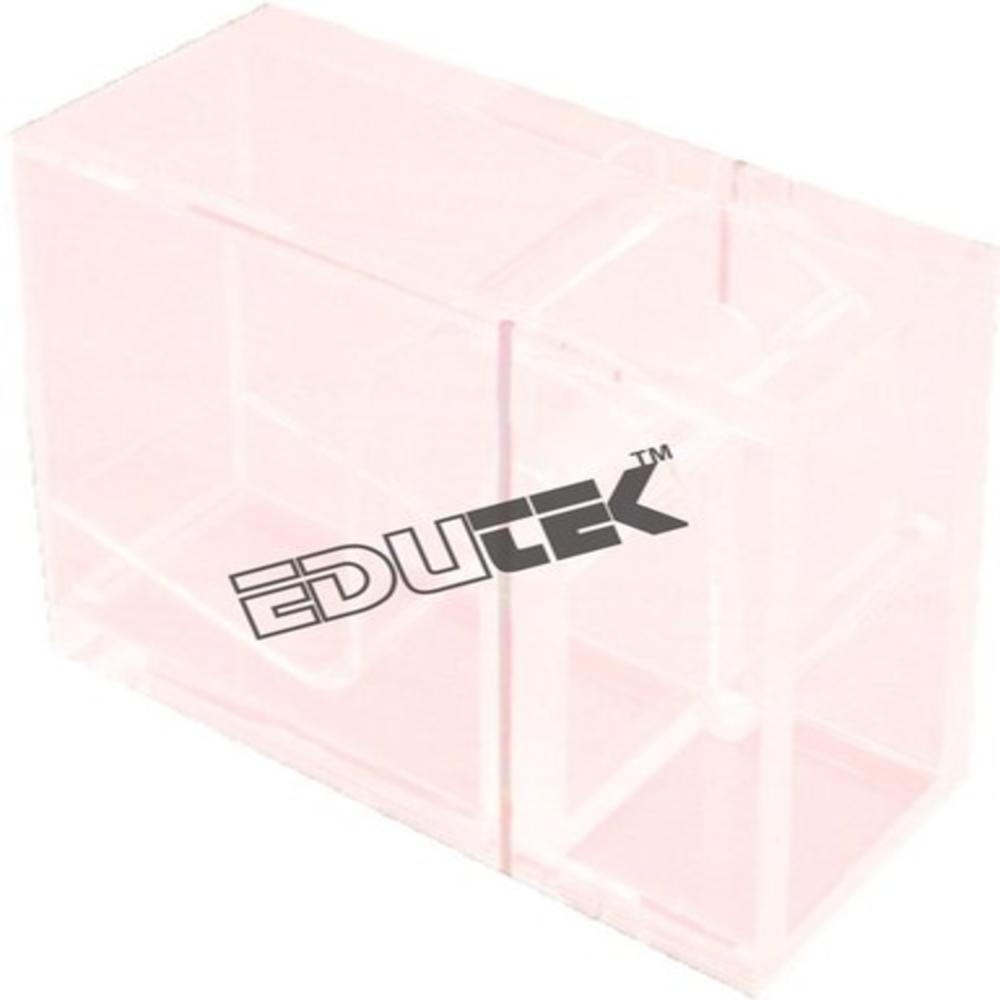

Siphon Spillway

Get a Price/Quote

MOQ : 1 Piece

Siphon Spillway Specification

Dimension (L*W*H)
299x360x350 Millimeter (mm)

Measurement Range
Varies with water head

Temperature Range
Ambient

Feature
Transparent construction for visual observation; Demonstration-ready laboratory equipment

Model No
Custom model as per order

Accuracy
High repeatability in spillway function

Automation Grade
Manual

Capacity
Customizable based on design requirements

Power Source
None (operates by water flow)

Core Components
Siphon tube, spillway chamber

Material
plexiglass

Equipment Materials
plexiglass

Type
Siphon Spillway

Usage
Hydraulic laboratory model for demonstrating siphon spillway operation

Weight
Depends on model size

Safety Features
Smooth edges, stable base

Flow Control
Manual regulation of inlet flow

Customizable Features
Yes, as per client requirements

Durability
Corrosion-resistant, waterproof and easy to clean

Application
Engineering education, research, water flow demonstration

Sample Collection Ports
Available (optional customization)

Installation
Benchtop

Color
Transparent

About Siphon Spillway

SIPHON SPILLWAY

Made of transparent plexiglass, 3mm thickness,
Dimensions 100x216x287h,
Support made of black anodized aluminum, designed for,
Installation on sliding trolleys on the channel,
Overall dimensions: 299x360x350h mm.

Visual Clarity for Hydraulic Analysis

Constructed with transparent plexiglass, the siphon spillway enables real-time visual observation of water flow patterns and operational behavior. Its clear design enhances teaching and research by allowing detailed study of spillway mechanisms, making it invaluable for both demonstration and investigation in laboratory settings.

Manual Flow Control for Precise Demonstration

Inlet flow through the spillway is controlled manually, allowing users to easily adjust parameters during experiments. This hands-on approach benefits engineering students and researchers, facilitating thorough understanding of fluid dynamics and siphon processes under variable conditions.

FAQs of Siphon Spillway:

Q: How is the transparent siphon spillway installed and used in a laboratory setting?

A: The siphon spillway is designed for benchtop installation. Users simply place it on a stable surface, connect it to a water supply, and manually regulate the inlet flow for demonstration and analysis. Its stable base and smooth edges support safe and convenient usage.

Q: What materials and safety features does the spillway model include?

A: The model is constructed from waterproof, corrosion-resistant plexiglass. It includes safety features such as smooth edges and a stable base to prevent accidents, and its transparent construction allows for visual monitoring of the water flow.

Q: When should the siphon spillway be used for educational or research purposes?

A: This apparatus is ideal for teaching fluid mechanics, demonstrating siphon spillway operations, or conducting engineering research where controlled water flow scenarios are required. It offers high repeatability, making it suitable for repeated experiments or classroom demonstrations.

Q: Where can optional sample collection ports and custom designs be incorporated into the model?

A: Sample collection ports and other features can be included as optional customizations based on client requirements prior to order placement. Customizable elements allow adaptation to specific laboratory or research needs.

Q: What are the core components of the siphon spillway model?

A: The key components include a siphon tube and spillway chamber, all made from transparent plexiglass to ensure durability and facilitate visual study. Additional features may be customized as per user requirements.

Q: How does manual regulation of inlet flow benefit demonstration accuracy?

A: Manual control allows precise adjustment of water levels and flow rates. This enables users to effectively illustrate and analyze siphon spillway operation, leading to high accuracy and repeatability in hydraulic demonstrations.

Q: What advantages does the transparent construction offer for engineering education?

A: Transparent construction enhances understanding by providing direct visual access to internal flow processes. This feature promotes interactive learning and supports observation of practical hydraulic phenomena during teaching or research.
