SIEVEPLATE DISTILLATION COLUMN APPARATUS

Having extensive knowledge and richunderstanding of the market, we are able to manufacture and export a premiumrange of Sieve Plate Distillation Column.

Made and designed using qualitystainless steel with seven sieve trays, these columns are used fordemonstrating the principles of distillation in a sieve plate.

Our Sieve Plate Distillation Columnis best known for numerous quality features such as simple operation, lessmaintenance and compact design.

We adhere to the parameters of thenational and international quality standards to provide the clients with utmostsatisfaction in terms of quality.

Features:

Ruggedness

Lightweight

Longer service life

Further Details:

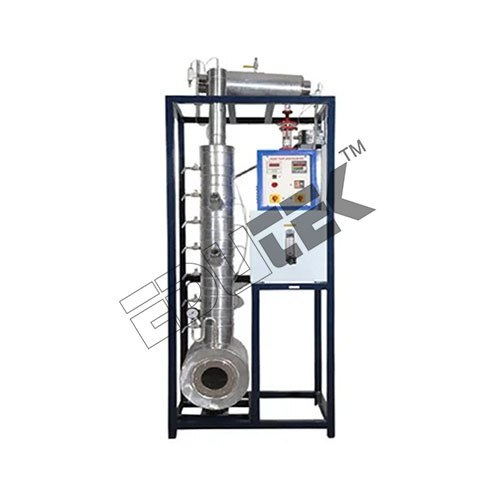

The setup is designed to demonstrateprinciples of distillation in a Sieve Plate Column. The column is made ofStainless Steel material with seven sieve trays. An electrically heatedre-boiler is installed at the bottom of the column. The bottom product iscollected in the tank.

The vapors form the top of column arecondensed in the shell and tube type condenser by circulating cooling watersupplied by laboratory overhead tank. The condensate is divided into reflux& distillate and R/D Ratio can be varied.

Reflux is fed back to the column anddistillate is received in a receiving tank.

The complete column is insulated forminimizing the heat loss.

Instrumentation is done for pressure& temp.

Measurement wherever is necessary.

Experiments:

To study the Sieve Plate DistillationColumn

Features:

Stainless Steel tanks and wettedparts

Superb Painted structure

Simple to operate & maintain

Compact & standalone set up

Utilities Required:

Water Supply 2 LPM at 5 m head

Drain

Electricity Supply:

1Phase, 220 V AC, 6.5 kW

Required Chemicals

Refractrometer for analysis

Technical Details:

Distillation Column MaterialStainless Steel Dia 100 mm

Packing Material Sieve plates sevennos.

Rota meter For cooling water flowrate measurement.

Re-boiler Made of Stainless Steel,provided with Pressure gauge (Bourdon type, 0-2kg/cm2) & Level Gauge.Safety valve  & insulated withceramic wool

Condenser Shell & Tube Type madeof Stainless Steel.

Collection Tank Distillate &bottom product capacity 5 Ltrs. each

Heaters Nichrome wire heater

Piping PVC/SS, Temp. Sensors RTDPT-100 type, Control panel

Digital Temp. Controller:0-199.9degC, For Steam Re boiler Digital Temp. Indicator: 0-199.9degC. ,withmulti-channel switch On/off switch, Mains Indicator etc.

Optional Utility Extra Refractrometer
