SHEAR CENTRE APPARATUS

Price 2000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

SHEAR CENTRE APPARATUS Specification

Usage
Mechanical Engineering Lab Equipment

Accuracy
99.9 %

Material
MS

Frequency
50 Hertz (HZ)

Product Type
SHEAR CENTRE APPARATUS

Warranty
1 YEAR

Application
Mechanical Engineering Lab Equipment

Power
220 Volt (v)

Equipment Materials
MS

Type
Shear Centre Apparatus.

SHEAR CENTRE APPARATUS Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash on Delivery (COD), Cash Advance (CA), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C)

Packaging Details
Carton Box, Export Quality also Available

Main Export Market(s)
Middle East, Asia, Africa

Main Domestic Market
All India

Certifications
ISO 9001, 14001, CE

About SHEAR CENTRE APPARATUS

Specification:

SHEAR CENTRE APPARATUS

We have range of high-quality Shear Centre Apparatus (Structural Engineering Trusses Apparatus) with us. Such as:

Shear Centre Apparatus.

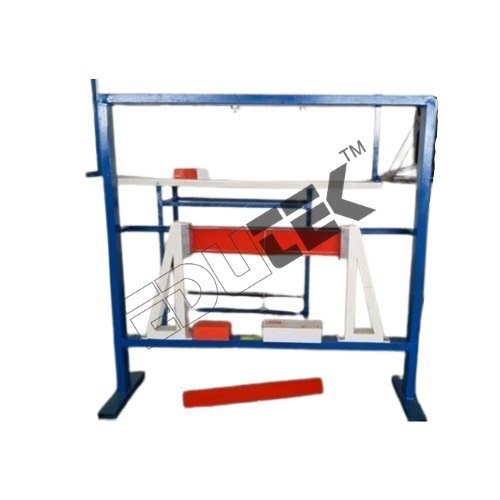

Apparatus consists of sturdy base frame and Channel, Equal angle; Semicircle and Z-Section are supplied with apparatus.

Standard length of each of the four sections in M. S. is supplied.

Each is provided with end clamp for fixing to the rigid bracket.

A special load hanger is provided so as to change the load position so that with the help of two dial-gauges, the vertical plane of Shear-centre for the particular section can be determined.

Accurate Measurement of Shear Centre

This apparatus allows you to accurately find the shear centre of different open sections, a crucial concept in mechanical and structural engineering. By enabling hands-on experiments, it bridges the gap between theoretical knowledge and practical understanding for students and researchers alike.

Robust Construction for Long-Term Use

Built from high-quality mild steel (MS), the Shear Centre Apparatus is engineered for durability and consistent performance. Its sturdy design guarantees long service life in busy labs, with minimal maintenance requirements. Users benefit from reliable operation under frequent use.

FAQ's of SHEAR CENTRE APPARATUS:

Q: How does the Shear Centre Apparatus function in a mechanical engineering lab?

A: The apparatus enables users to experimentally determine the shear centre of various structural sections by applying loads and measuring resulting deformations. This process helps students observe shear behaviour and validate theoretical predictions through direct experiment.

Q: What benefits does using the Shear Centre Apparatus provide in engineering education?

A: It offers students hands-on experience with real-world structural problems, enhancing understanding of shear forces and moments. The high 99.9% accuracy ensures that the experimental results closely match theoretical calculations, deepening learning outcomes.

Q: When should the Shear Centre Apparatus be used?

A: This apparatus is ideal for use during laboratory sessions in mechanical engineering courses focused on structural mechanics, especially when studying the shear centre concept in beams and open sections. It's also suitable for research and advanced studies.

Q: Where is the Shear Centre Apparatus commonly installed and used?

A: It is primarily used in mechanical engineering laboratories at educational institutions, research centers, and testing facilities in India and globally. As a key instructional tool, it supports practical curriculum requirements in structural analysis.

Q: What is the process for setting up and operating the Shear Centre Apparatus?

A: Setup involves securely mounting the apparatus, connecting it to a 220 Volt power source, and selecting the required structural section sample. After calibrating the apparatus, loads are applied as per the experimental plan and results are recorded for analysis.

Q: How reliable and accurate are the test results from the Shear Centre Apparatus?

A: With an accuracy rating of 99.9% and a robust mild steel construction, the apparatus delivers highly consistent and trustworthy measurements. This precision supports both qualitative and quantitative structural analysis in an educational or research setting.

Q: What warranty and support are available for the Shear Centre Apparatus?

A: Manufacturers and suppliers typically provide a 1-year warranty, covering manufacturing defects or operational issues. After-sales support services include troubleshooting, maintenance guidance, and spare parts supply as required.
