SCR CHARACTERISTICS APPARATUS WITH ALUMINUM PANEL & SQUARE METERS

Name: SCR CHARACTERISTICS APPARATUS WITH ALUMINUM PANEL & SQUARE METERS
Brand: EDUTEK INSTRUMENTATION
Price: 2400.0 INR
Availability: InStock

Price 2400.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

SCR CHARACTERISTICS APPARATUS WITH ALUMINUM PANEL & SQUARE METERS Specification

Usage
ENGINEERING ELECTRONICS INSTRUMENTS

Product Type
SCR CHARACTERISTICS APPARATUS WITH ALUMINUM PANEL & SQUARE METERS

Application
ENGINEERING ELECTRONICS INSTRUMENTS

Function
SCR CHARACTERISTICS APPARATUS WITH ALUMINUM PANEL & SQUARE METERS

Warranty
1 Year

Features

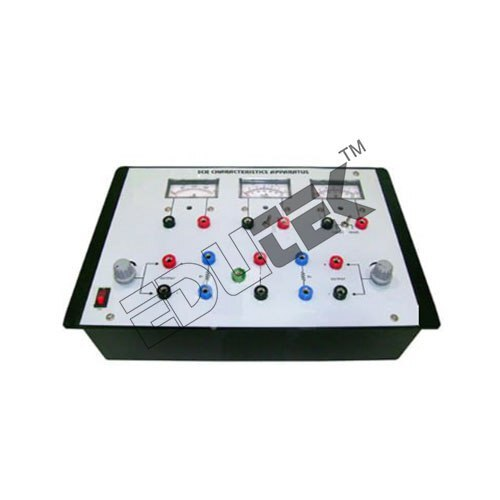

SCR CHARACTERISTICS APPARATUS WITH ALUMINUM PANEL & SQUARE METERS It has an inbuilt variable DC-regulated power supply with an output voltage range of 0-30V DC. The setup includes on-board analog moving coil meters that can measure both voltage and current. The voltmeter has a dual range of 0-1.2V/0-30V, while the ammeter has a dual range of 0-200uA DC and 0-1.2mA/0-30mA.An SCR of 2P4M will be used for the experiment. The entire setup will be enclosed in a lightweight and shock-proof plastic cabinet.

SCR CHARACTERISTICS APPARATUS WITH ALUMINUM PANEL & SQUARE METERS Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash on Delivery (COD), Cash Advance (CA), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C)

Packaging Details
Carton Box, Export Quality also Available

Main Export Market(s)
Africa, Asia, Middle East

Main Domestic Market
All India

Certifications
ISO 9001, 14001, CE

About SCR CHARACTERISTICS APPARATUS WITH ALUMINUM PANEL & SQUARE METERS

Specification:

SCR CHARACTERISTICS APPARATUS WITH ALUMINUM PANEL & SQUARE METERS

It has an inbuilt variable DC-regulated power supply with an output voltage range of

0-30V DC.

The setup includes on-board analog moving coil meters that can measure both voltage and current.

The voltmeter has a dual range of 0-1.2V/0-30V, while the ammeter has a dual range of 0-200uA DC and 0-1.2mA/0-30mA.An SCR of 2P4M will be used for the experiment.

The entire setup will be enclosed in a lightweight and shock-proof plastic cabinet.

Comprehensive SCR Study Setup

This apparatus enables a detailed examination of SCR characteristics, ideal for electronics engineering laboratories. Its variable power supply and onboard meters facilitate quick and precise data collection during experiments. Housed in a shock-proof, lightweight cabinet, the device ensures safety and portability for routine academic use.

Ease of Operation and Versatility

Designed for engineering students and professionals, the apparatus supports a range of practical experiments. Dual-range meters and a standard SCR (2P4M) provide flexibility for different test conditions. The intuitive layout ensures straightforward operation, even for those new to semiconductor experiments.
