Safety Devices Training Panel
50.0 INR/Piece
Product Details:
- Weight 105 Kilograms (kg)
- Accuracy 100 %
- Feature Highly Efficient
- Dimension (L*W*H) 1660x700x1850 Millimeter (mm)
- Type SAFETY DEVICES TRAINING PANEL
- Usage Laboratory
- Click to View more
X
Safety Devices Training Panel Price And Quantity
- 1 Piece
- 50.0 INR/Piece
Safety Devices Training Panel Product Specifications
- Laboratory
- 105 Kilograms (kg)
- 100 %
- Highly Efficient
- SAFETY DEVICES TRAINING PANEL
- 1660x700x1850 Millimeter (mm)
Product Description
SAFETY DEVICES TRAINING PANEL

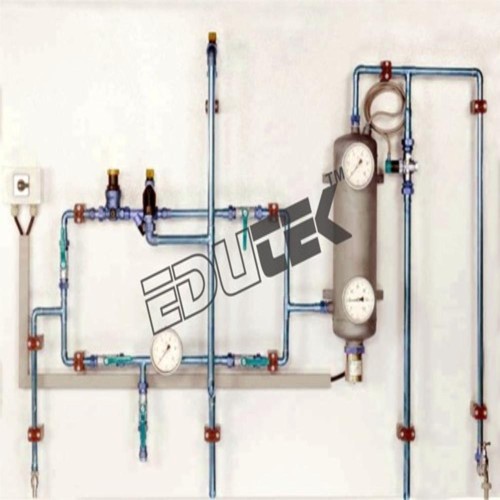

An electrically heated pressure vessel is mounted on the panel of the trainer. The vessel can be filled via different pipe sections. One pipe section is equipped with a system of safety devices for protecting a sealed water heater. The pressure vessel is also equipped with a thermal discharge safety device that discharges to a blow-off pipe.
When the pressure or temperature level set is exceeded, the safety devices are tripped. Pressure and temperature in the system are displayed.
Learning Objectives / Experiments
- Function of safety valves
- Function and layout of a system of safety devices
- Function of a thermal discharge safety device
Specification
- Trainer on heating systems and plumbing
- Pressure vessel
- Threaded heater element with switch cabinet
- 2 spring tube manometers
- 1 bimetallic dial thermometer
- Thermal discharge safety device
- 1 system of safety devices with pressure reducing valve, shut-off valve, test connections and non-return valve, manometer connection and safety valve
- 2 blow-off lines, 1 filler pipe, 1 drain
Technical Data
- Pressure vessel made of steel (1.4541)
- volume: approx. 5L
- Max. operating pressure: 7,8bar
Threaded heater element
- Power: 3kW
- Protective system: IP 65
- Thermal discharge safety device: actuated at 95°C
- Setting range of pressure reducing valve: 1,5...6bar
Measuring ranges
- Pressure: 0...10bar
- Temperature: 0...120°C
Dimensions and Weight
- LxWxH: 1660x700x1850mm
- Weight: approx. 105kg
