ROTARY VACUUM FILTER APPARATUS

About ROTARY VACUUM FILTER APPARATUS

Specification:

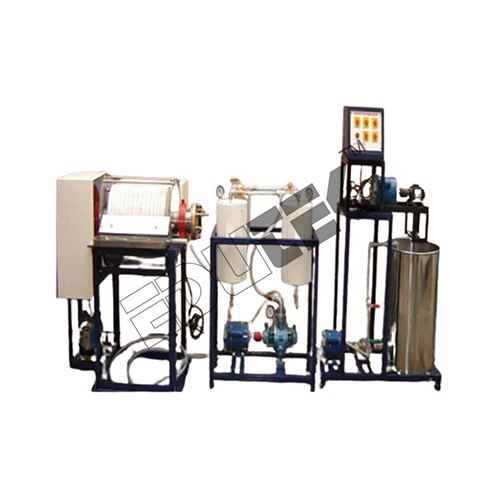

ROTARY VACUUM FILTER APPARATUS

The most common types of continuous vacuum filter are the rotary drum filter. A horizontal drum with a slotted face turns at less than 2 rpm in an agitated slurry trough. A filter medium, such as canvas, covers the face of drum, which is partly submerged in the liquid. Under the slotted cylindrical face of the main drum is a second, smaller drum with a solid surface.

Between the two drums are radial partitions dividing the annular space into separate compartments, each connected by an internal pipe to one hole in the rotating plate of the rotary valve vacuum and air are alternately applied to each compartment as the drum rotates. The set-up consists of stainless steel drum moving in gun metal brackets and is divided in 6 compartments, covered by a stainless steel mesh.

A canvas filter is used for filtration. The whole assembly is fitted with a ss trough in which a agitator is provided. To make the unit a self-contained a slurry mixing and feed arrangement, receiver tanks, vacuum pump, control panel are provided.

Experimentation:

To study the performance of a rotary vacuum filter

To study the operation of rotary vacuum filter under vacuum

To determine the specific cake resistance and medium resistance

Utilities Required:

Water Supply

Drain

Slurry Required To PerformingExperiment

Technical Details:

Mesh: material stainless steel

Filter: canvas cloth

No. Of zones: 6 nos

Drive for drum: fhp motor coupled to a reduction gear box

Trough: material stainless steel, compatible capacity

Trough agitator: material stainless steel, driven by fhp motor with reduction gearbox

Slurry tank: stainless steel, capacity 75ltrs

Slurry pump: gear pump with hp motor

Slurry tank agitator: stainless steel impeller with ss shaft coupled to fhp motor and reduction gear box

Filtrate receiver: material stainless steel, capacity 10ltrs. (2 nos.)

Vacuum pump: liquid ring type coupled to a 1 hp motor
