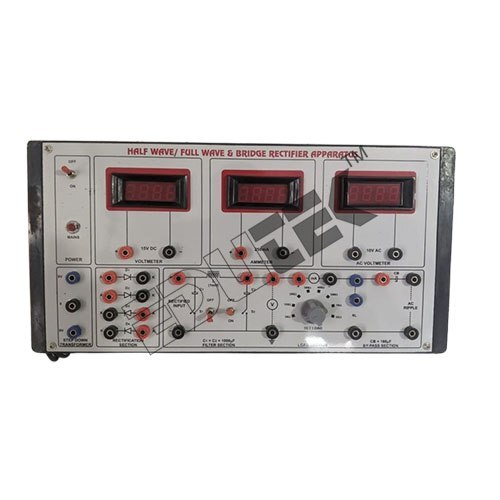

RIPPLE FACTOR APPARATUS WITH ALUMINUM PANEL & DIGITAL PANEL METERS (HALF WAVE, FULL WAVE AND BRIDGE RECTIFIER)

Send Inquiry

Request To Call Back

RIPPLE FACTOR APPARATUS WITH ALUMINUM PANEL & DIGITAL PANEL METERS (HALF WAVE, FULL WAVE AND BRIDGE RECTIFIER)

Name: RIPPLE FACTOR APPARATUS WITH ALUMINUM PANEL & DIGITAL PANEL METERS (HALF WAVE, FULL WAVE AND BRIDGE RECTIFIER)
Brand: EDUTEK INSTRUMENTATION
Price: 1200.0 INR
Availability: InStock

Price 1200.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

RIPPLE FACTOR APPARATUS WITH ALUMINUM PANEL & DIGITAL PANEL METERS (HALF WAVE, FULL WAVE AND BRIDGE RECTIFIER) Specification

Power Source
Mains AC supply

Power Supply
230V 10% AC, 50Hz

Response Time
Digital meters: <1 sec

Usage
ENGINEERING ELECTRONICS INSTRUMENTS

Interface
Front panel test points and digital display

Output
Variable DC output through rectifier circuits

Components
Half wave, full wave, bridge rectifier circuits, resistive load, filter capacitors

Input
230V AC mains

Operating Temperature
0C to 40C

IP Rating
Not specified (laboratory indoor use)

Features
Durable aluminum panel, modular layout, digital readout, easy to operate, educational use

Display Type
Digital panel meters (voltmeter and ammeter)

Resolution
Digital meter resolution: typically 0.01V/0.01A

Product Type
RIPPLE FACTOR APPARATUS WITH ALUMINUM PANEL & DIGITAL PANEL METERS (HALF WAVE, FULL WAVE AND BRIDGE RECTIFIER)

Application
ENGINEERING ELECTRONICS INSTRUMENTS

Rated Voltage
230V AC

Supply Voltage
230V AC, 50Hz

Size
Desktop apparatus

Dimension (L*W*H)
320mm x 220mm x 100mm (approx.)

Function
Measurement of ripple factor for Half Wave, Full Wave, and Bridge Rectifier circuits

Color
White/Blue (as per image: aluminum panel finish)

Weight
Approx. 4 kg

Current Rating
Up to 1A (depends on load configuration)

Thickness
Aluminum panel approx. 3 mm

Capacity
Designed for lab demonstration loads

Frequency
50Hz

Environmental Compliance
RoHS compliant build (where applicable)

Maintenance
Minimal; regular calibration of meters recommended

Meter Type
Digital LED/LCD type

Capacitor Bank
Included for filter experiments (typical values: 10uF, 47uF)

Output Test Points
4mm banana sockets for easy measurement access

Safety Standards
Built as per standard electrical lab safety norms

Fuse Protection
Built-in panel fuse for safety

Accessories Included
User manual, connecting leads

Input Isolation
Transformer isolated input for equipment and operator safety

Panel Markings
Clear schematic and circuit labeling silk-screened on panel

Digital Meter Power
Internally powered from main supply

Load Options
Fixed resistive load switchable on panel

Construction
High quality aluminum panel with powder-coated enclosure

Rectifier Type
Half Wave, Full Wave, and Bridge Rectifier all in one apparatus

Internal Wiring
High-grade insulated copper wire

RIPPLE FACTOR APPARATUS WITH ALUMINUM PANEL & DIGITAL PANEL METERS (HALF WAVE, FULL WAVE AND BRIDGE RECTIFIER) Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash on Delivery (COD), Cash Advance (CA), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C)

Packaging Details
Carton Box, Export Quality also Available

Main Export Market(s)
Asia, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001, 14001, CE

About RIPPLE FACTOR APPARATUS WITH ALUMINUM PANEL & DIGITAL PANEL METERS (HALF WAVE, FULL WAVE AND BRIDGE RECTIFIER)

Specification:

RIPPLE FACTOR APPARATUS WITH ALUMINUM PANEL & DIGITAL PANEL METERS (HALF WAVE, FULL WAVE AND BRIDGE RECTIFIER)

Objective: To study the Efficiency and Ripple factor in the case of half wave, Full wave, and Bridge rectifiers on the application of load and filters.

Features:

The instrument comprises of AC Power Supply, 3 meters to measure Output Voltage, Output Current, and ripple factor on an electronic AC Voltmeter, 4 PN Junction Diodes, a Filter Circuit kit, load Resistances selectable using a band switch, and all important connections point at 4mm Sockets.

Versatile Rectifier Experiments

This apparatus consolidates half wave, full wave, and bridge rectifier circuits within a single panel, allowing seamless study and comparison of each rectifier's characteristics. Its educational design caters to engineering electronics laboratories, providing students with hands-on learning while maintaining operational ease and safety-ideal for practical lessons on ripple factor measurement and filter effectiveness.

Intuitive Digital Measurement

Equipped with digital LED/LCD panel meters, the device ensures accurate voltage and current readings with a fine resolution (typically 0.01V/0.01A). The large, clear displays paired with front panel test points simplify monitoring and data recording, streamlining experiments and minimizing errors often associated with analog devices.

Safety and Quality Construction

Emphasizing operator safety, the apparatus integrates a transformer isolated input, robust built-in fuse, and high-grade insulated wiring. The stylish yet tough aluminum panel (approx. 3 mm thick), powder-coated for durability, features clear silk-screened schematics, making operation straightforward while providing long-term resilience for repeated lab use.

FAQ's of RIPPLE FACTOR APPARATUS WITH ALUMINUM PANEL & DIGITAL PANEL METERS (HALF WAVE, FULL WAVE AND BRIDGE RECTIFIER):

Q: How does the Ripple Factor Apparatus support half wave, full wave, and bridge rectifier experiments?

A: The apparatus includes circuits for half wave, full wave, and bridge rectifier configurations, all on one panel, allowing users to switch between them easily. This enables comprehensive study and measurement of ripple factors for each type without requiring multiple setups.

Q: What types of loads and filter options are available on the panel?

A: Fixed resistive loads can be selected via panel switches, and there is a built-in capacitor bank with typical values of 10uF and 47uF for filter experiments. This allows users to explore the effects of both resistive loads and filter capacitors on rectifier output.

Q: When should digital panel meters be calibrated on this apparatus?

A: Regular calibration is recommended to ensure continued measurement accuracy, especially prior to important experiments or after extensive usage. Calibration procedures are outlined in the provided user manual.

Q: Where can measurements be taken on the apparatus for voltage and current?

A: The panel features 4mm banana socket output test points, clearly labeled for each rectifier type. These allow users to connect laboratory instruments or test leads directly for straightforward and precise measurement.

Q: What safety features are incorporated into the apparatus?

A: Safety is ensured through transformer isolated input, a built-in fuse for panel protection, use of high-grade insulated copper wiring, adherence to standard lab safety norms, and a robust aluminum-panel enclosure, minimizing risks during operation.

Q: How does the apparatus benefit engineering students in laboratory settings?

A: It streamlines the learning process by allowing students to experiment with different rectifier circuits and filtering techniques using real-world hardware, supported by accurate digital measurements and industry-standard safety measures.
