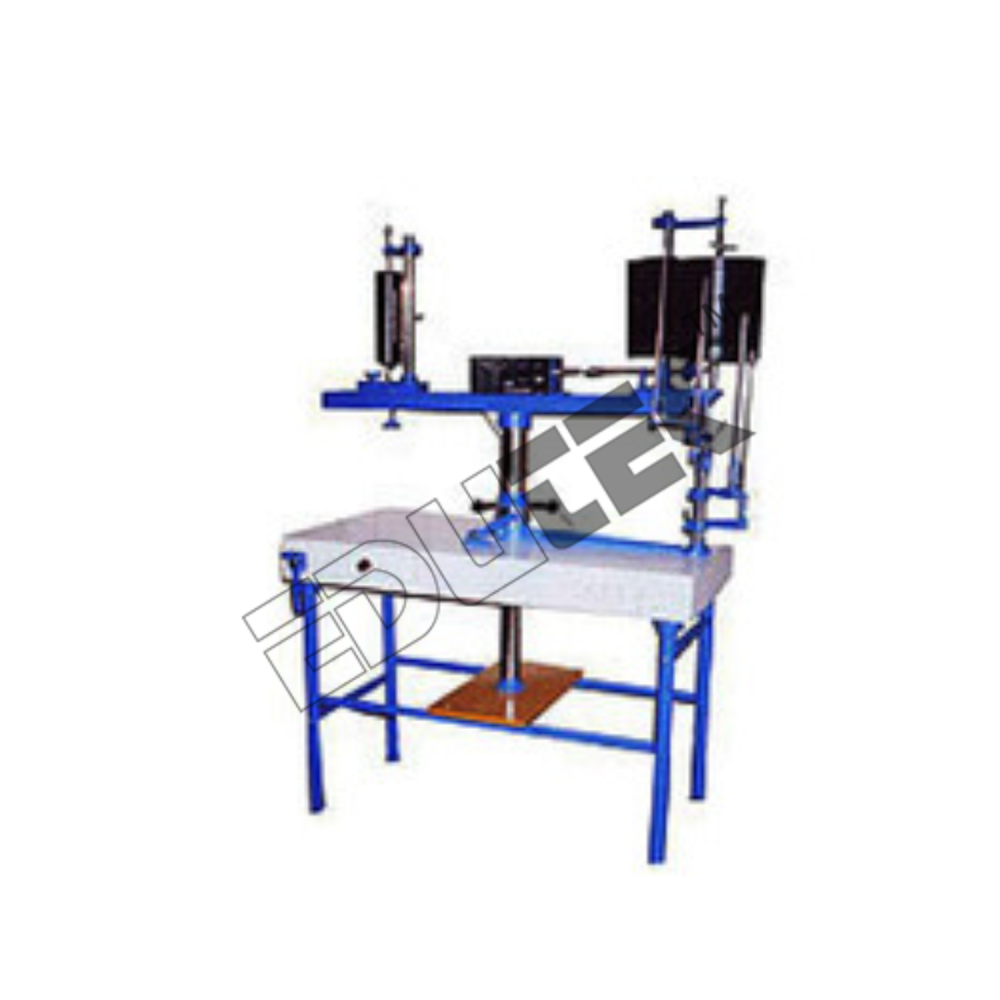

Research Kymograph

Get a Price/Quote

MOQ : 1 Piece

Research Kymograph Specification

Color
Blue and White

Operate Method
Manual and electric drive

Voltage
220-240 V AC, 50/60 Hz

Usage
For studying muscle contraction, blood pressure, and nerve action in physiological labs

Capacity
Single or double drum, 6 or 12 drum size

Power
Electric

Product Type
Research Kymograph

Application
Used for experimental physiology, pharmacology, biological research

Dimension (L*W*H)
500 mm x 150 mm x 250 mm (approx)

Material
Powder coated steel body with stainless steel drum

Weight
Approx. 8-10 kg

Classification
Laboratory Equipment

Timer
Integrated mechanical timer

Accessories
Comes with drive cord, kymograph paper, wiring diagrams

Motor Type
Heavy-duty synchronous motor

Marking Arm
Provided with adjustable marking arm and stand

Speed Control
Multi speed, four steps with clutch arrangement

Drum Material
Polished stainless steel

Base Type
Sturdy rectangular base with anti-slip feet

Drum Speed Range
0.12 mm/sec to 480 mm/sec selectable

Research Kymograph Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C)

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Packaging Details
carton box, export quality also available

Main Export Market(s)
Asia, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001, 14001 ,CE

About Research Kymograph

Research Kymograph : ETPL-231

Range of fine vertical adjustment 15cm.

Close mesh 10 speed gear box, gear ratios 1:2 no. Backlash.

Instantaneous start at all speeds with built in vibration free, noiseless motor,

speed variation from 1 rev. In 25 min. To i rev in ii hours.

Research Kymograph permissible paper length 2. 5 meters, adjustable along

machined 120 cm bed; automatic paper tensioning devices, flat writing surface

attachment 3 jointed arm uprights with fine tangential adjustment, auxiliary

cylinder with fine tilt adjustment to permit equalization of tension at the top &

bottom of the paper, neutralization clutch for immediate start & stop,

centralized electrical points for respiration pump, time clock and operation

table, mounted on heavy metal platform with castora, with manometer & two way time

marker.

Precision in Physiological Research

This kymograph is engineered for accuracy in experimental physiology and pharmacology labs. Its variable speed options and clutch-controlled drive enable researchers to obtain sharp, reliable tracings, making it invaluable for studying muscle, nervous, and vascular dynamics. The polished stainless drum ensures clean paper movement, critical for data fidelity.

User-Friendly Design and Versatility

With both manual and electric drive options, integrated timer, and an easily adjustable marking arm, this kymograph is suitable for a wide range of experiments. Its anti-slip rectangular base provides stability during operation, while the powder-coated steel chassis ensures long-term durability even in demanding laboratory environments.

FAQs of Research Kymograph:

Q: How does the multi-speed function benefit experimental procedures?

A: The multi-speed, four-step control with clutch arrangement allows precise selection of drum rotation speed. This flexibility lets researchers adjust recording speed according to the nature of the physiological event being studied, ensuring accurate and detailed data capture for a variety of experimental needs.

Q: What safety features are included in the kymographs design?

A: The kymograph features a sturdy rectangular base with anti-slip feet, which keeps the device stable during use and reduces the risk of accidental movement. Additionally, the powder-coated steel body and polished drum enhance structural integrity and user safety in laboratory environments.

Q: When should I use the manual versus electric drive option?

A: The manual drive is useful for experiments requiring gentle or precise hand control, while the electric drive is ideal for continuous operation and maintaining consistent speeds during longer recording sessions. Researchers can choose the drive method that best matches their experiments requirements.

Q: Where is this kymograph most commonly used?

A: This instrument is typically used in physiological laboratories within universities, research institutions, and pharmaceutical environments. It supports experimental studies in muscle dynamics, blood pressure monitoring, and nerve action investigations.

Q: What is the process for setting up the adjustable marking arm?

A: The included marking arm and stand are designed for easy setup. Simply position the arm at the required height and angle to trace physiological responses on the kymograph paper. Adjustment knobs allow for fine-tuning, ensuring precise recording according to experimental protocols.

Q: How does the integrated mechanical timer aid in experiments?

A: The mechanical timer allows researchers to accurately track the duration of experiments and synchronize the marking of events during physiological recordings. This integration ensures more reliable data and better reproducibility of experimental results.
