Refrigeration System With Two-Stage Compression

Send Inquiry

Request To Call Back

Refrigeration System With Two-Stage Compression

Get a Price/Quote

MOQ : 1 Unit

Refrigeration System With Two-Stage Compression Specification

Core Components
Two-stage compressor, evaporator, condenser, expansion valves, receiver, digital controllers

Measurement Range
-40 to +50 C

Model No
RSTS-200

Power Source
Electric

Accuracy
1 C temperature measurement °C

Warranty
1 Year

Automation Grade
Semi-automatic

Capacity
1 Ton to 5 Tons (multiple options available) Ton

Voltage
220 V Volt (v)

Frequency
50 Hz Hertz (HZ)

Temperature Range
-40 C to +10 C (adjustable) Celsius (oC)

Feature
Two-stage vapor compression, temperature and pressure sensors, transparent panel for observation

Equipment Materials
Mild Steel powder coated frame, Copper tubing, Stainless Steel reservoir

Type
Educational/Demonstration Refrigeration System

Usage
Laboratory, Training, Industrial Demonstration

Display Type
Digital Display for temperature and pressure parameters

Dimension (L*W*H)
1200 mm x 600 mm x 1200 mm Millimeter (mm)

Weight
Approx. 80 kg Kilograms (kg)

Cooling Medium
CFC/HCFC Free Refrigerant (R134a, R404a)

Compressor Type
Hermetically sealed dual-stage

Applications
Vocational training, research and development

Condenser Type
Air cooled finned-tube condenser

Evaporator Type
Standard immersion coil

Safety Features
Overload protection, low pressure cut-out

Color
Blue & White standard finish

Data Acquisition
Built-in USB port for data logs

Control Panel
Integrated with ON/OFF switch, indicator lamps

Refrigeration System With Two-Stage Compression Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C)

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Packaging Details
carton box, export quality also available

Main Export Market(s)
Asia, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001, 14001 ,CE

About Refrigeration System With Two-Stage Compression

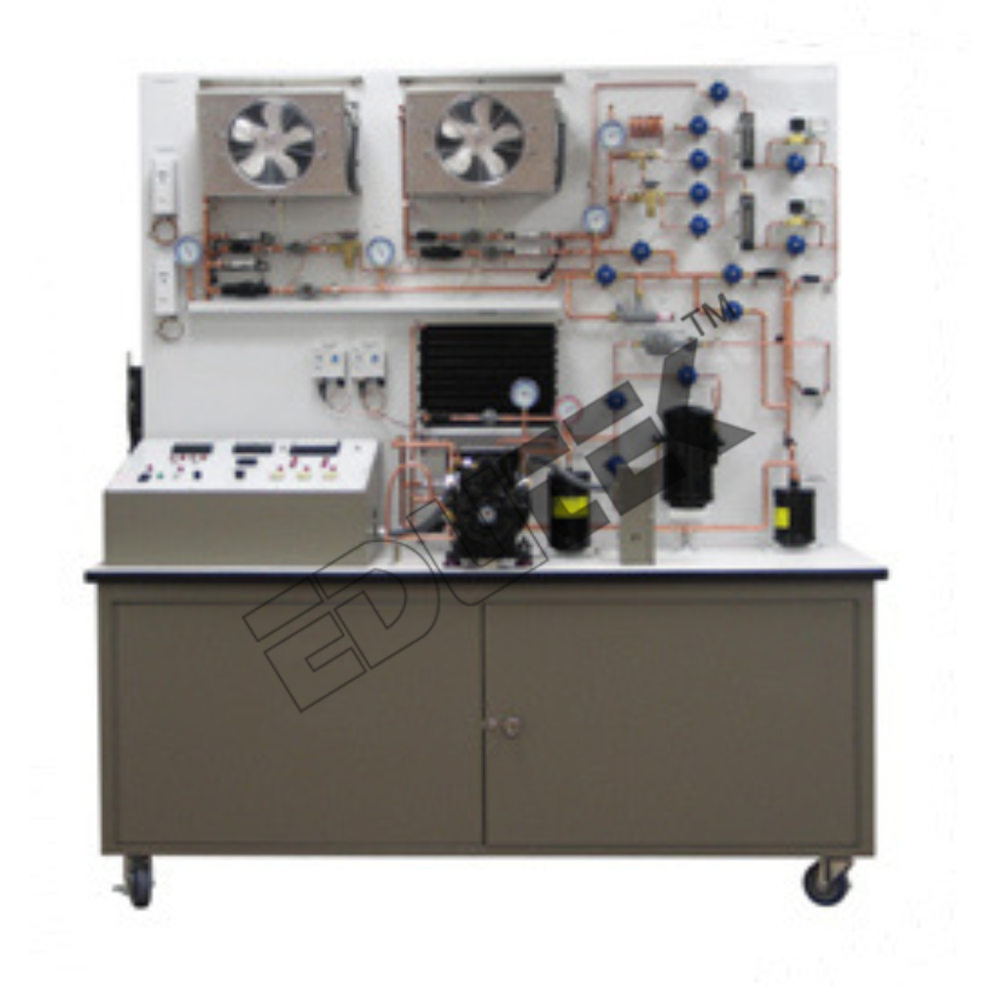

REFRIGERATION SYSTEM WITH TWO-STAGE COMPRESSION

Compression refrigeration system with two-stage compression to achieve particularly low temperatures.
The two compressors are connected in series, with each compressor only having a relatively low pressure ratio.
The unit represents the refrigeration cycle process in the p-h diagram.
The unit contains hermetic low and high pressure compressors and adjustable intercooling via refrigerant injection
Heat exchange for additional super-cooling of the liquid refrigerant closed refrigeration chamber contains evaporator with fan and adjustable electric heater as cooling load
Digital display for temperatures, drive power of the compressors and cooling load power
Power consumption: about 550W
Refrigeration capacity: 1700W at -10C'
230V, 60Hz, 1 phase
Unit complete with all required accessories.

Innovative Two-Stage Compression Technology

By utilizing a hermetically sealed dual-stage compressor, this system achieves higher efficiency and superior cooling across its temperature range. Two-stage compression reduces the workload per stage, improving reliability and lowering operation costs.

Eco-Friendly Refrigerants and Safety Assurance

The use of CFC/HCFC-free refrigerants (R134a, R404a) minimizes environmental impact while integrated overload protection and low-pressure cut-out enhance operational safety.

Comprehensive Data Acquisition and Digital Monitoring

A built-in USB port allows users to log critical data for analysis, while the digital display provides real-time readings of temperature and pressure, supporting advanced research and educational needs.

FAQs of Refrigeration System With Two-Stage Compression:

Q: How does the two-stage compression enhance the refrigeration systems performance?

A: The two-stage compression process divides the task of compressing refrigerant into two phases, which improves efficiency, results in lower energy consumption, and allows the system to achieve and maintain very low temperatures with better stability.

Q: What type of compressor is used in this system and why?

A: This system utilizes a hermetically sealed dual-stage compressor. Its sealed design prevents refrigerant leaks and extends the compressors service life, while the dual-stage mechanism ensures efficient cooling over a wide temperature range.

Q: When should the built-in USB data logging feature be used?

A: The USB data logging function is especially beneficial during experimental setups, training sessions, or long-term monitoring when detailed analysis of operational parameters like temperature and pressure is required.

Q: Where is this refrigeration system typically used?

A: Common applications include vocational training institutes, R&D laboratories, and industrial demonstration environments where hands-on learning or precise cooling control is essential.

Q: What safety features are integrated into the unit?

A: Overload protection and a low pressure cut-out are built in to prevent damage to the compressor and other components, ensuring safe operation even under demanding laboratory or demonstration conditions.

Q: How do users benefit from the transparent observation panel and digital display?

A: The transparent panel allows direct visualization of the refrigeration process, which assists in teaching and troubleshooting, while the digital display offers clear, accurate monitoring of system temperature and pressure for enhanced control.

Q: What is the process for adjusting the temperature range?

A: Temperature adjustment is managed via the integrated control panel, which provides digital setting and monitoring. Users can set desired values within the -40C to +10C range and view real-time changes on the display.
